Kingtech 10.1 inch 800*1280 TFT display
| Item | 10.1 inch IPS 800*1280 tft display |
| Model No. | PV101049T0240Q-CT |
| Resolution | 800*1280/WXGA |

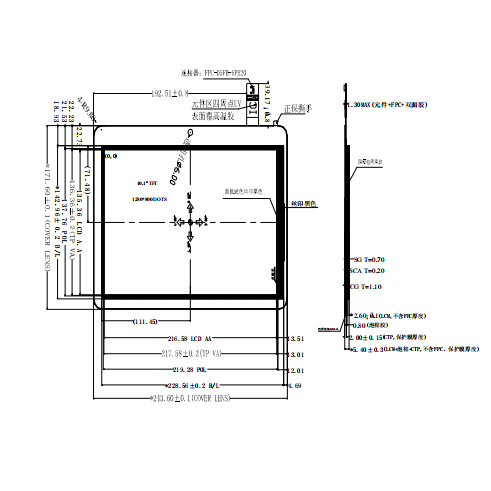

| Outline Dimension (mm) | 171.6*243.6*5.4 |
| Active Area (mm) | 135.36*216.58 |
| Viewing Angle | All |
| Brightness | 250nits |
| Interface | MIPI |
| Backlight | 8*4LED |
| Driving IC | JD9365DA |
| PIN No. | 40 |
| Operating Temperature | -10~60 |
| Storage Temperature | -20~70 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial， |
For product pricing,customization,or other inquiries:
Share to:
- 10.1 inchTFT display
- 800*1280/WXGA
- Stable supply
- All/Full/Wide/IPS viewing angle
- MIPIinterface
- 250nits~1000nits brightness/Sunlight readable/High brightness/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, Hand-held device, Industrial
Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.
To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.
As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
