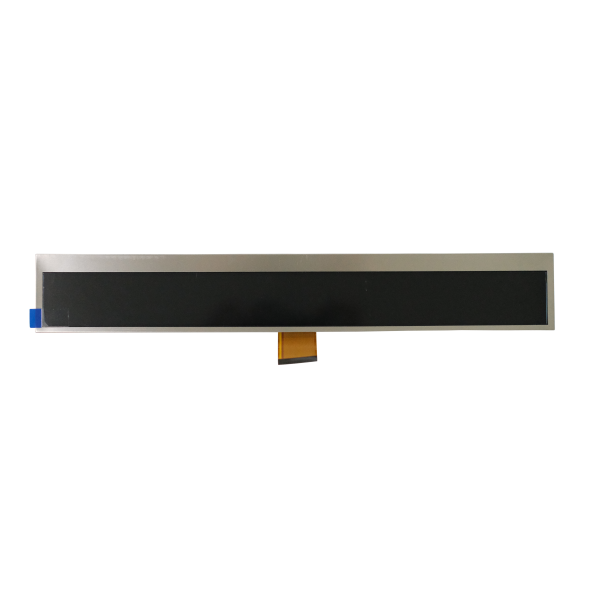

Kingtech 10.4 inch 1024*100 bar type TFT display 1024×100 TFT display module 950 nits brightness

Item	10.4 inch IPS 1024*100 bar type TFT display
Model No.	PV104007R0240H
Resolution	1024*100

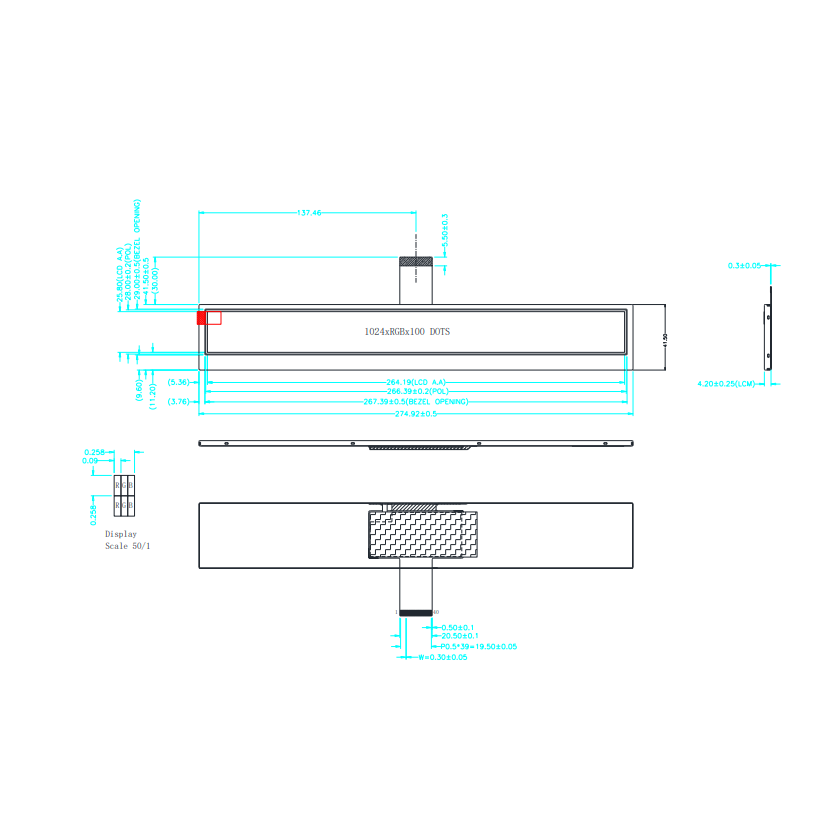

Outline Dimension (mm)	274.92 41.5 3.5
Active Area (mm)	264.192 *25.8
Viewing Angle	All
Brightness	950nits
Interface	TTL(RGB, Digital)
Backlight	6*4LED
Driving IC	/
PIN No.	40
Operating Temperature	-20~70C
Storage Temperature	-30~80C
Touch screen	Can custom resistive and capacitive touch screen
Application	Medical, hand-held device, industrial, E-bike

For product pricing,customization,or other inquiries:

10.4 inchbar type TFT display
1024*100
Stable supply
IPS/Full/Wide/All viewing angle
TTL/RGB/ Digital interface
950nits brightness/Sunlight readable/High brightness/Outdoor
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial

Kingtech 10.4 inch 1024*100 bar type TFT display

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.

Workshop Quality Control
