Kingtech 10.4 inch 800*600 TFT module display

Product Specifications

General Information:

  • Model No.:PV104010D0160L
  • Display Size:4 inches
  • Resolution:800 × 600 pixels (SVGA)
  • Display Mode:TFT / Transmissive
  • Viewing Angle:6 O’clock
  • Brightness:350 nits
  • Contrast Ratio:Optimized for clear and sharp visuals
  • Color Depth:7M colors

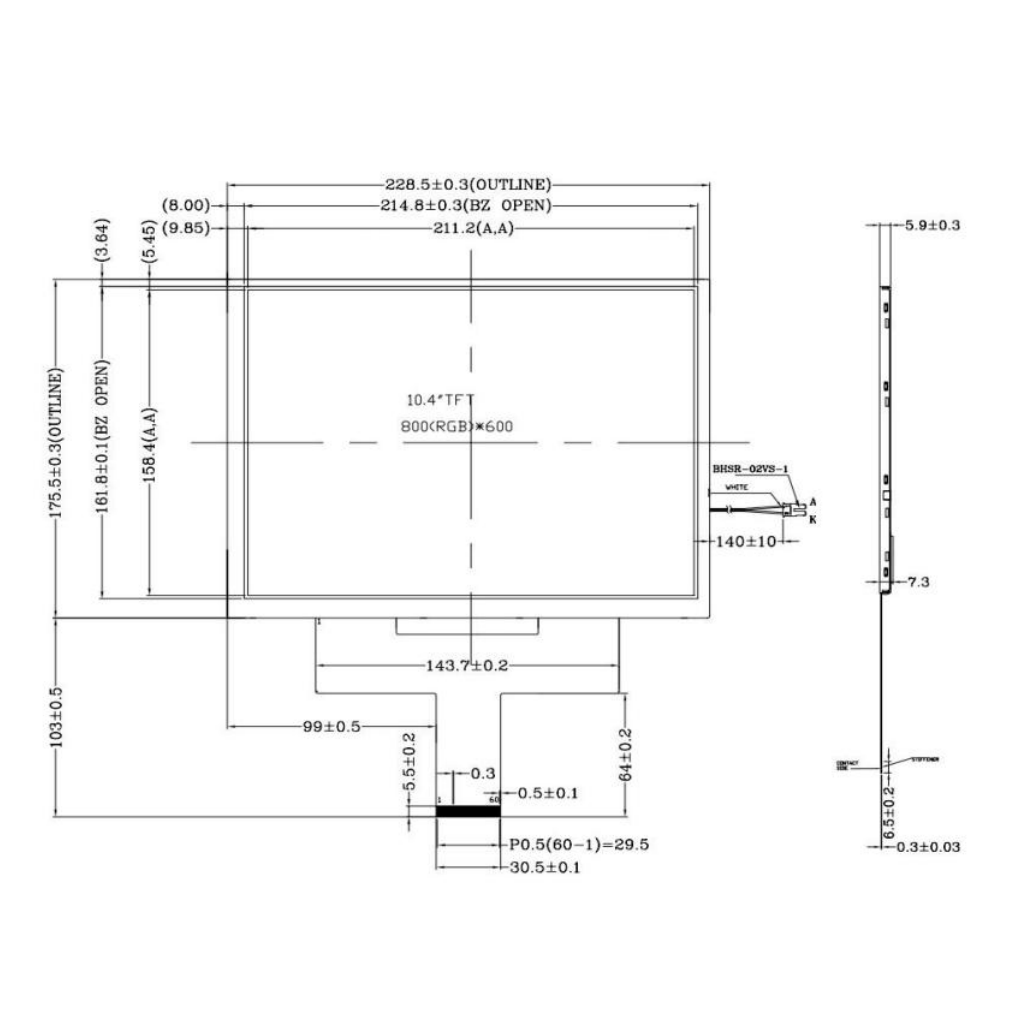

Mechanical Specifications:

  • Outline Dimension:5 mm (W) × 175.5 mm (H) × 5.9 mm (T)
  • Active Area:2 mm (W) × 158.4 mm (H)
  • Bezel Opening:Precisely designed for seamless integration

Interface & Connectivity:

  • Interface Type:RGB-24bits
  • PIN Number:60-pin connection
  • Backlight:3 × 14 LED array for uniform brightness
  • Driving IC:Customizable

Environmental Ratings:

  • Operating Temperature:-20°C to +70°C
  • Storage Temperature:-20°C to +70°C
  • Humidity Resistance:Designed for industrial conditions

Touchscreen Options:

  • Available Touchscreen:Custom resistive and capacitive touch options



For product pricing,customization,or other inquiries:

Share to:

The Kingtech 10.4-inch 800×600 TFT Display Module is designed for industrial, medical, and handheld applications requiring stable performance, clear visuals, and reliable operation. With a TN panel, 350 nits brightness, and a 6 O’clock viewing angle, this display is an excellent choice for embedded systems and industrial-grade equipment.

Applications:

Medical Devices – Reliable display for diagnostic and monitoring equipment
  Industrial Equipment – Durable screen for factory automation and process control
  Handheld Devices – Lightweight and efficient for portable system

Why Choose This 10.4-Inch TFT Display Module?

Stable Performance – TN panel with high response time
Good Brightness (350 nits) – Ensures clear visibility indoors
Customizable Touch Options – Supports resistive and capacitive touch screens
Industrial-Grade Durability – Designed for demanding B2B applications

For bulk purchases, technical support, or customization inquiries, contact us today!
