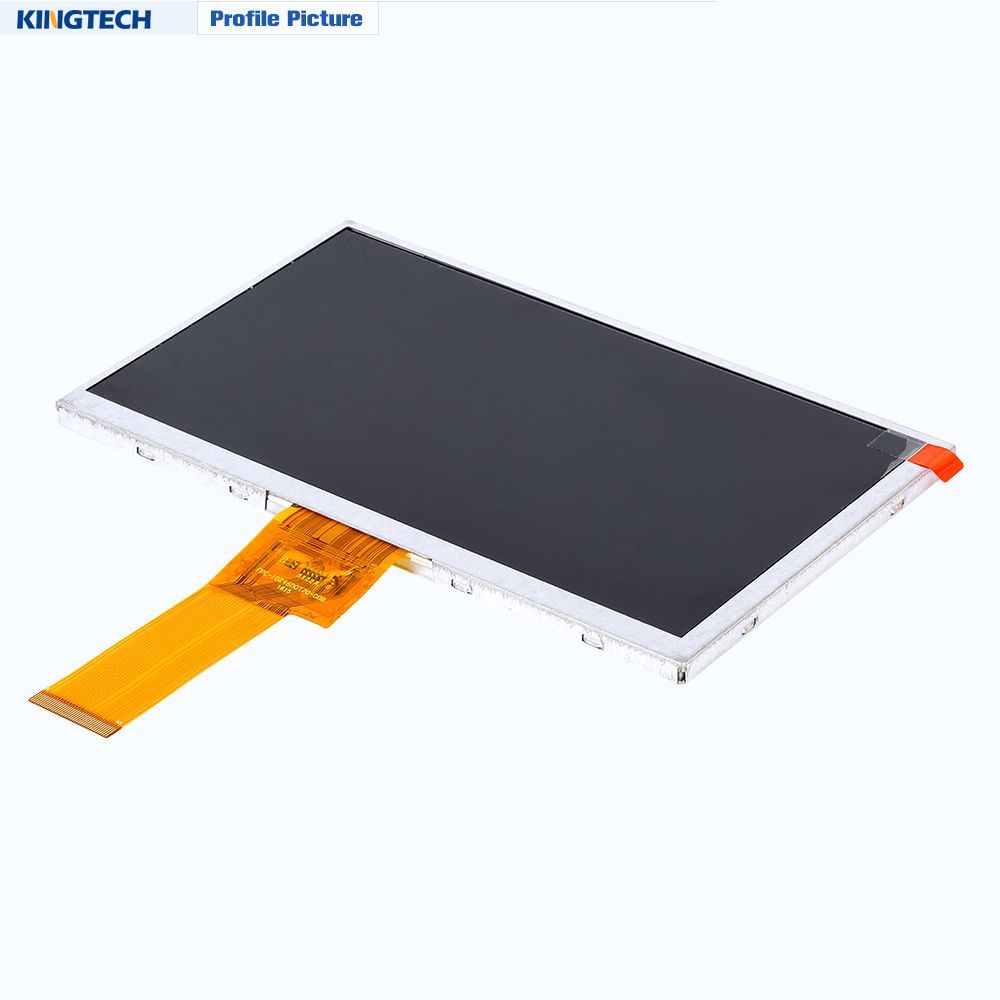

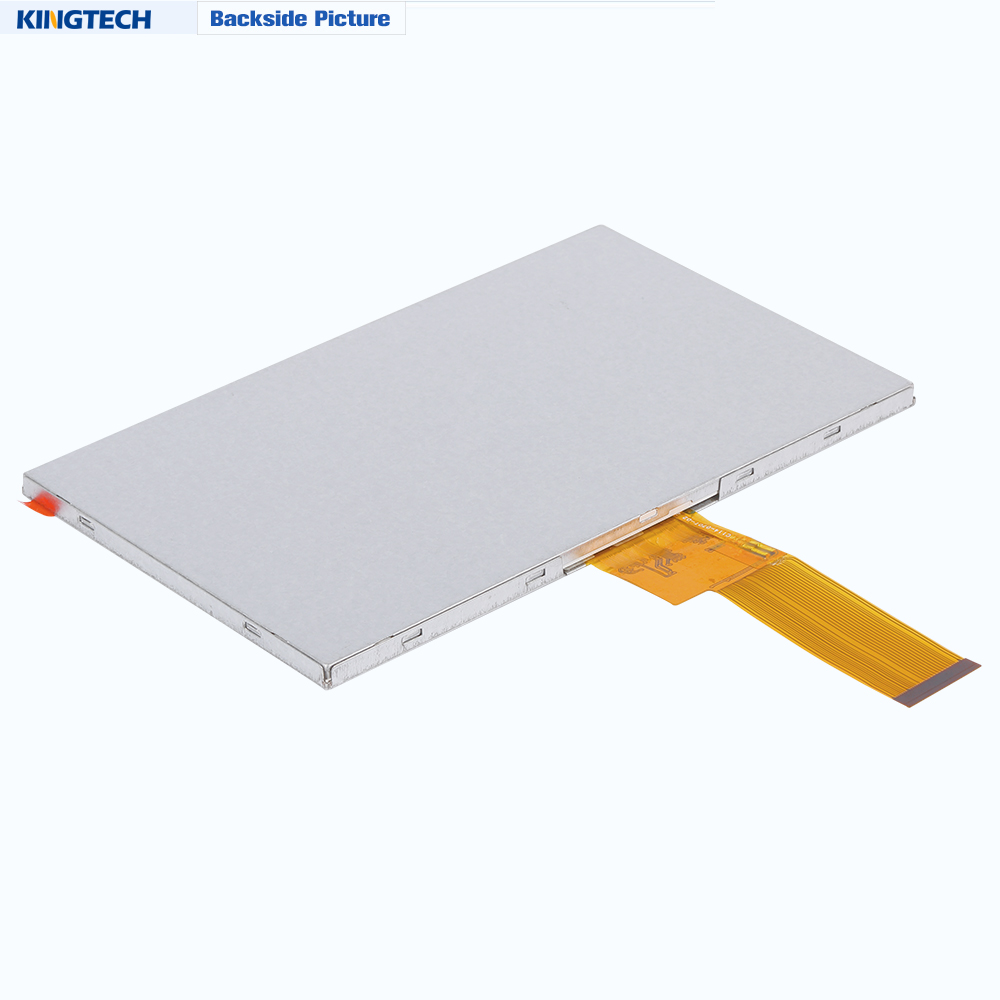

Kingtech 1000nits/high brightness/sunlight readable/outdoor 7 inch LCD display

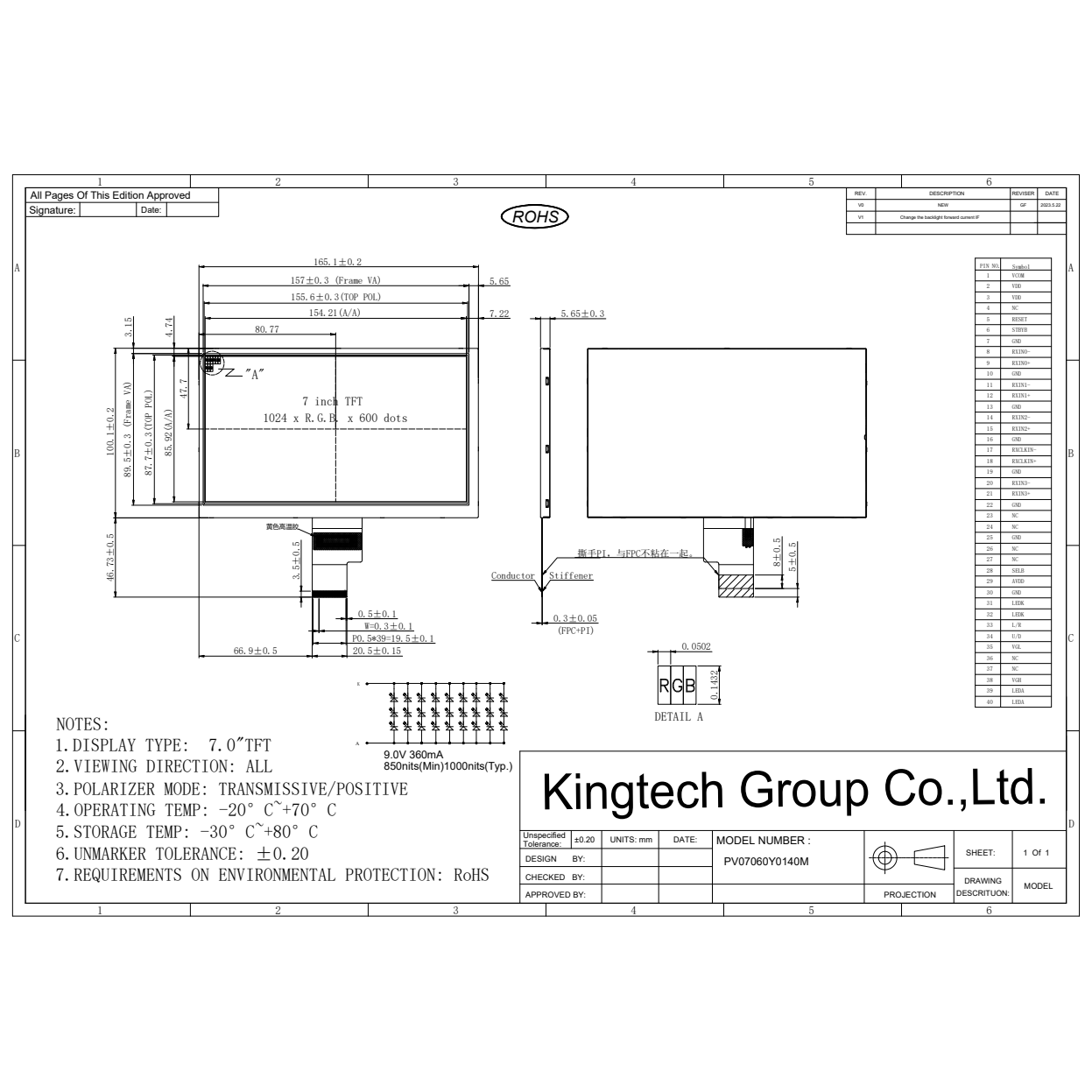

| Item | 7.0 inch TFT 1024×600 module display |
| Model No. | PV07060Y0140M |
| Resolution | 1024*600 |
| Outline Dimension (mm) | 165.1*100.1*5.65 |
| Active Area (mm) | 154.21*85.92 |
| Viewing Angle | All |
| Brightness | 1000nits/Sunlight readable/Outdoor/High brightness |
| Interface | LVDS |
| Backlight | 3*9LED |
| Pin nums | 40 |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Kiosk, POS, Motor, Vendor machine, Industrial control |
For product pricing,customization,or other inquiries:
Share to:
- 7inch 1024×600
- 1000nits/high brightness/sunlight readable/outdoor
- Capacitive touch and resistive touch optional
- All/Full/Wide/IPS viewing angle
- Application for industries, such as Koisk, Industrial control, Vendor machine, Traffic camera
