Kingtech 12.3 inch 1920*720 TFT LCD module

Item 12.3inch IPS 1920*720 TFT display
Model No. PV012302YH50D
Resolution 1920*720

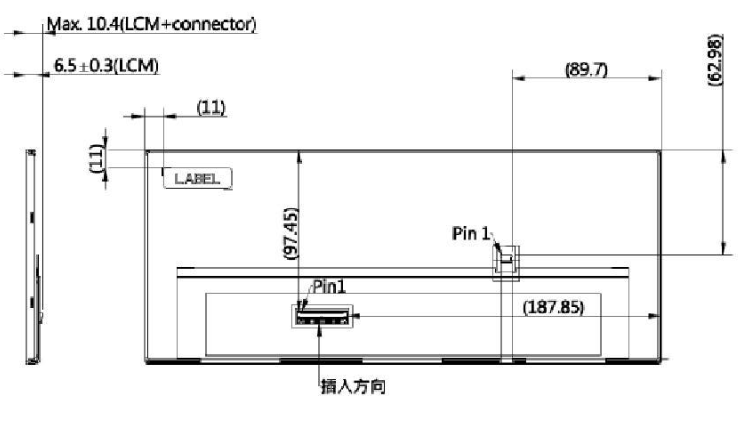

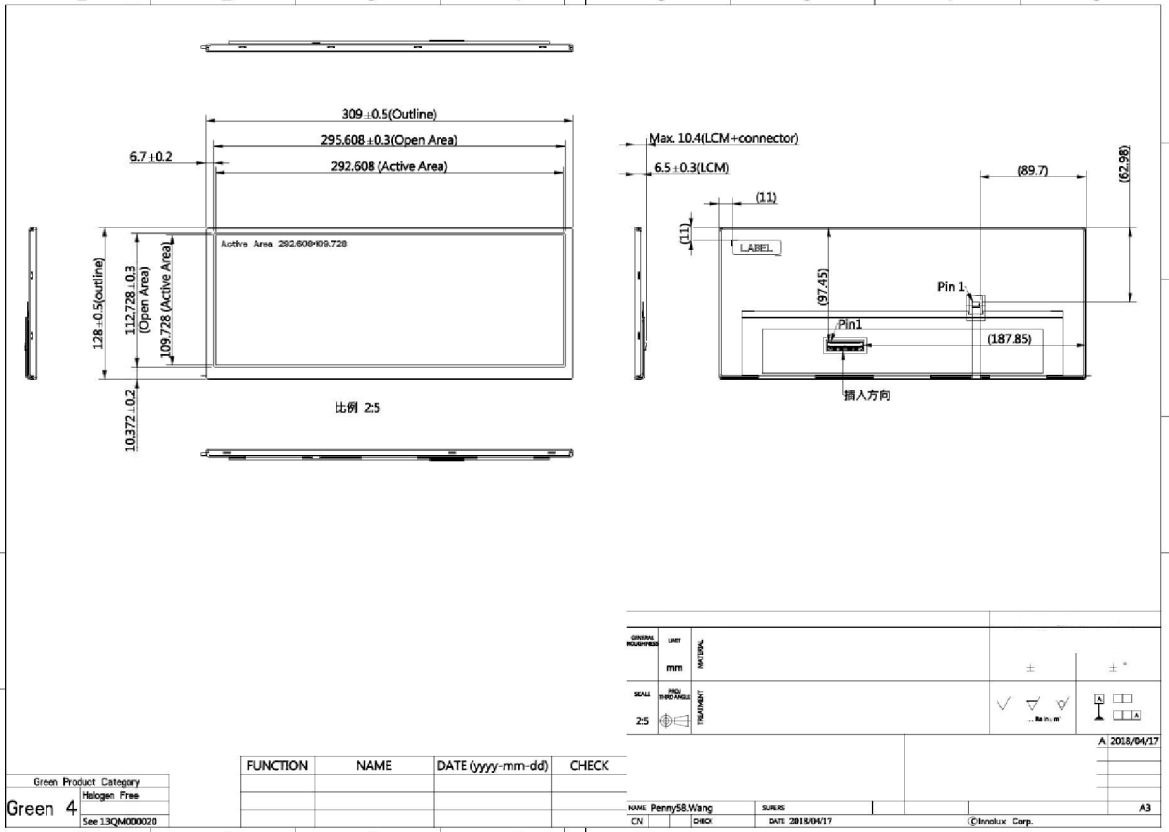

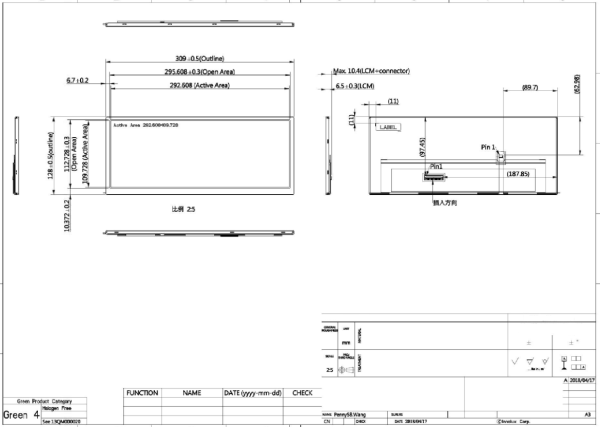

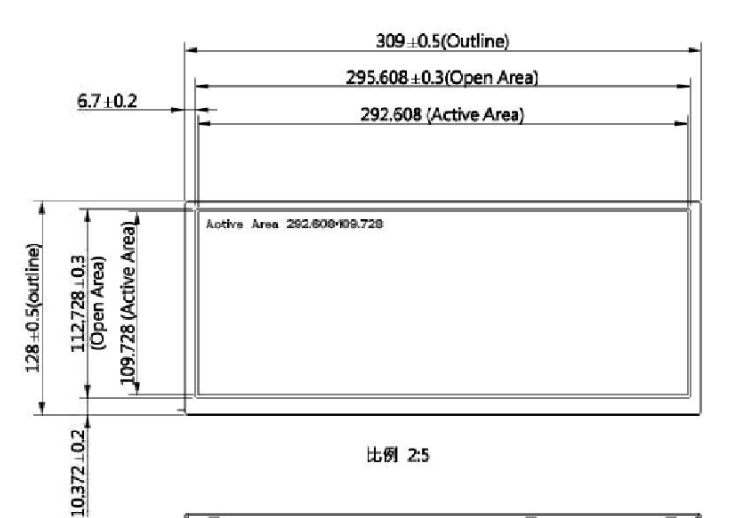

Outline Dimension (mm) 309.0*128.0*6.5
Active Area (mm) 292.608*109.728
Viewing Angle All
Brightness 750nits
Interface 2 Port LVDS (DE Only)
Backlight 11*4LED
Driving IC /
PIN No. 50
Operating Temperature -30~85C
Storage Temperature -40~90C
Touch screen Can custom resistive and capacitive touch screen
Application E-Bike,Medical, hand-held device, industrial，

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 12.3 inchTFT display
  2. 1920*720
  3. Stable supply
  4. IPS/Full/Wide/All viewing angle
  5. 2 Port LVDS (DE Only) interface
  6. -30~+85C/Wide operating temperature
  7. 7.750nits brightness/Sunlight readable/High brightness/Outdoor
  8. 8.Can custom resistive touch and capacitive touch
  9. 9.Medical, hand-held device, industrial, E-bike
