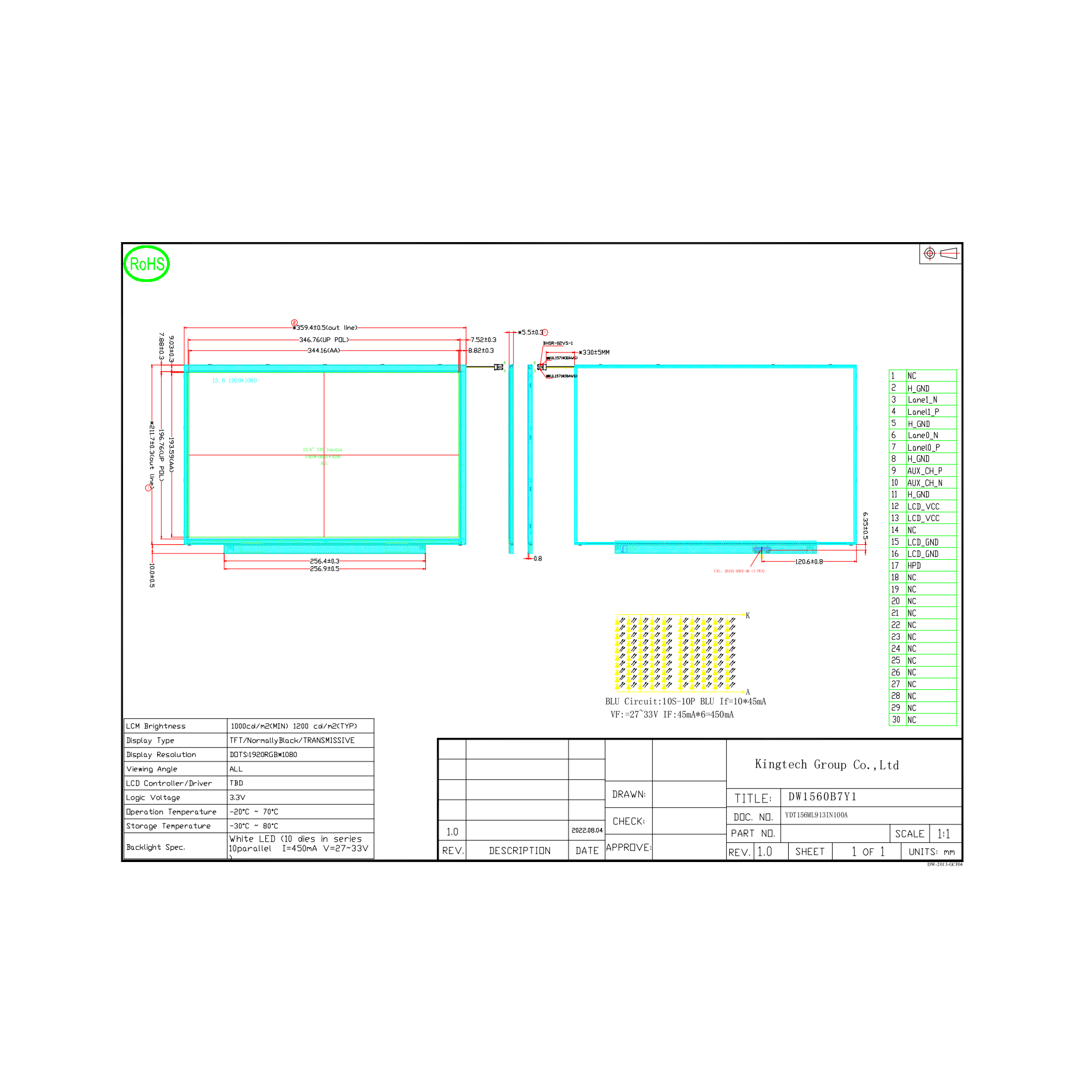

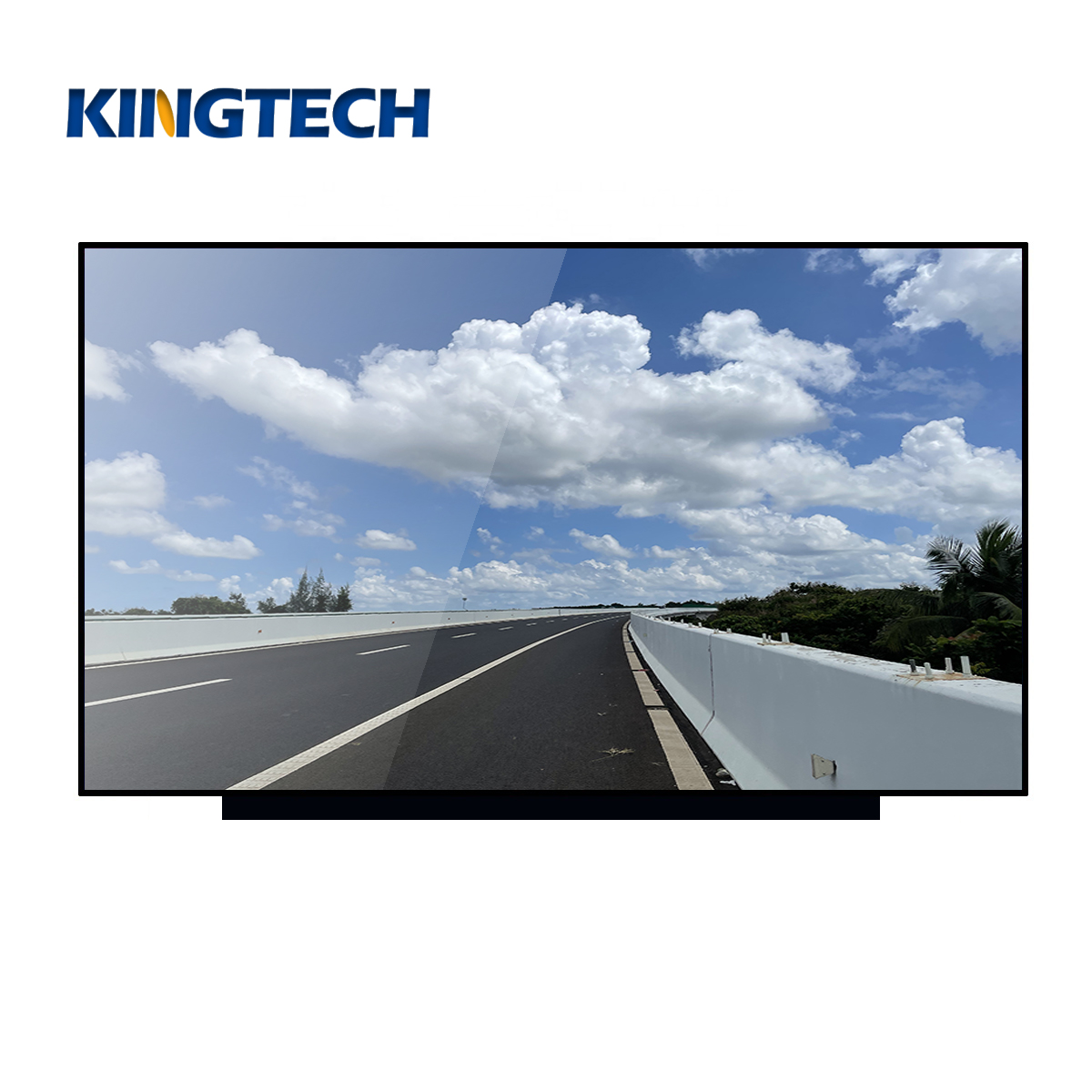

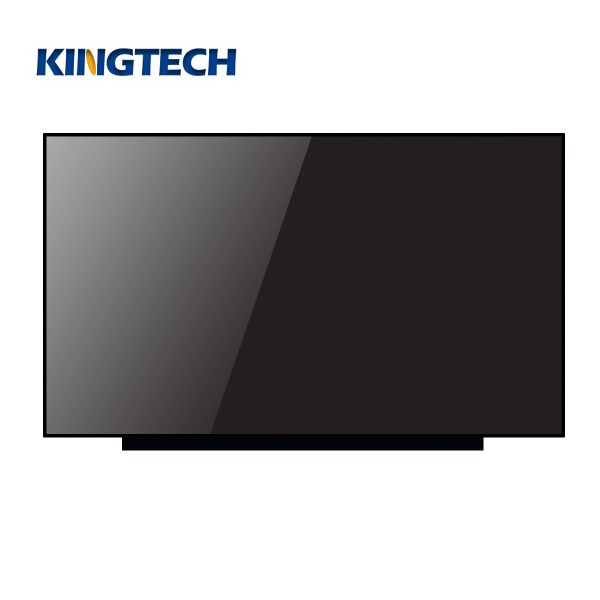

Kingtech 15.6 inch 1920*1080 TFT display
| Item | 15.6 inch IPS 1920*1080 TFT display |
| Model No. | DW1560B7Y1 |
| Resolution | 1920*1080 |
| Outline Dimension (mm) | 211.7*359.4*5.50 |
| Active Area (mm) | 193.59*344.16 |
| Viewing Angle | All |
| Brightness | 1200nits |
| Interface | eDP |
| Backlight | 10*10 LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20-70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial |
For product pricing,customization,or other inquiries:
Share to:
- 15.6 inchTFT display
- 1920*1080
- Stable supply
- IPS/Full/Wide/All viewing angle
- eDP interface
- 1200nits brightness/Sunlight readable/High brightness/Outdoor
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
