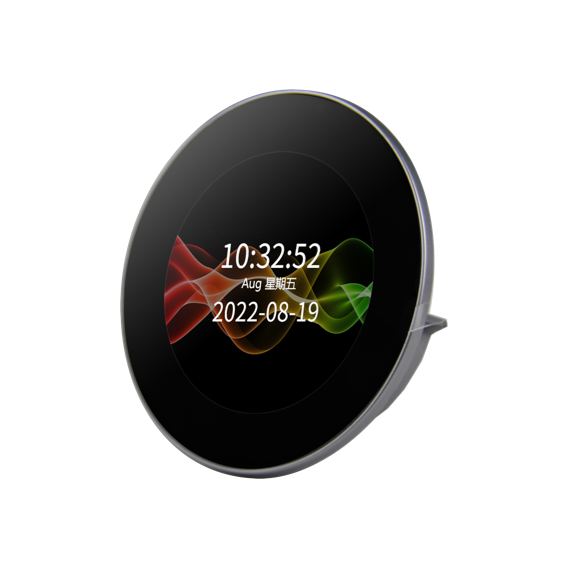

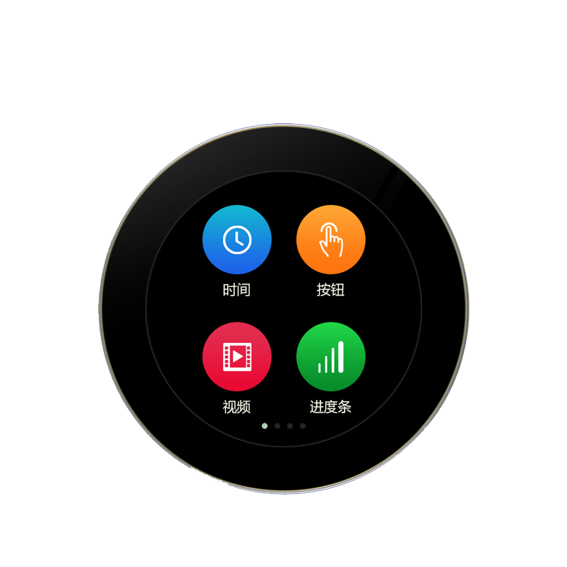

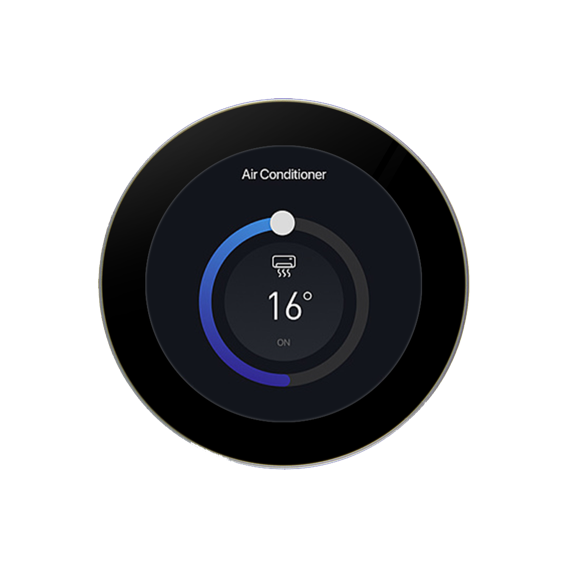

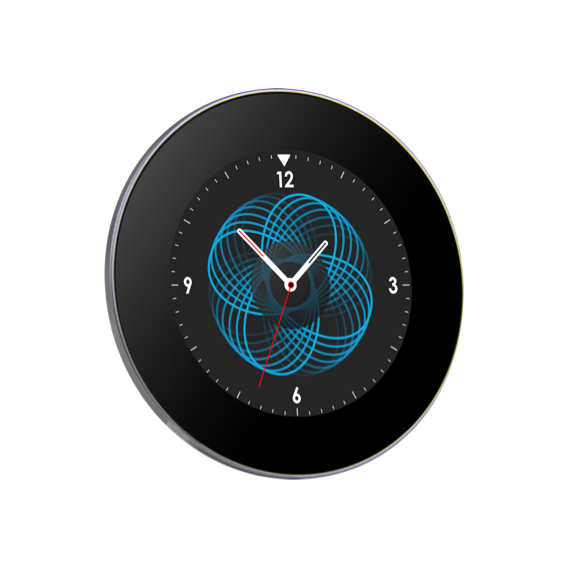

Kingtech 2.1 inch 480*480 with HMI board LCD screen

Size	2.1 inch
Resolution	480*480
Operating Temperature	-20～+70℃
Storage Temperature	-30～+80℃
Display Type	IPS LCD screen
Backlight	LED
Brightness (cd/m²)	300
Backlight Life-time(h)	>20,000
Contrast	1000:1
Viewing Angle (L/R/T/B)	80/80/80/80
Touch Type	Capacitive touch screen
Capacitive Touch Screen Mode	Single-point, swipe touch
Capacitive Touch Screen Light Transmittance	More than 90%.
The Number of Capacitive Screen Touches	The number of capacitive screen touches is theoretically unlimited, and the touch life is related to the working environment (dust, humidity).
Capacitive Touch Cover Glass Customized	The “glass cover + capacitive touch” integrated lamination service can be customized according to the user’s drawing size.

For product pricing,customization,or other inquiries:

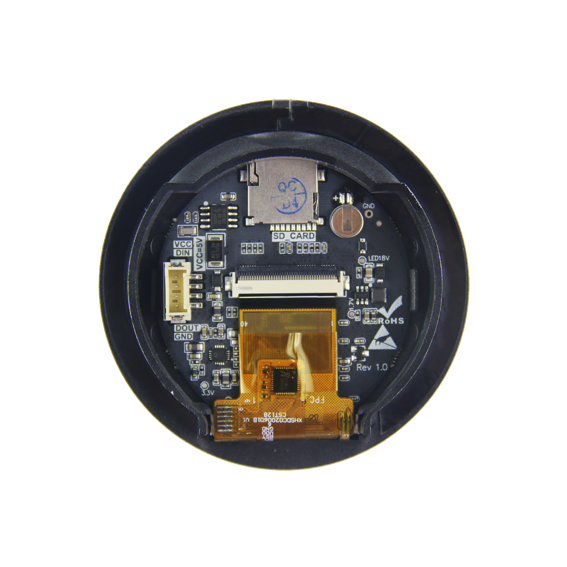

TFT LCD module with HMI board
480×480
Stable supply
80/80/80/80 viewing angle
TTL interface
300nits brightness
Support capactivie touch and also can customcapacitive touch
＞20000H life-time
ISO9001:2015
Match ROHS standard

video video

Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.

To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.

As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
