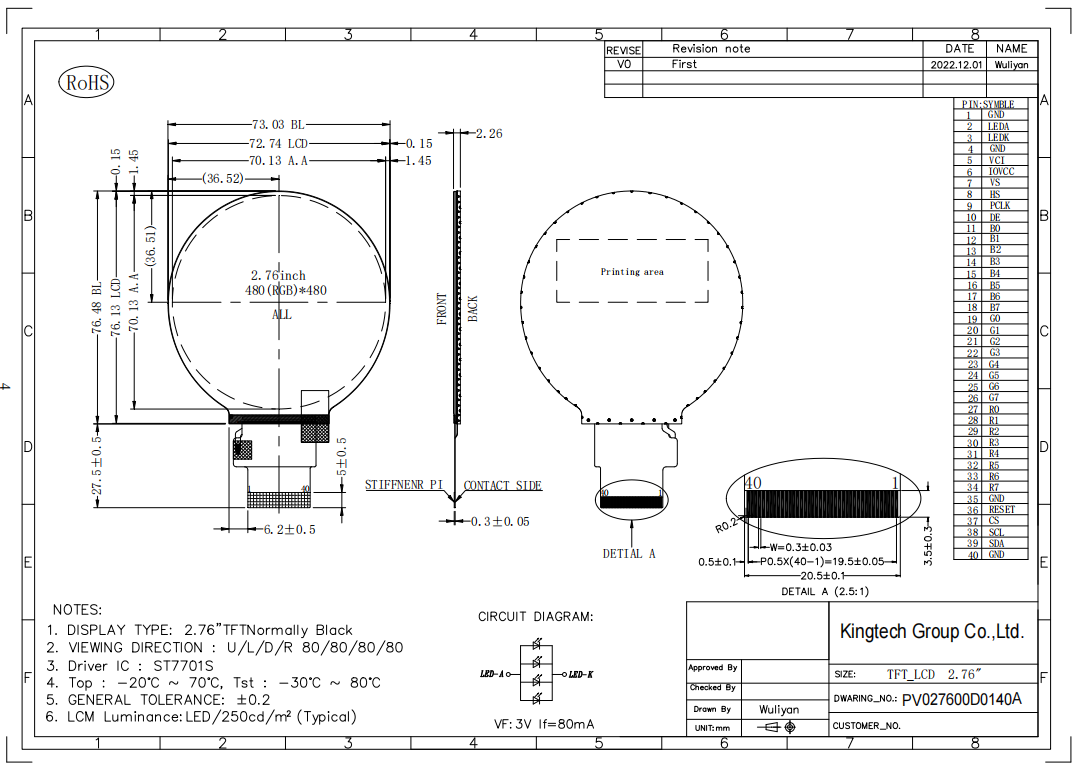

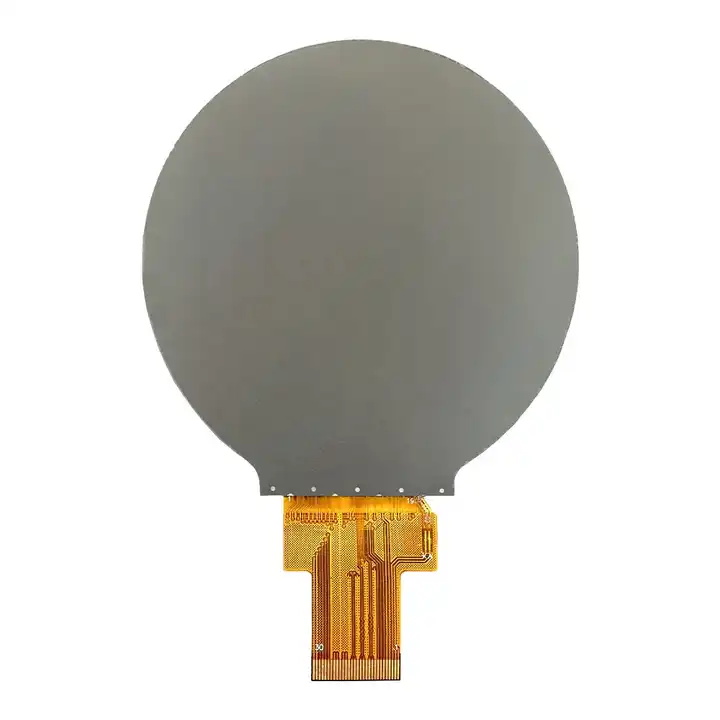

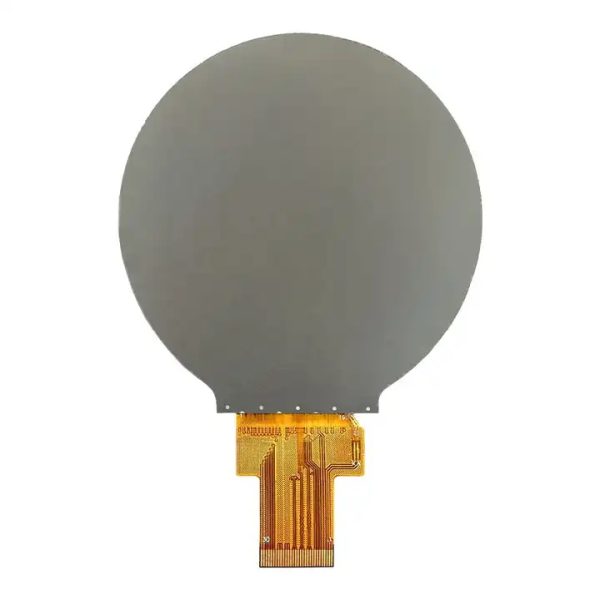

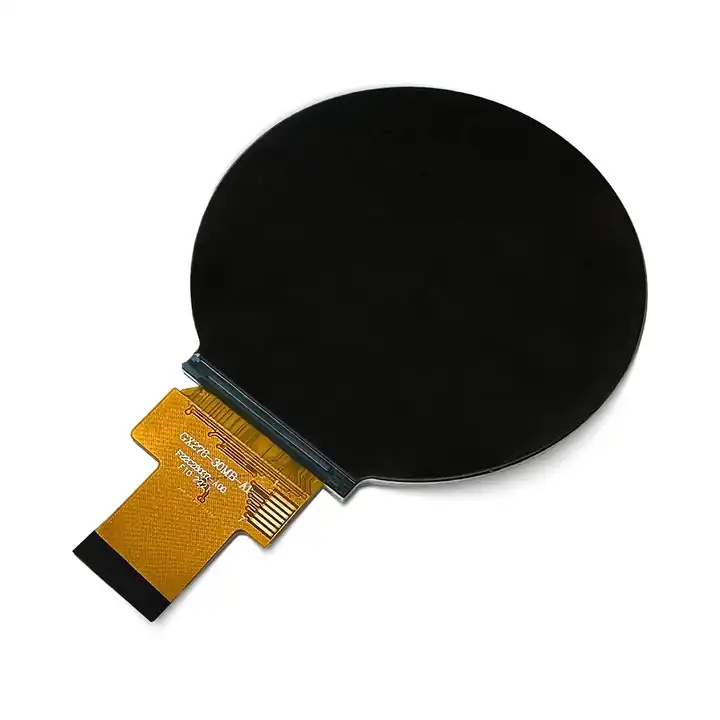

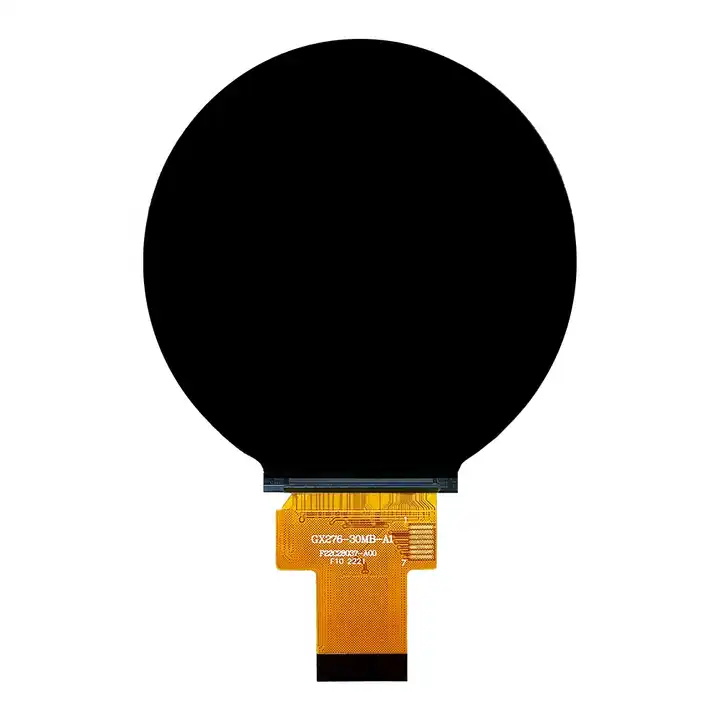

Kingtech 2.76 inch 480*480 TFT display
| Item | 2.76 inch IPS 480*480 round TFT LCD display |
| Model No. | PV027600D0140A |
| Resolution | 480*480 |
| Outline Dimension (mm) | 73.03*74.68*2.26 |
| Active Area (mm) | 70.13*36.51 |
| Viewing Angle | All |
| Brightness | 250nits |
| Interface | RGB24bit |
| Backlight | 1*4LED |
| Driving IC | ST7701S |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial, smart-home |
For product pricing,customization,or other inquiries:
Share to:
- 2.76inch TFT display
- 480*480
- Stable supply
- All / IPS / Wide viewing angle
- RGB 24bitinterface
- 250nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart-home
