Kingtech 3.2 inch 240*320 TFT display
Kingtech 3.2 inch 240*320 TFT display
Kingtech 3.2 inch 240*320 TFT display
Kingtech 3.2 inch 240*320 TFT display

Kingtech 3.2 inch 240*320 TFT display supply very stable

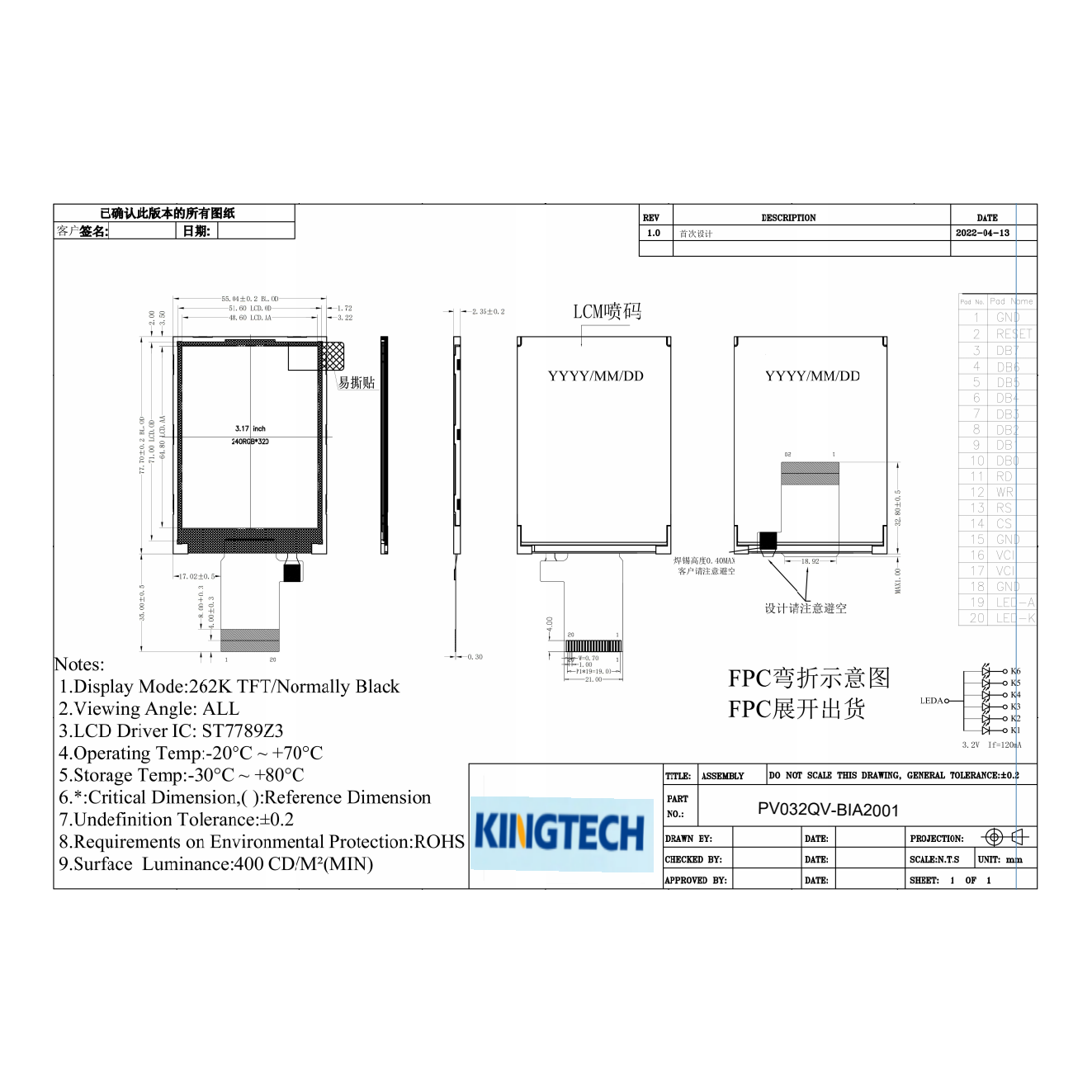

Item 3.2 inch IPS 240*320 TFT display
Model No. PV032QV-BIA2001
Resolution 240*320
Outline Dimension (mm) 55.04*77.70*2.35
Active Area (mm) 48.60*64.80
Viewing Angle All
Brightness 400nits
Interface MCU 8Bit
Backlight 1*6LED
Driving IC ST7789Z3
PIN No. 20
Operating Temperature -20~70
Storage Temperature -30~80
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial, smart home

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 2 inchTFTdisplay
  2. 240*320/QVGA
  3. Stable supply
  4. All/Full/IPS/Wide viewing angle
  5. MCU 8Bitinterface
  6. 400nits~1000nits brightness/Sunlight readable/High brightness
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial

Kingtech 3.2 inch 240*320 TFT display

Kingtech 3.2 inch 240*320 TFT display
