Kingtech 3.4 inch 800*800 round TFT display
Kingtech 3.4 inch 800*800 round TFT display
Kingtech 3.4 inch 800*800 round TFT display
Kingtech 3.4 inch 800*800 round TFT display

Kingtech 3.4 inch 800*800 round TFT display supply very stable

Item 3.4inch IPS 800*800 round LCD display
Model No. PV03405D0130F
Resolution 800*800

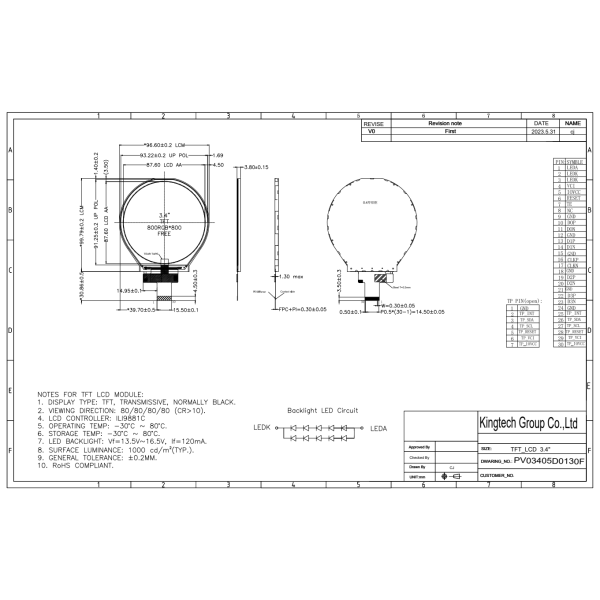

Outline Dimension (mm) 96.6*99.79* 3.8
Active Area (mm) φ 87.6
Viewing Angle All
Brightness 1000nits/Sunlight readable/High brightness/Outdoor
Interface MIPI
Backlight 5*2LED
Driving IC ILI9881C
PIN No. 30
Operating Temperature -30~80
Storage Temperature -30~80
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial, smart home

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 3.4 inchTFTdisplay
  2. 800*800
  3. Stable supply
  4. All/Full/Wide/IPS viewing angle
  5. Wide temperature/-30~80C
  6. MIPIinterface
  7. 1000nits brightness/Sunlight readable/High brightness/outdoor
  8. Can custom resistive touch and capacitive touch
  9. Medical, hand-held device, industrial, smart-home
