Kingtech 3.5 inch 320x240 resolution TFT LCD display
Kingtech 3.5 inch 320x240 resolution TFT LCD display

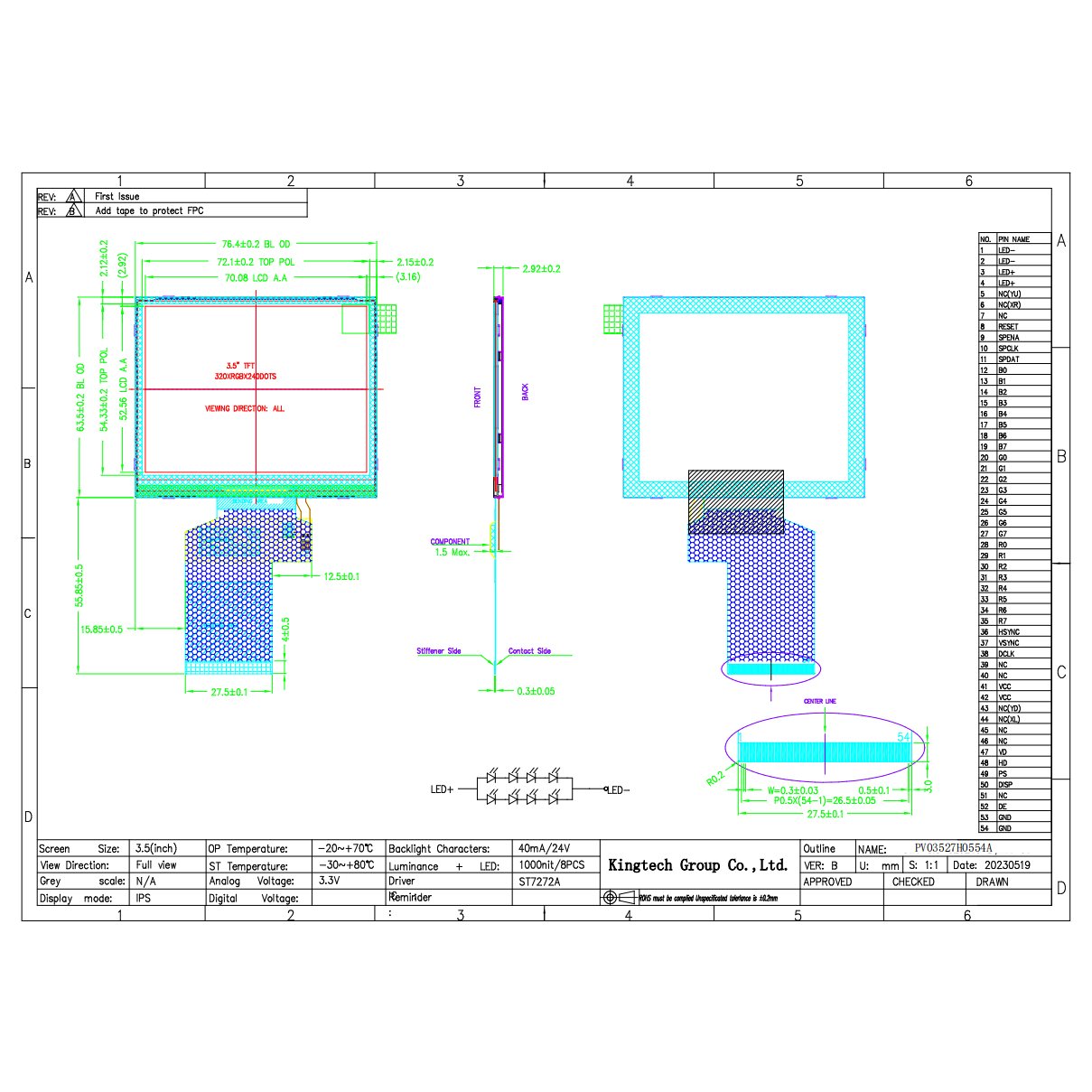

Kingtech 3.5 inch 320×240 resolution TFT LCD display

Item 3.5 inch 320×240 resolution 1000nits LCD display
Model No. PV03527H0554A
Resolution 320*240
Outline Dimension (mm) 76.40*63.50*2.92
Active Area (mm) 70.08*52.56
Viewing Angle All
Brightness 1000nits
Interface RGB
Backlight 4*2LED
Driving IC ST7272A
PIN No. 54
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application Medical, hand-held device, industrial, E-bike, EV-charger

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. Sunlight readable -high brightness -1000nits brightness
  2. IPS / All/Wide/Free viewing angle
  3. Can custom resistive touch and capacitive touch
  4. Medical, hand-held device, industrial, Outdoor
