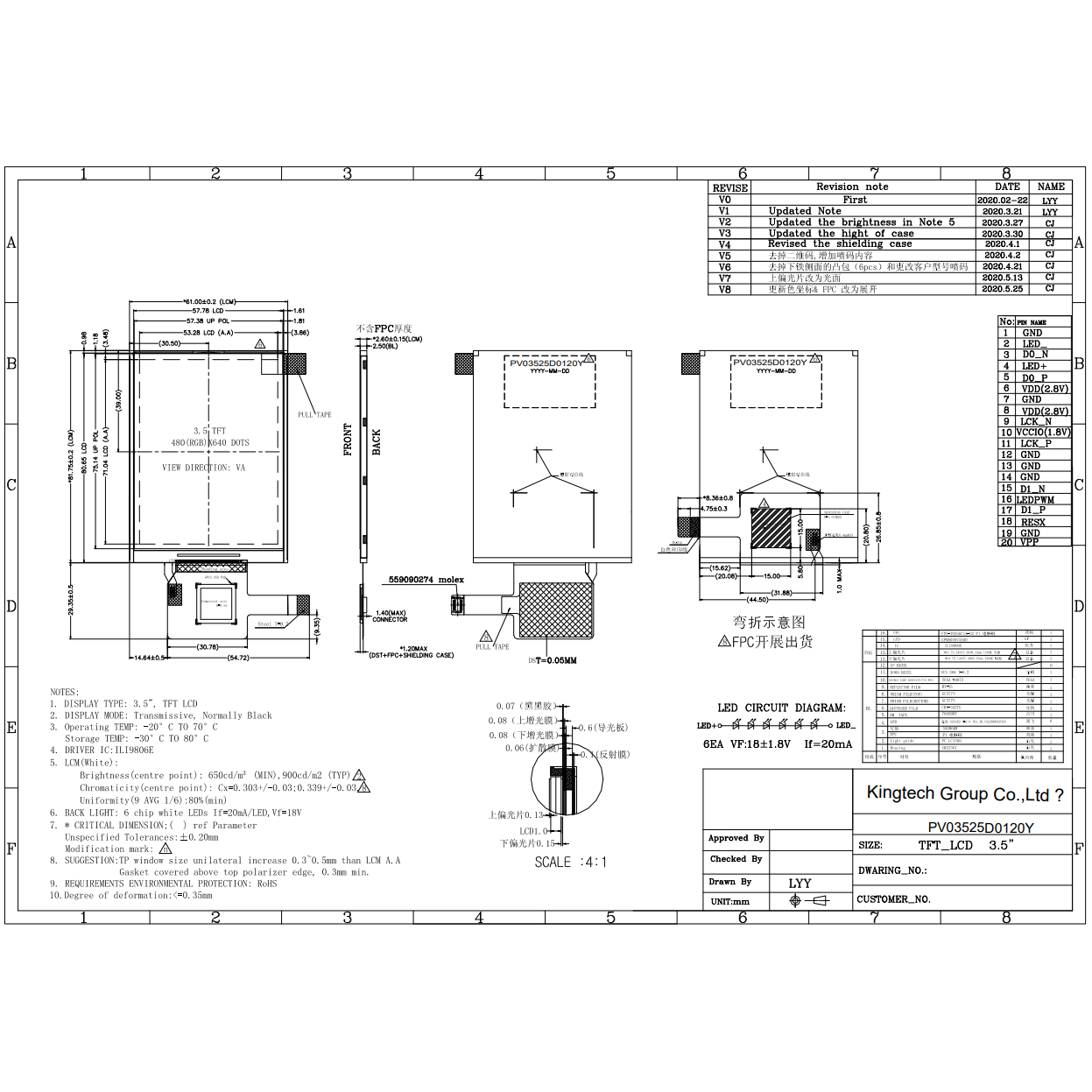

Kingtech 3.5 inch 480×640 resolution TFT LCD display
| Item | 3.5 inch 240×320 IPS viewing angle LCD display |
| Model No. | PV03525D0120Y |
| Resolution | 240*320 |
| Outline Dimension (mm) | 54.5*83*2.1 |
| Active Area (mm) | 51.27*68.36 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | RGB |
| Backlight | 1*6LED |
| Driving IC | ST7789V2 |
| PIN No. | 20 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial, smart watch |
For product pricing,customization,or other inquiries:
Share to:
- Sunlight readable -high brightness -900nits brightness/Outdoor
- IPS /All/Wide/Free viewing angle
- Can custom resistive touch and capacitive touch
