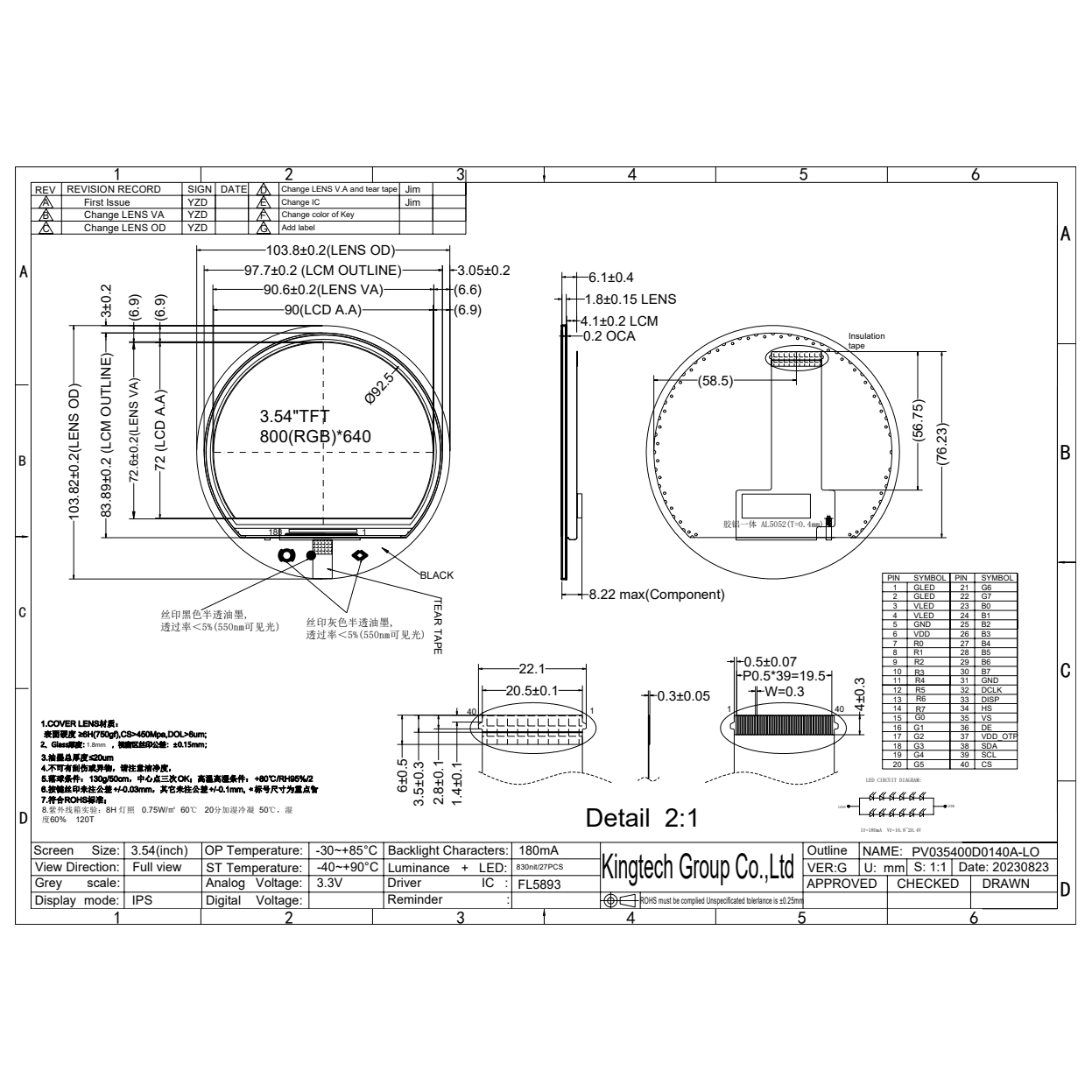

Kingtech 3.54 inch 800*640 round TFT module display
| Item | 3.54inch IPS circular 800*640 TFT display |
| Model No. | PV035400D0140A-LO |
| Resolution | 800*640 |
| Outline Dimension (mm) | 103.8*103.82*6.1 |
| Active Area (mm) | 90*72 |
| Viewing Angle | All |
| Brightness | 830nits |
| Interface | RGB |
| Backlight | 6*2LED |
| Driving IC | FL5893 |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~90C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | Medical, hand-held device, industrial or outdoor, advertisement and thermostat |
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- Circular/round shape
- 830nits brightness/Sunlight readable/High brightness/Outdoor
- -30~85/Wide working temperature
- Can custom resistive touch and capacitive touch
