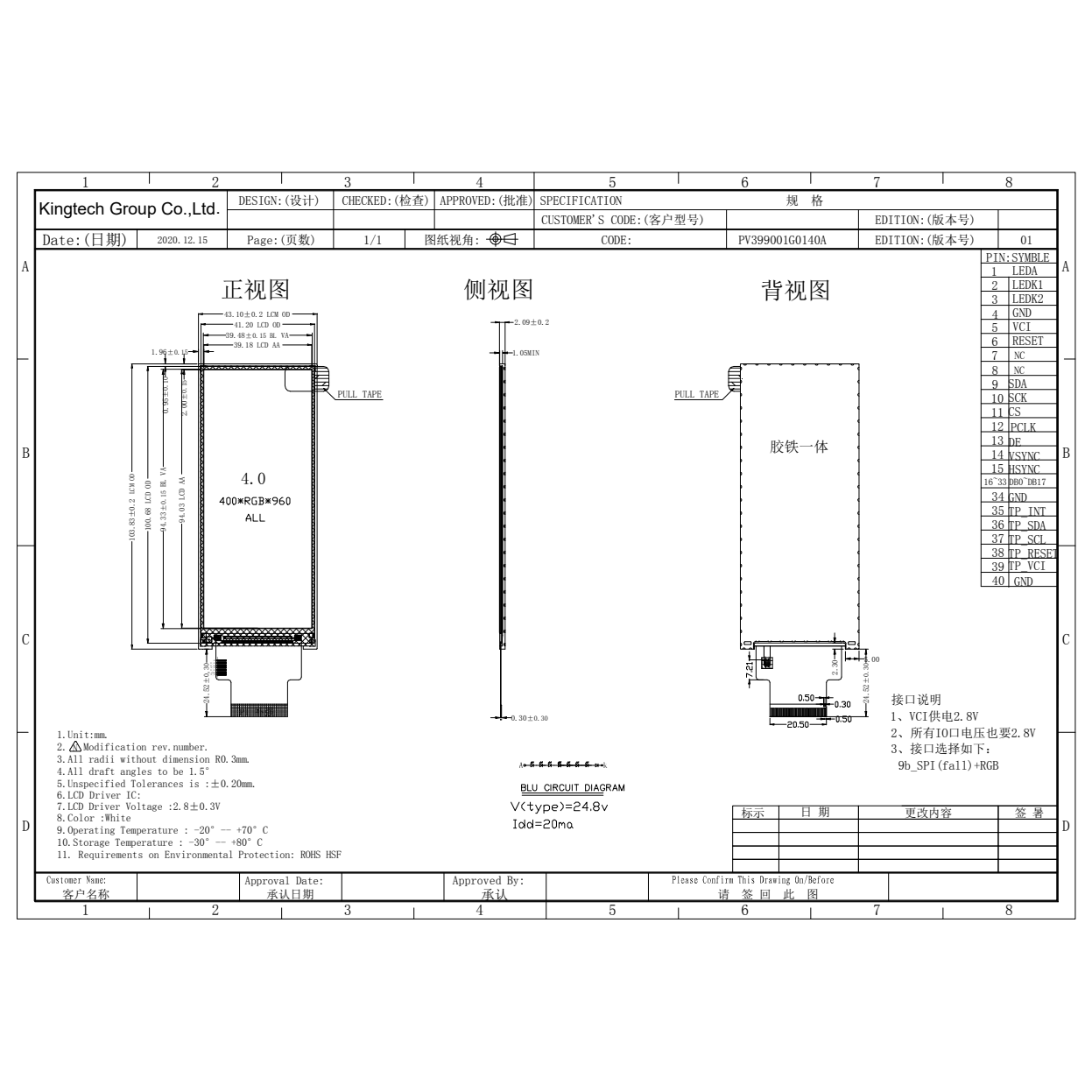

Kingtech 3.99 inch 400*960 TFT display
| Item | 3.99 inch IPS 400*960 TFT display |
| Model No. | PV399001G0140A |
| Resolution | 400*960 |
| Outline Dimension (mm) | 43.10*103.83*2.09 |
| Active Area (mm) | 39.18*94.03 |
| Viewing Angle | All |
| Brightness | 420nits |
| Interface | 3SPI+18RGB |
| Backlight | 7*1LED |
| Driving IC | / |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial |
For product pricing,customization,or other inquiries:
Share to:
- 3.99 inchTFTdisplay
- 400*960
- Stable supply
- All/Full/Wide/IPS viewing angle
- 3SPI+18RGBinterface
- 420nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
