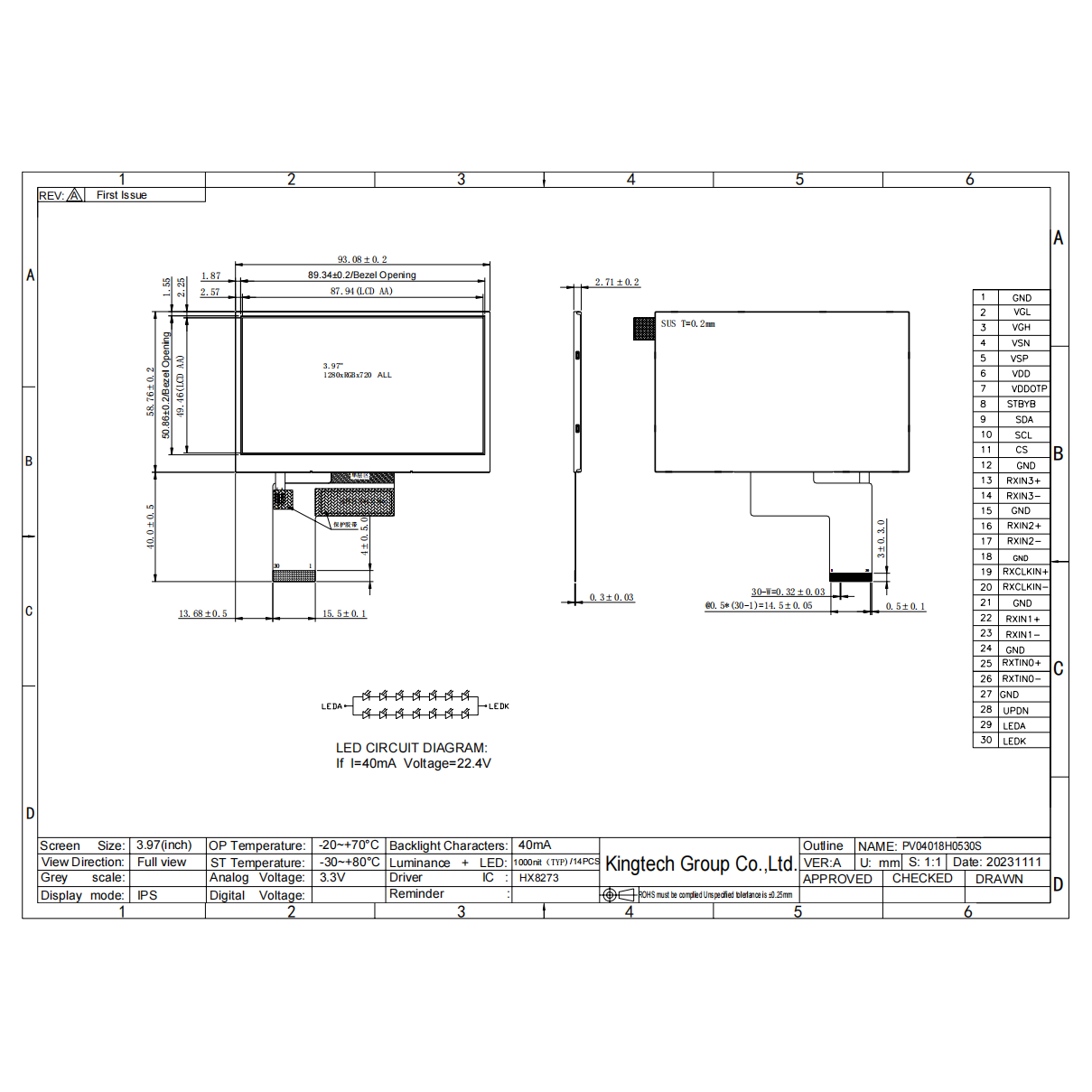

Kingtech 4.0″ inch 1280*720 TFT module display

Item 3.97”IPS 1280*720 TFT display
Model No. PV04018H0530S
Resolution 1280*720

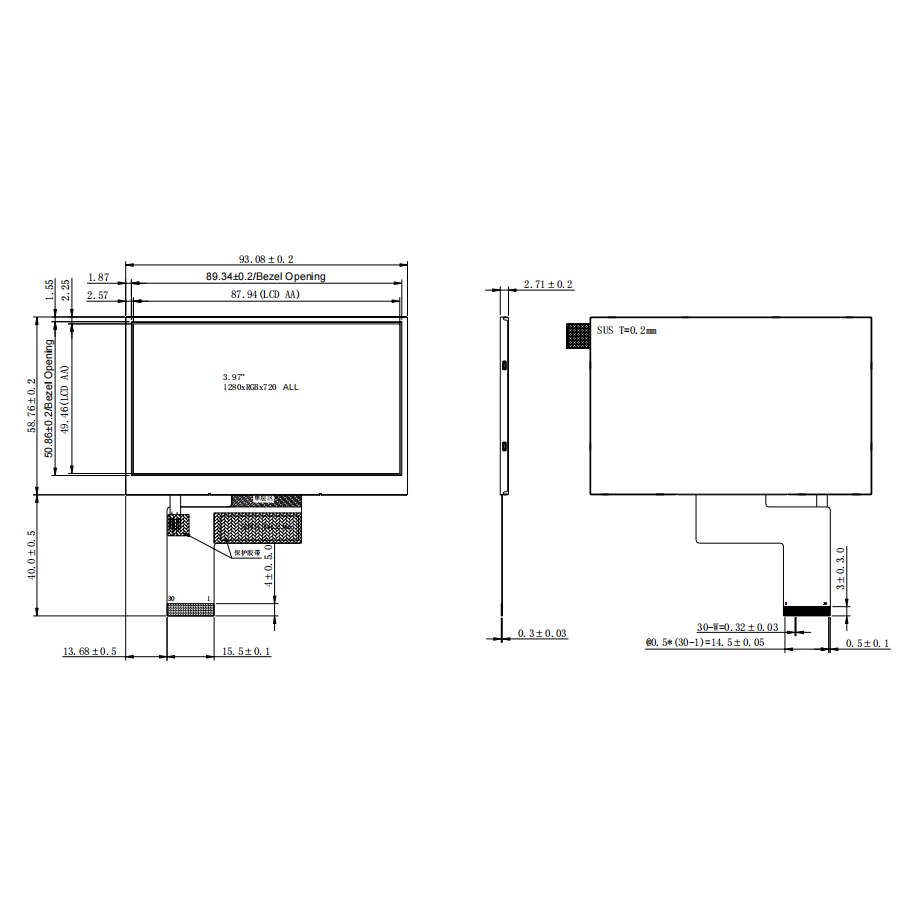

Outline Dimension (mm) 93.08*58.76*2.71
Active Area (mm) 87*94*49.46
Viewing Angle All
Brightness 1000nits
Interface LVDS
Backlight 7*2LEDs
Driving IC HX8273
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application E-Bike,Medical, hand-held device, industrial, EV-chargers

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. Stable supply
  2. 1000nits brightness/Sunlight readable/High brightness/Outdoor
  3. Can custom resistive touch and capacitive touch
  4. All/Free/Wide/IPS viewing angle
