4.0 inch 480*480 square TFT display
4.0 inch 480*480 square TFT display
4.0 inch 480*480 square TFT display
4.0 inch 480*480 square TFT display

Kingtech 4.0 inch 480*480 square TFT display supply very stable

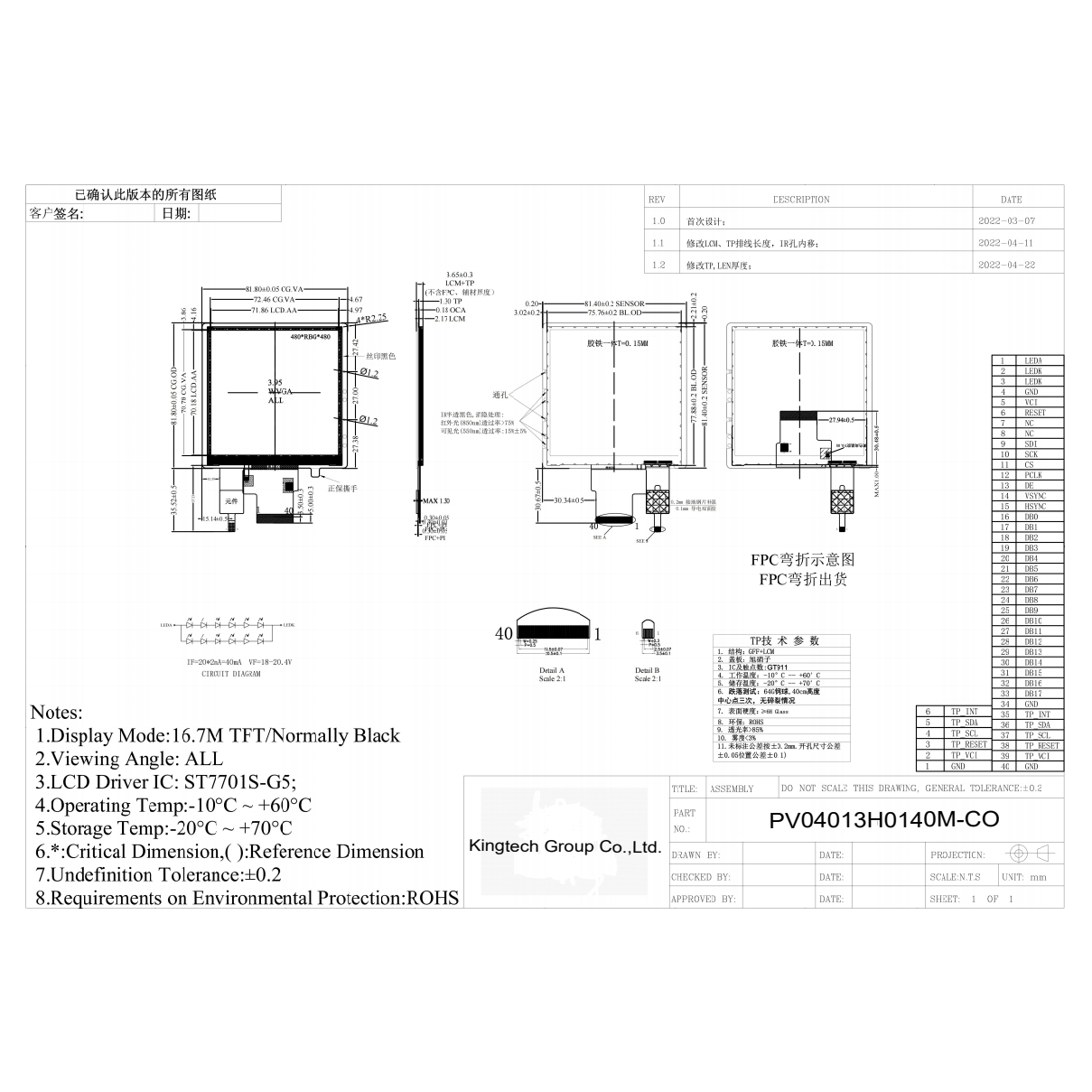

Item 4.0 inch IPS 480*480 square TFT display
Model No. PV04013H0140M-CO
Resolution 480*480
Outline Dimension (mm) 81.80*81.80*3.65
Active Area (mm) 71.86*70.18
Viewing Angle All
Brightness 500nits
Interface RGB
Backlight 6*2 LED
Driving IC ST7701S
PIN No. 40
Operating Temperature -10~60
Storage Temperature -20~70
Touch screen Can custom resistive and capacitive touch screen
Application Medical, Hand-held device, Industrial, Smart home

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 4.0 inchTFT display
  2. 480*480
  3. Stable supply
  4. All/Full/Wide/IPS viewing angle
  5. RGBinterface
  6. 500nits brightness/Sunlight readable/High brightness/Outdoor
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial, smart-home

4.0 inch 480*480 square TFT display
