Kingtech 4.0 inch 480*480 TFT display supply very stable
| Item | 4.0 inch IPS 480*480 suqareTFT display |
| Model No. | PV04015H0150P |
| Resolution | 480*480 |

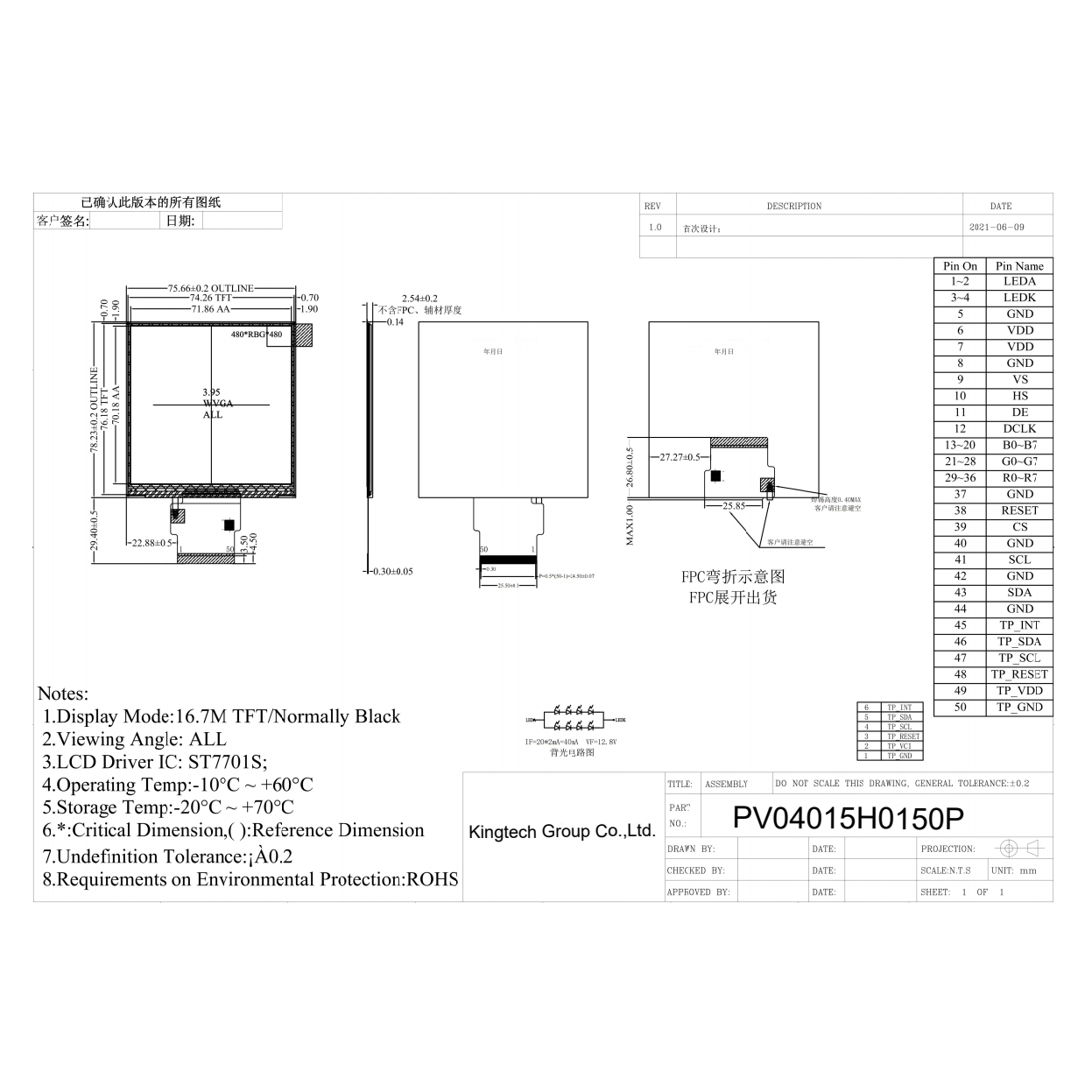

| Outline Dimension (mm) | 75.66*78.23*2.54 |
| Active Area (mm) | 71.86*70.18 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | RGB |
| Backlight | 4*2LED |
| Driving IC | ST7701S |
| PIN No. | 50 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, Hand-held device, Industrial, Smart-home |
For product pricing,customization,or other inquiries:
Share to:
- 4.0 inchTFT display
- 480*480
- Stable supply
- All/Full/Wide/IPS viewing angle
- RGBinterface
- 500nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial, smart home
