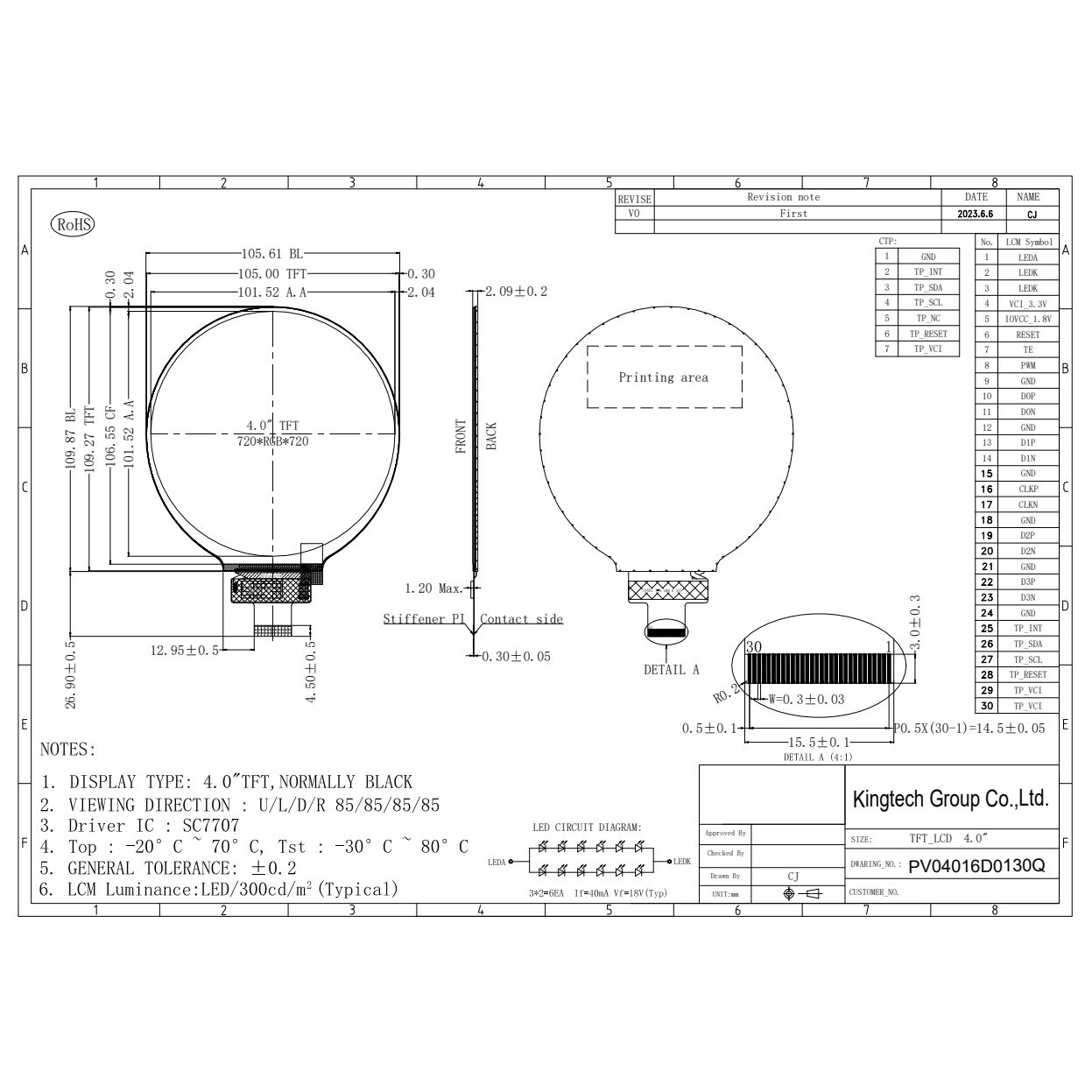

Machine Drawing
Video
More about Kingtech
Download

4.0 inchTFT display
720*720
Stable supply
All/Full/Wide/IPS viewing angle
MIPIinterface
300nits brightness/Sunlight readable/High brightness
Can custom resistive touch and capacitive touch
Medical, hand-held device, industrial, smart home

4.0 inch 720*720 Round TFT display

PV04016D0130Q

Item	4.0 inch IPS 720*720 square TFT display for smart home
Model No.	PV04016D0130Q
Resolution	720*720
Outline Dimension (mm)	105.61109.872.09
Active Area (mm)	φ 101.52
Viewing Angle	All
Brightness	300nits
Interface	MIPI
Backlight	6*2LED
Driving IC	SC7707
PIN No.	30
Operating Temperature	-20~70C
Storage Temperature	-30~80C
Touch screen	Can custom resistive and capacitive touch screen
Application	E-Bike, Medical, hand-held device, industrial, smart home

Kingtech 4.0 inch 720*720 TFT display supply very stable. This 4.0 inch supports MIPI interface. In addition, the 4.0 inch 720*720 square TFT display module brightness is 300 nits, and this 4.0 inch display is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.

The 4.0 inch 720*720 square TFT display module can be used for E-Bike, Medical, hand-held device, industrial, smart home or others.
