Kingtech 4.0 inch 720*720 TFT display
Kingtech 4.0 inch 720*720 TFT display
Kingtech 4.0 inch 720*720 TFT display
Kingtech 4.0 inch 720*720 TFT display

Kingtech 4.0 inch 720*720 TFT display supply very stable

Item 4.0 inch IPS 720*720 square TFT display

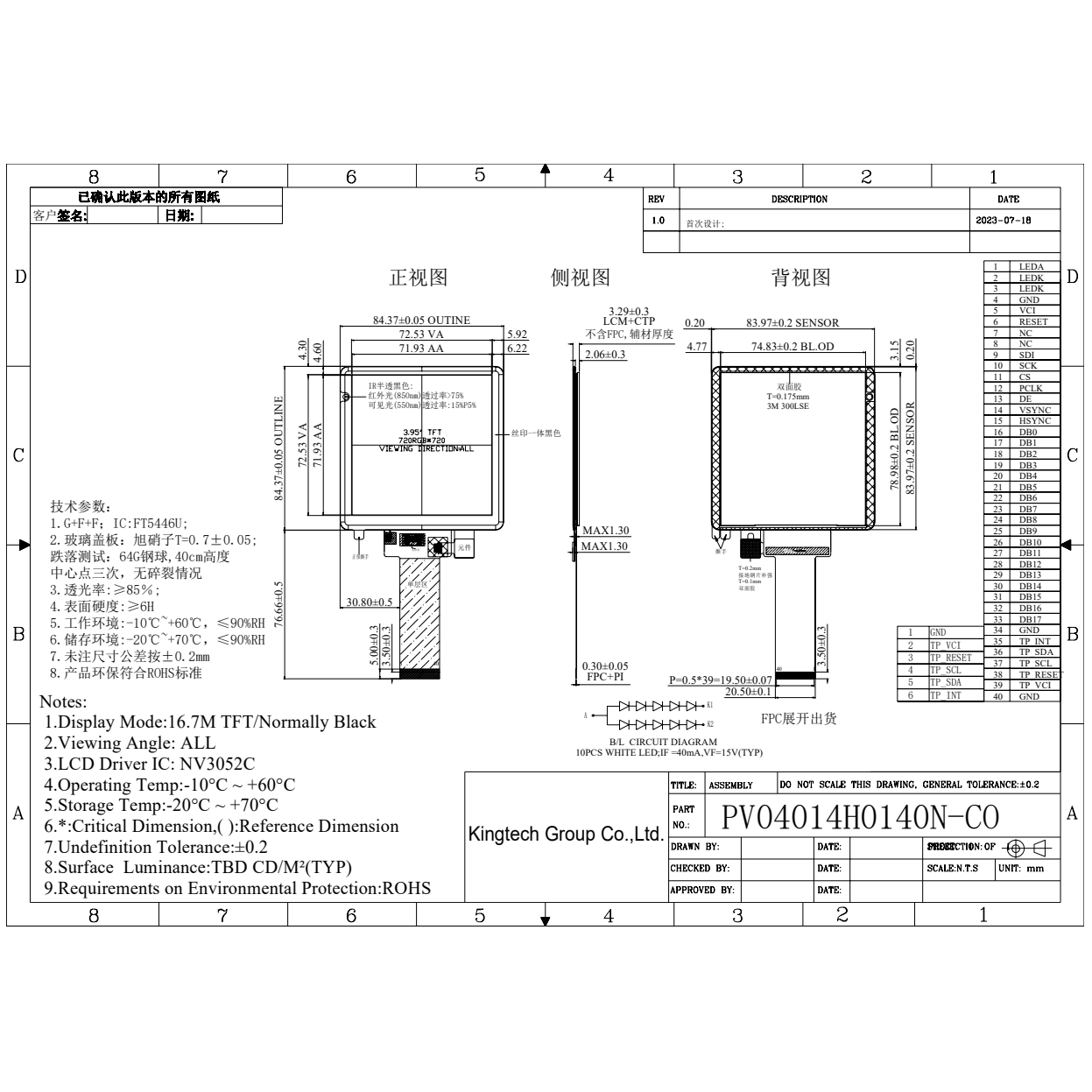

Model No. PV04014H0140N-CO
Resolution 720*720
Outline Dimension (mm) 84.37*84.37*3.29
Active Area (mm) 71.93*71.93
Viewing Angle All
Brightness 500nits
Interface RGB
Backlight 5*2LED
Driving IC NV3052C
PIN No. 40
Operating Temperature -10~60C
Storage Temperature -20~70C
Touch screen Can custom resistive and capacitive touch screen
Application Medical, Hand-held device, Industrial, Smart Home

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 4.0 inchsquare TFT display
  2. 720*720
  3. Stable supply
  4. All/Full/Wide/IPS viewing angle
  5. RGB interface
  6. 500nits brightness/Sunlight readable/High brightness
  7. Can custom resistive touch and capacitive touch
  8. Medical, hand-held device, industrial, smart home
