Kingtech 4.3 inch 480*272 TFT display supply very stable.

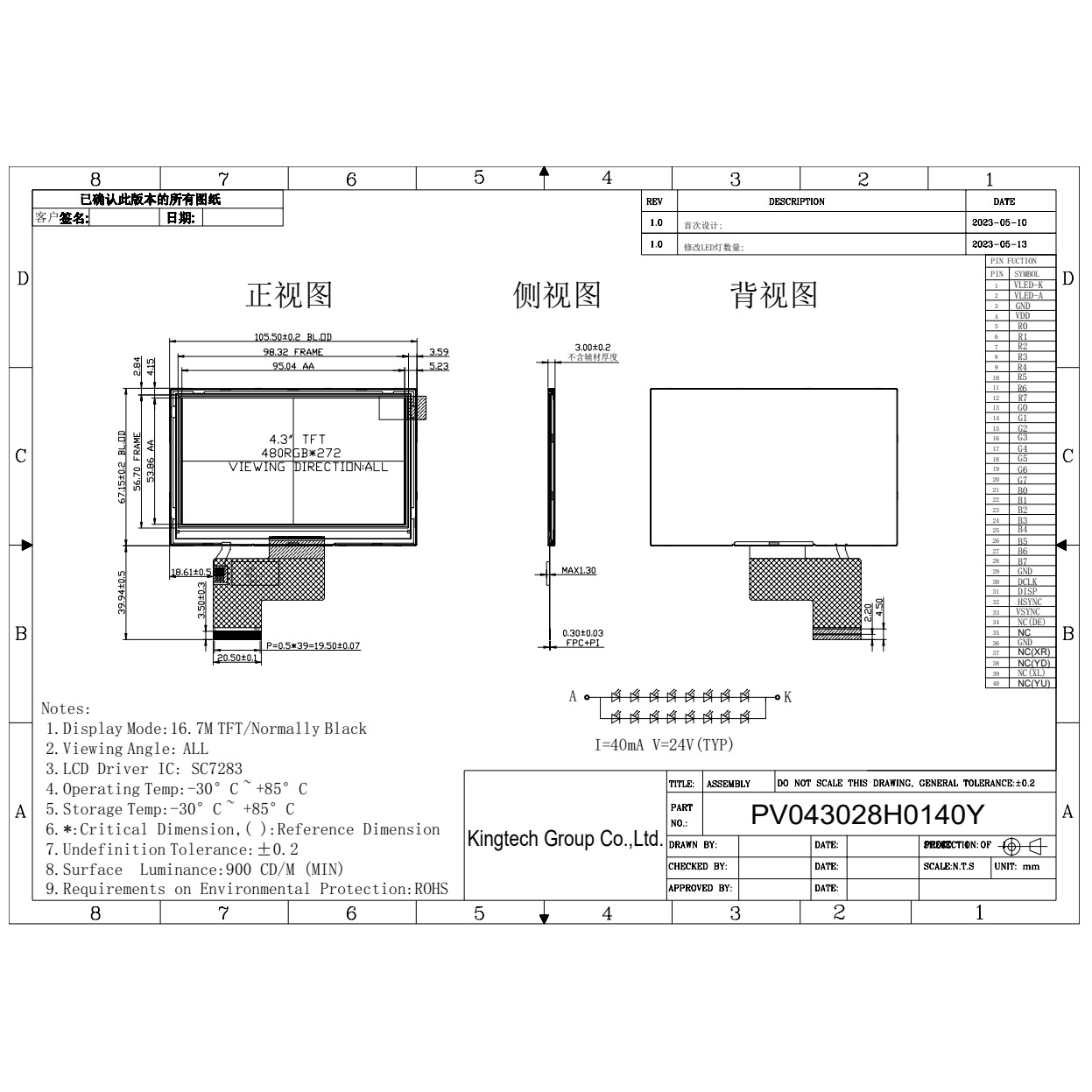

| Item | 4.3 inch IPS 480*272 TFT display |
| Model No. | PV043028H0140Y |
| Resolution | 480*272/WQVGA |
| Outline Dimension (mm) | 105.5*67.15*3 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 900nits |
| Interface | RGB |
| Backlight | 8*2LED |
| Driving IC | SC7283 |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -30~85C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial， |
For product pricing,customization,or other inquiries:
Share to:
- 4.3 inchTFT display
- 480*272/WQVGA
- Stable supply
- All/Full/Wide/IPS viewing angle
- RGBinterface
- Wide temperature/-30~+85C
- 900nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
