Kingtech 4.3 inch 480*272 TFT display supply very stable.

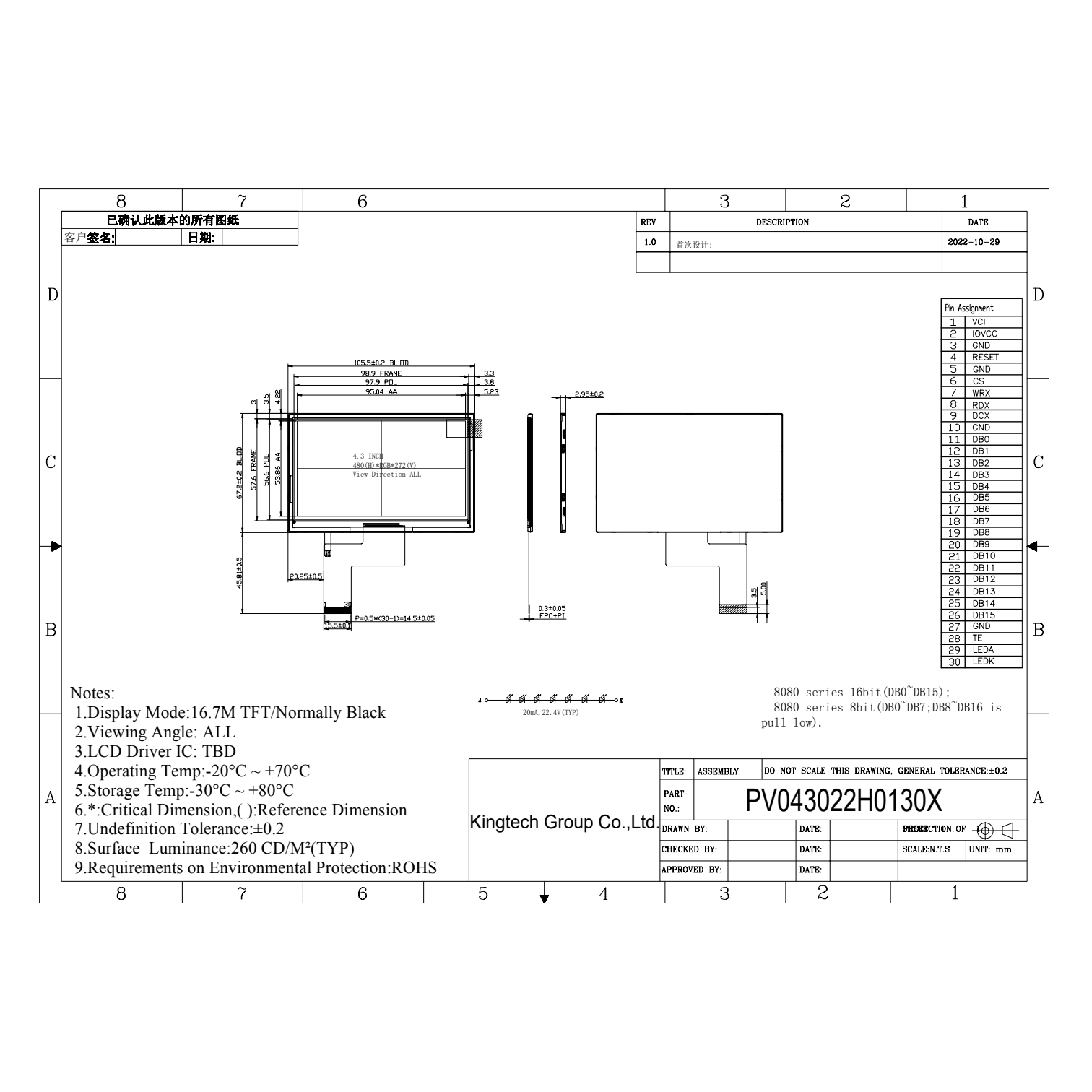

| Item | 4.3 inch IPS 480*272 TFT display |
| Model No. | PV043022H0130X |
| Resolution | 480*272 |
| Outline Dimension (mm) | 105.5*67.2*2.95 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 260nits |
| Interface | MCU |
| Backlight | 7*1LED |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
For product pricing,customization,or other inquiries:
Share to:
- 4.3 inchTFTdisplay
- 480*272/WQVGA
- Stable supply
- All/Full/Wide/IPS viewing angle
- MCUinterface
- 260nits brightness/Sunlight readable/High brightness
- Can custom resistive touch and capacitive touch
- Medical, hand-held device, industrial
