Kingtech 4.3″ inch 480*272 TFT module display
Kingtech 4.3″ inch 480*272 TFT module display supply very stable. This 4.3″ inch supports RGB interface. In addition, the 4.3″ inch TFT display module brightness is 400nits, and this 4.3″ inch screen is All viewing type. For the touch part, we can also customize capacitive and resistive touch according to the customer requirements.
The 4.3″ inch 480*272 TFT display module can be used for Medical, hand-held device, industrial, Gas equipment, charging piles/engineering vehicles/ships, automotive and 3D printer or others.
For product pricing,customization,or other inquiries:
Share to:
- Stable supply
- WVGA/ 480*272 resolution
- Can custom resistive touch and capacitive touch

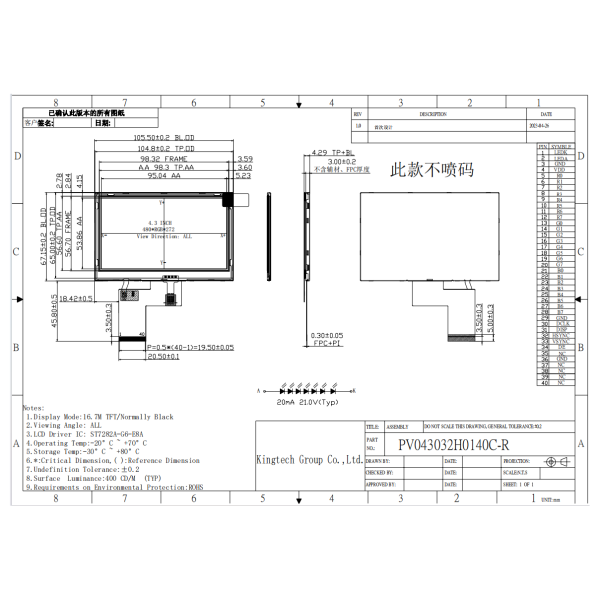

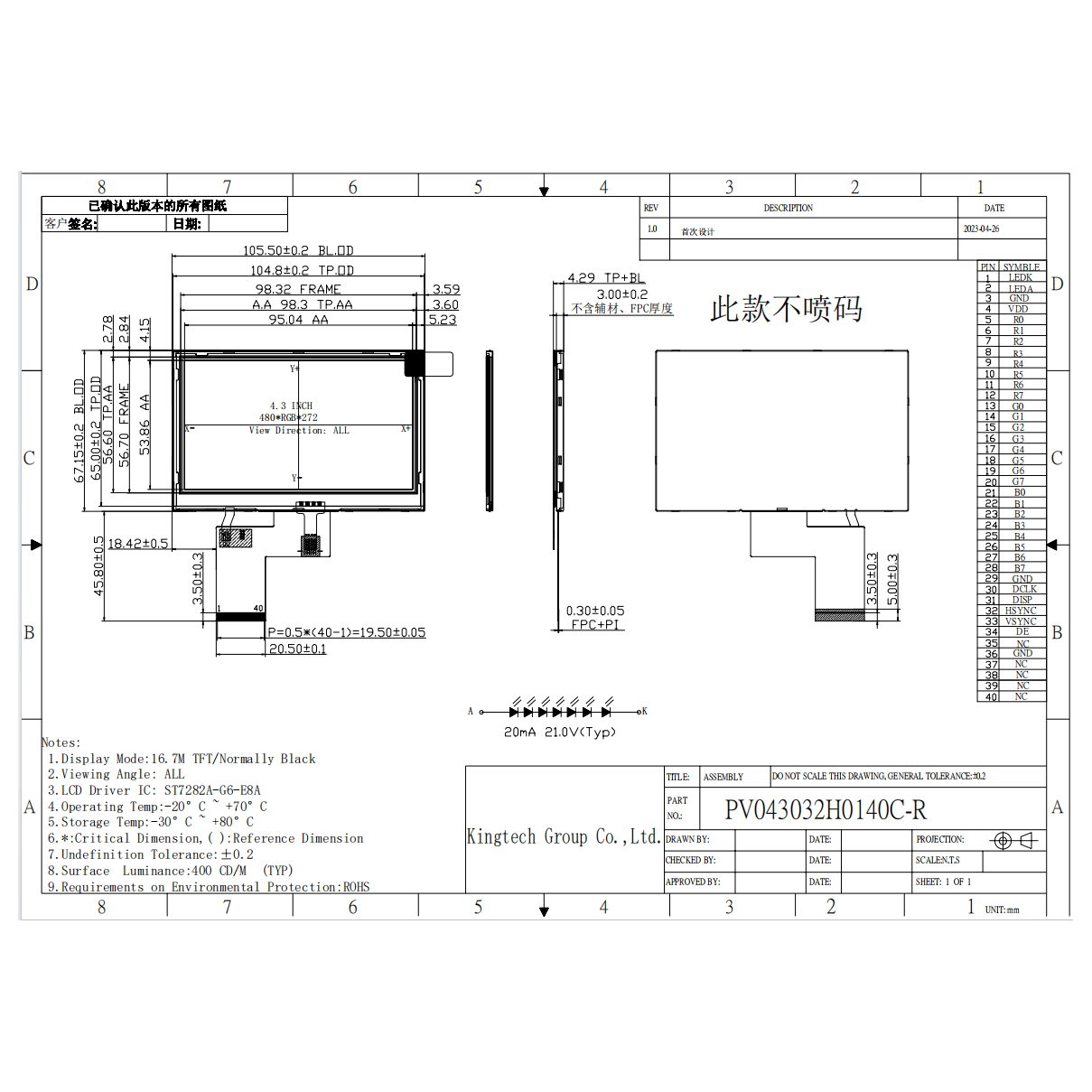

| Item | 4.3inch 480×272 TFT LCD module ST7282A |
| Model No. | PV043032H0140C-R |
| Resolution | 480*272 |

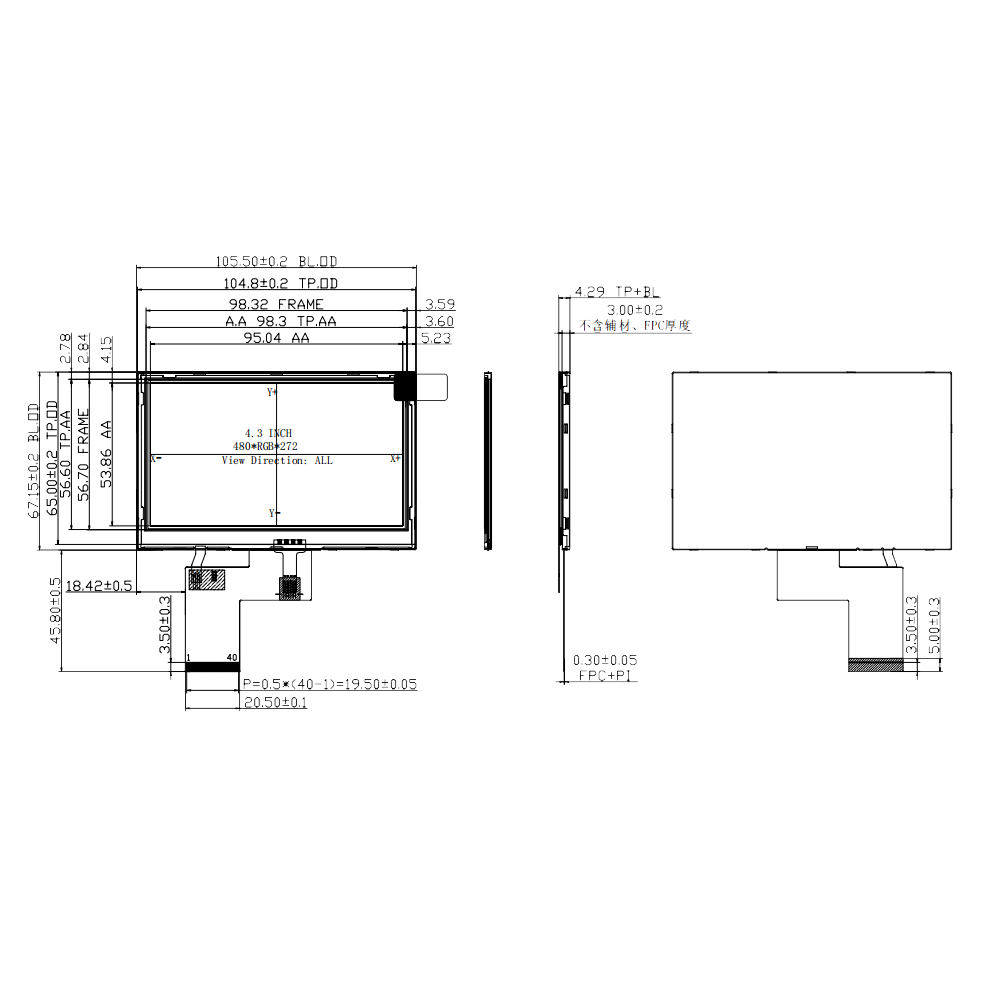

| Outline Dimension (mm) | 105.5*67.15*4.29 |
| Active Area (mm) | 95.04*53.86 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | RGB |
| Backlight | 7*1LED |
| Driving IC | ST7282A-G6-E8A |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Can custom resistive and capacitive touch screen |
| Application | E-Bike, Medical, hand-held device, industrial |
