4.3-inch UART HMI Display Module – 800×480, Touchscreen, Industrial-Grade

Key Specifications

Model: PV043800480-HMI Board

Resolution: 800×480 (WVGA)

Active Area: 95.0 x 53.9 mm

Brightness: 250 nits

Interface: USB/UART (simplified integration)

Touch Options: Resistive/Capacitive (customizable)

Temperature Range: -20°C to +60°C

Connector: 40-pin

Features
Plug-and-Play HMI: Streamlined UART/USB interface for rapid deployment.
Durable Design: Reliable performance in industrial/indoor environments.
Custom Touch: Tailor resistive or capacitive touch to your needs.

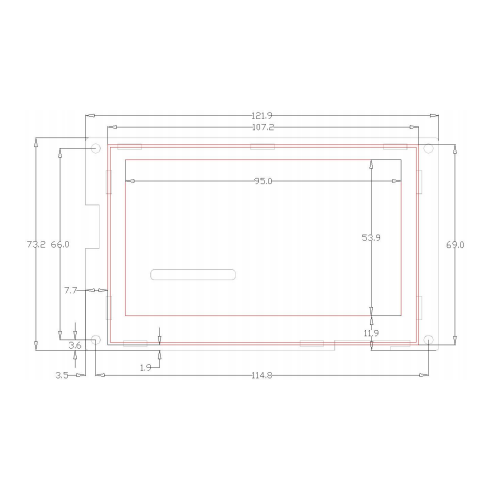

Space-Saving: Slim outline (121.9 x 73.2 mm) for embedded systems.

For product pricing,customization,or other inquiries:

Share to:

Compact 4.3-inch UART HMI module (800×480) with 250nits brightness, USB/UART interface, and customizable touch. Built for industrial/indoor applications.

Applications

Industrial control panels

Smart home appliances

Access control systems

Indoor IoT devices

Why Kingtech?

Stable Supply: Guaranteed stock for bulk orders.

Custom Solutions: Adjust touchscreens, firmware, and more.

Global Compliance: Meets industrial standards.
