Kingtech 5.0” inch 480*854 TFT module display

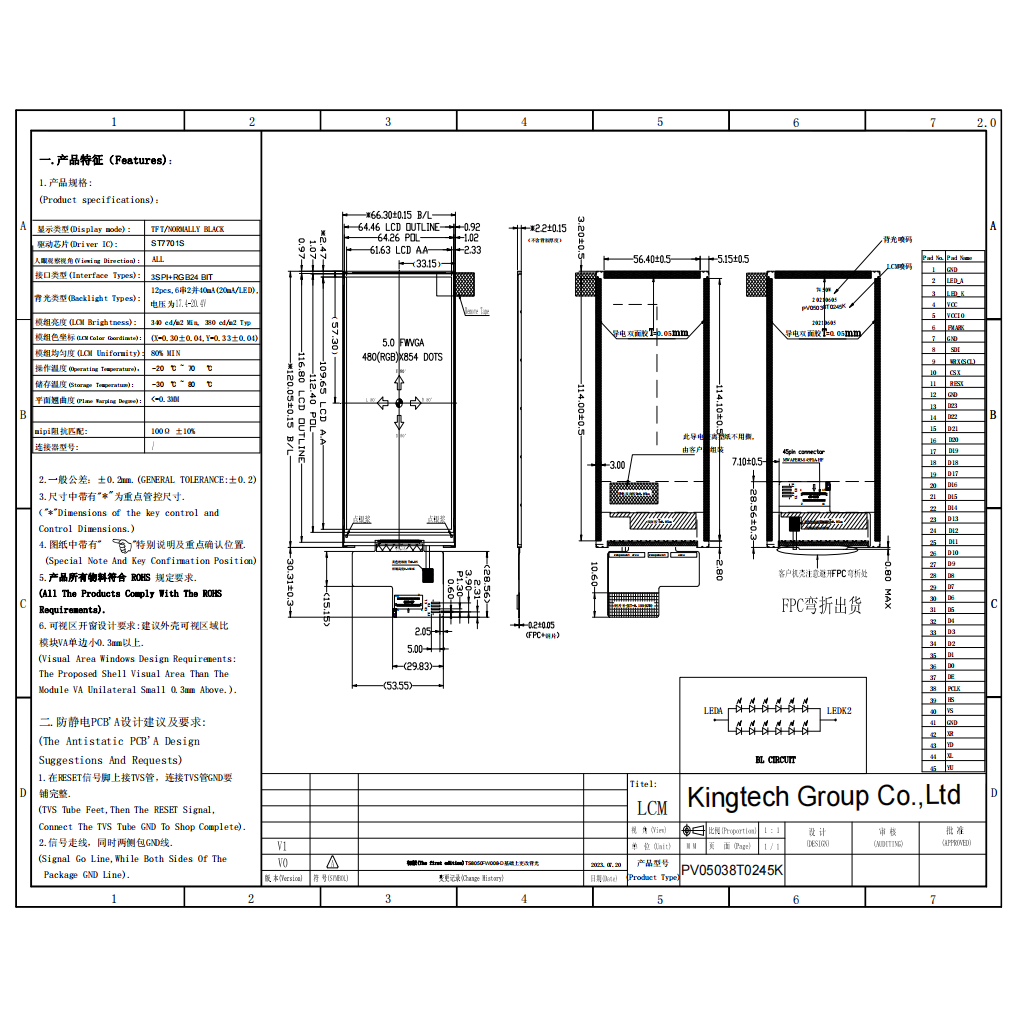

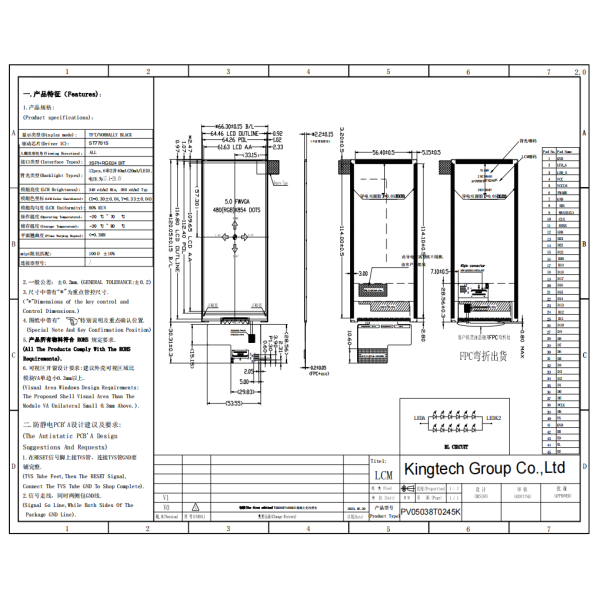

PV05038T0245K 5.0 inch IPS 480*854 display
Model No. PV05038T0245K
Resolution 480*854

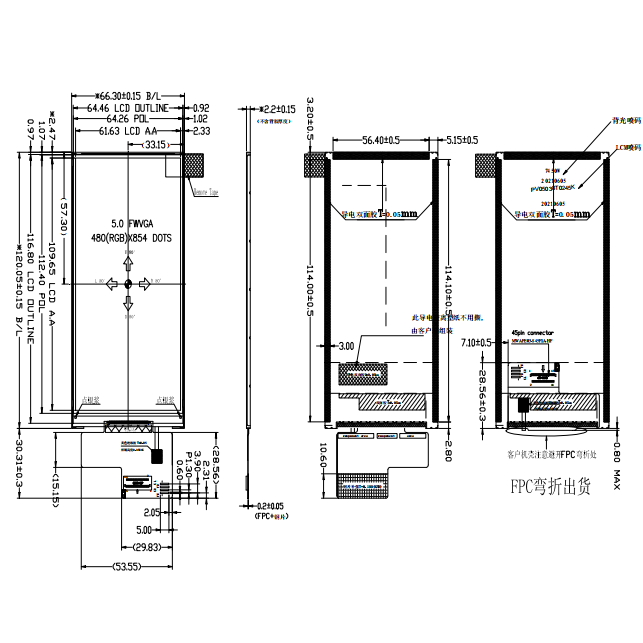

Outline Dimension (mm) 66.30*120.05*2.2
Active Area (mm) 61.56*109.53
Viewing Angle All
Brightness 380nits
Interface 3SPI+RGB24 BIT
Backlight 6*2LED
Driving IC ST7701S
PIN No. 45
Operating Temperature -20~70C
Storage Temperature -30~80C
Touch screen Can custom resistive and capacitive touch screen
Application E-Bike, Medical, hand-held device, industrial

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. Stable supply
  2. Can custom resistive touch and capacitive touch
  3. Display Colors of TFT LCD: 16.7M colors
  4. IPS/All/Free/Wide viewing angle

Kingtech 5.0'' inch 480*854 TFT module display Kingtech 5.0'' inch 480*854 TFT module displayKingtech 5.0'' inch 480*854 TFT module display Kingtech 5.0'' inch 480*854 TFT module display
