Kingtech 5.0 inch 800*480 TFT module display supply very stable

• Model: PV05035H0540G

• Display Type: 5.0-inch IPS TFT LCD

• Resolution: 800×480

• Active Area: 108mm x 64.8mm

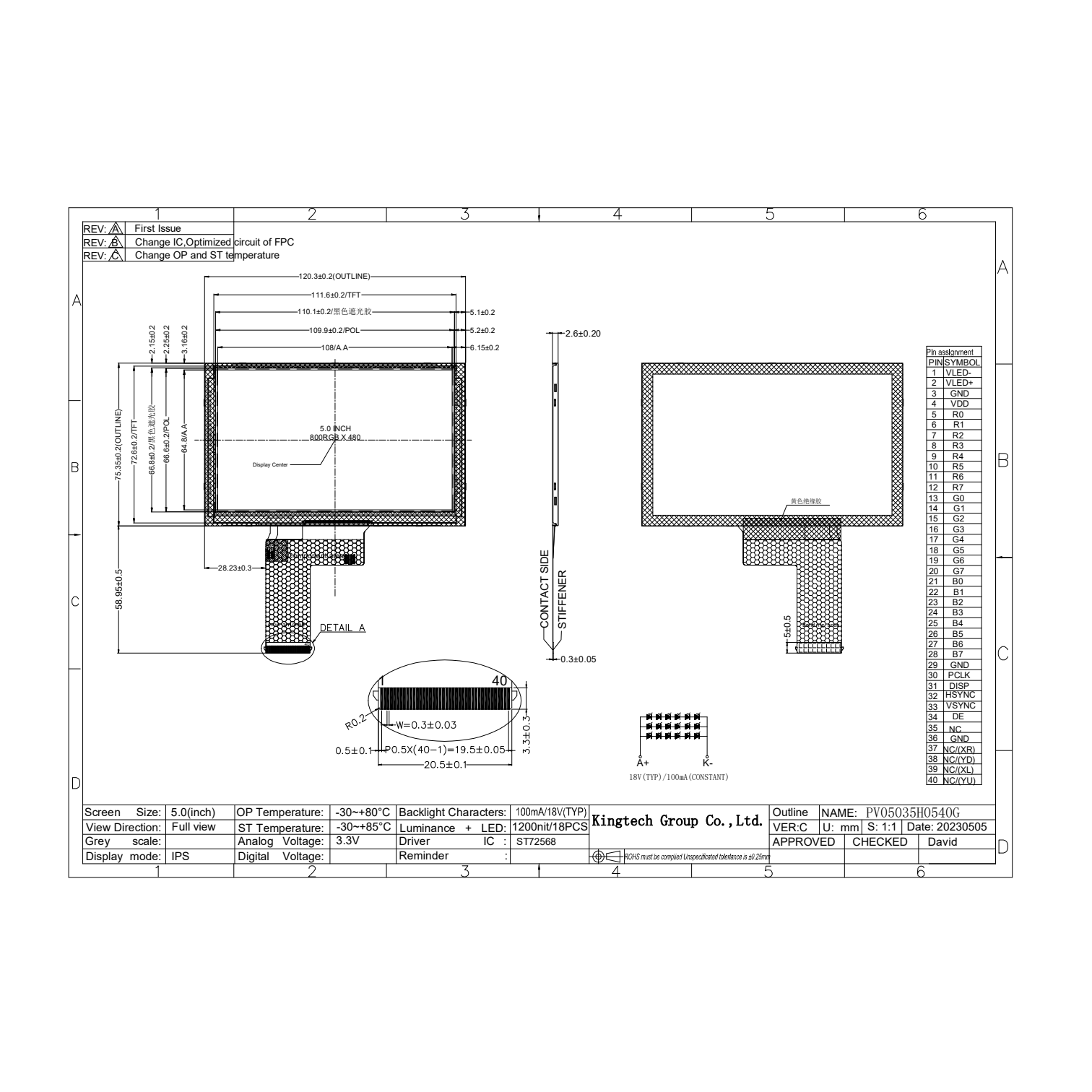

• Outline Dimensions: 120.3mm x 75.35mm x 2.6mm

• Interface: RGB

• Backlight: 6*3 LEDs

• Brightness: 1200nits (High brightness for clear outdoor visibility)

• Driving IC: ST72568

• PIN Number: 40

• Viewing Angle: All (Wide viewing angle for clear visibility from any direction)

• Operating Temperature: -30°C ~ 80°C

• Storage Temperature: -30°C ~ 85°C

• Touch Screen Options: Customizable resistive and capacitive touch screens

Key Features:

• High Brightness: With 1200nits brightness, this display ensures clear, vibrant visuals even in bright environments, ideal for outdoor and industrial use.

• Wide Viewing Angle: IPS technology provides excellent color accuracy and brightness consistency, allowing for clear viewing from various angles.

• Flexible Touch Options: Customizable touch technology with options for resistive (durable, reliable) or capacitive (responsive, smooth interaction) touchscreens to suit various applications.

• Durable Temperature Range: The display is designed to operate in harsh environments with an operating temperature range of -30°C to 80°C, and it can be stored in temperatures from -30°C to 85°C.

• Compact Design: The slim profile and compact size make it an ideal choice for devices with limited space.
