Key Specifications

Model No.: PV05015Y0140R

Screen Size: 5.0 inches (Active Area: 108 x 64.8 mm | Outline: 120.7 x 75.8 x 2.90 mm)

Resolution: 800 x 480 pixels

Brightness: 400–1000 nits (adjustable for indoor/outdoor use)

Viewing Angle: 12 o’clock orientation

Interface: 24-bit Parallel RGB (supports fast data transmission)

Backlight: 6×2 LED array (long lifespan, uniform illumination)

Driving IC: ILI6122 + ILI5960 (optimized for smooth graphics rendering)

Touch Options:

Resistive Touch Screen (cost-effective, stylus-compatible)

Capacitive Touch Screen (multi-touch support, enhanced durability)

Operating Temperature: -20°C to +70°C

Storage Temperature: -30°C to +80°C

Connector: 40-pin interface (easy integration)

Key Features
High Stability & Durability: Designed for 24/7 operation in harsh environments (medical, industrial).
Wide Temperature Range: Reliable performance in extreme cold or heat.
Dual Touch-Screen Options: Flexibility to meet resistive or capacitive input requirements.
Ultra-Bright Display: 1000 nits brightness ensures visibility in direct sunlight.
24-bit RGB Interface: True-color reproduction for detailed graphics.
Compact & Slim Profile: Space-saving design (2.9 mm thickness) for embedded systems.

For product pricing,customization,or other inquiries:

Share to:

Description

Product Overview

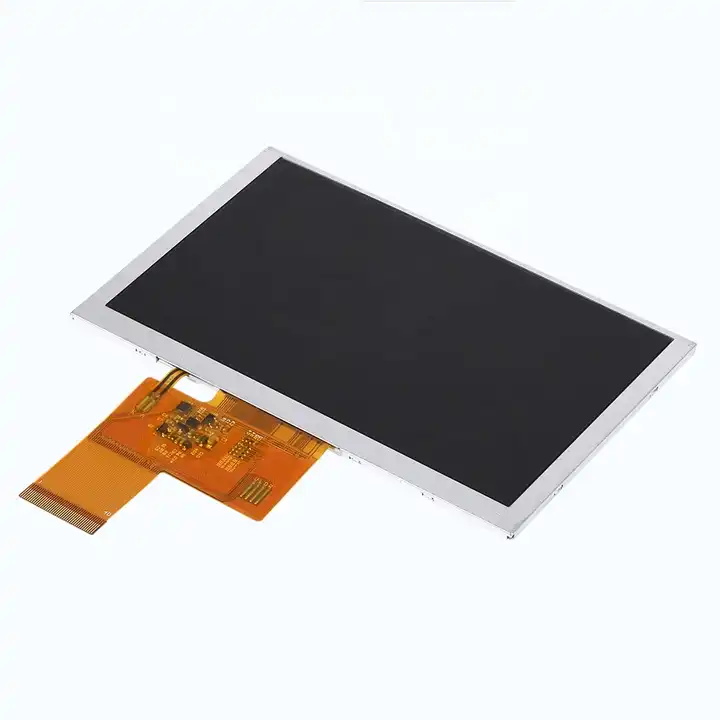

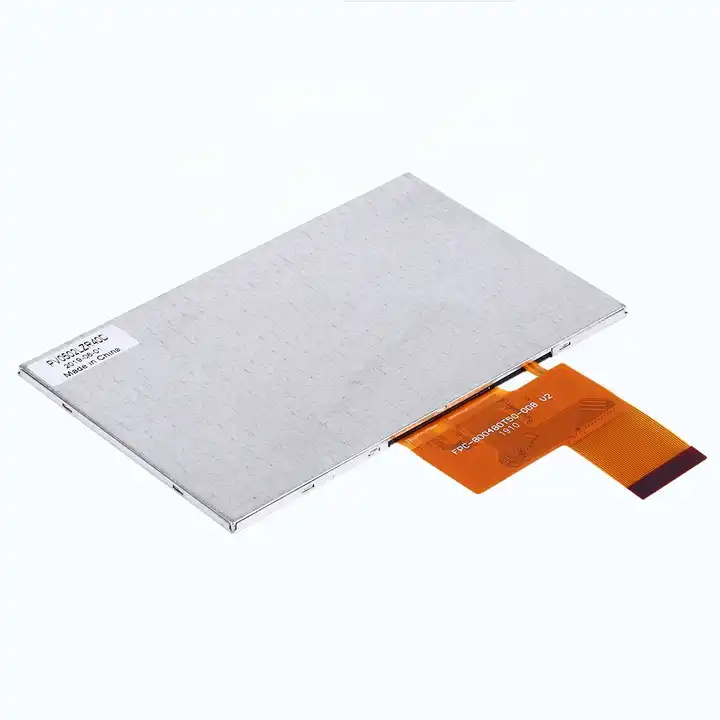

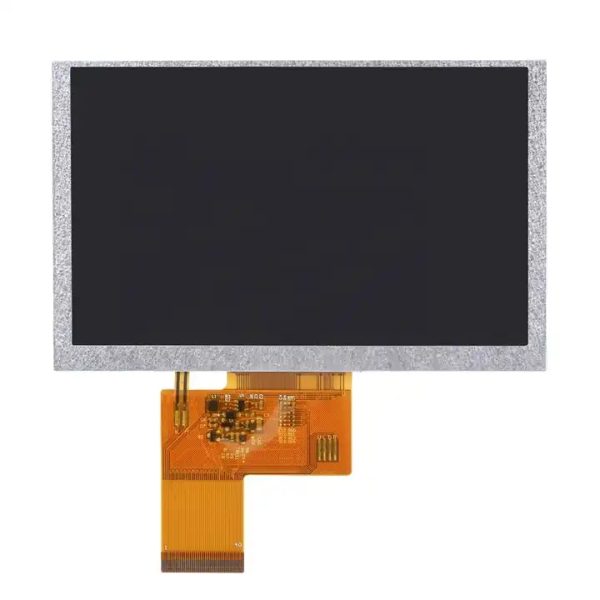

The Kingtech 5.0-inch TFT LCD Module (Model: PV05015Y0140R) is a high-performance display solution engineered for reliability and versatility in demanding industrial, medical, and commercial environments. With a resolution of 800×480 pixels, robust brightness up to 1000 nits, and dual touch-screen compatibility, this module delivers crisp visuals and seamless interactivity for mission-critical applications.

Target Applications

Medical Devices: Patient monitors, diagnostic equipment.

Industrial HMI: Control panels, automation systems, PLC interfaces.

POS & Kiosks: Retail terminals, self-service machines.

Smart Home Appliances: IoT displays, HVAC controls.

Transportation: Fleet management systems, navigation devices.

Why Choose Kingtech?

Stable Supply Chain: Guaranteed inventory and on-time delivery.

Customization Support: Optional touch-screen configurations, firmware tuning.

Compliance Ready: Meets industrial-grade EMI/EMC standards.

Technical Support: Dedicated engineering team for integration assistance.

Ordering Information

Base Unit: 5.0-inch TFT LCD Module (PV05015Y0140R).

Touch-Screen Options: Specify resistive or capacitive when ordering.

MOQ: Contact for bulk pricing and lead times.

Contact Us Today

Ideal for OEMs and system integrators seeking a rugged, high-visibility display with seamless integration.
