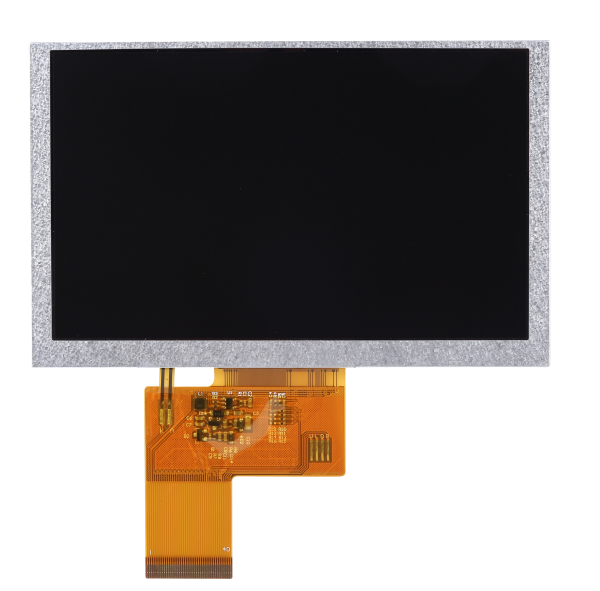

Kingtech 5.0 inch LCD module IPS TFT LCD Module

• Model: PV05034H0140F

• Display Type: 5.0-inch IPS TFT LCD

• Resolution: 800×480

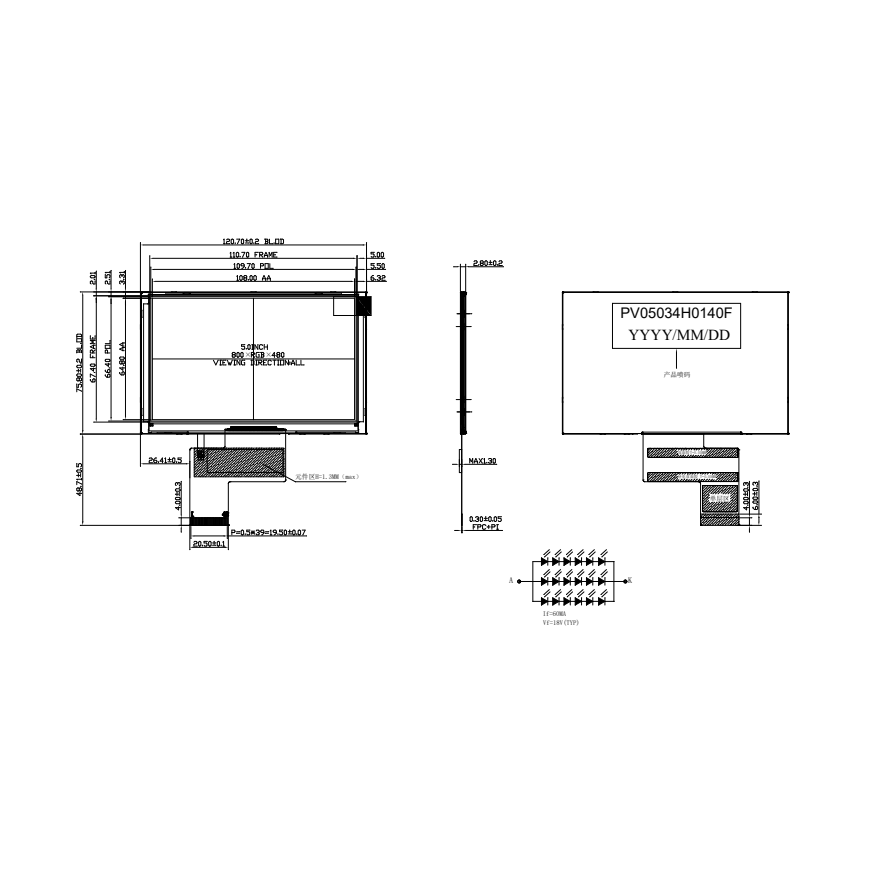

• Active Area: 108.00mm x 64.80mm

• Outline Dimensions: 120.70mm x 75.80mm x 2.8mm

• Interface: RGB (24-bit)

• Backlight: 6*3 LEDs

• Driving IC: ST7262

• PIN Number: 40

• Viewing Angle: All (Wide viewing angle for superior clarity from any direction)

• Operating Temperature: -20°C ~ 70°C

• Storage Temperature: -30°C ~ 80°C

• Touch Screen Options: Supports both resistive and capacitive touch technologies for versatile interaction

• Backlight Lifetime: 20,000 hours+ for long-term, reliable use

Key Features:

• IPS LCD Technology: Provides superior color accuracy and wide viewing angles (80° from all directions), ideal for applications requiring clear, high-quality visuals.

• High Resolution: With a resolution of 800×480, this module delivers sharp, detailed graphics, perfect for medical, industrial, and handheld device applications.

• Flexible Touch Screen: The module supports both resistive touch (for durability and accuracy in harsh environments) and capacitive touch (for fast and responsive user interaction), offering customization to meet different user needs.

• RGB Interface: The 24-bit RGB interface ensures excellent color reproduction and high image quality, making this module suitable for professional and industrial equipment.

• Wide Temperature Range: The display operates effectively in temperatures ranging from -20°C to 70°C, with a storage range from -30°C to 80°C, ensuring reliable performance in both standard and harsh environments.

• Long-lasting Backlight: The LED backlight offers excellent brightness and has a lifespan of over 20,000 hours, providing durability in demanding applications.
