Kingtech 5.0inch TFT colorful LCD module High brightness 1000nits IPS

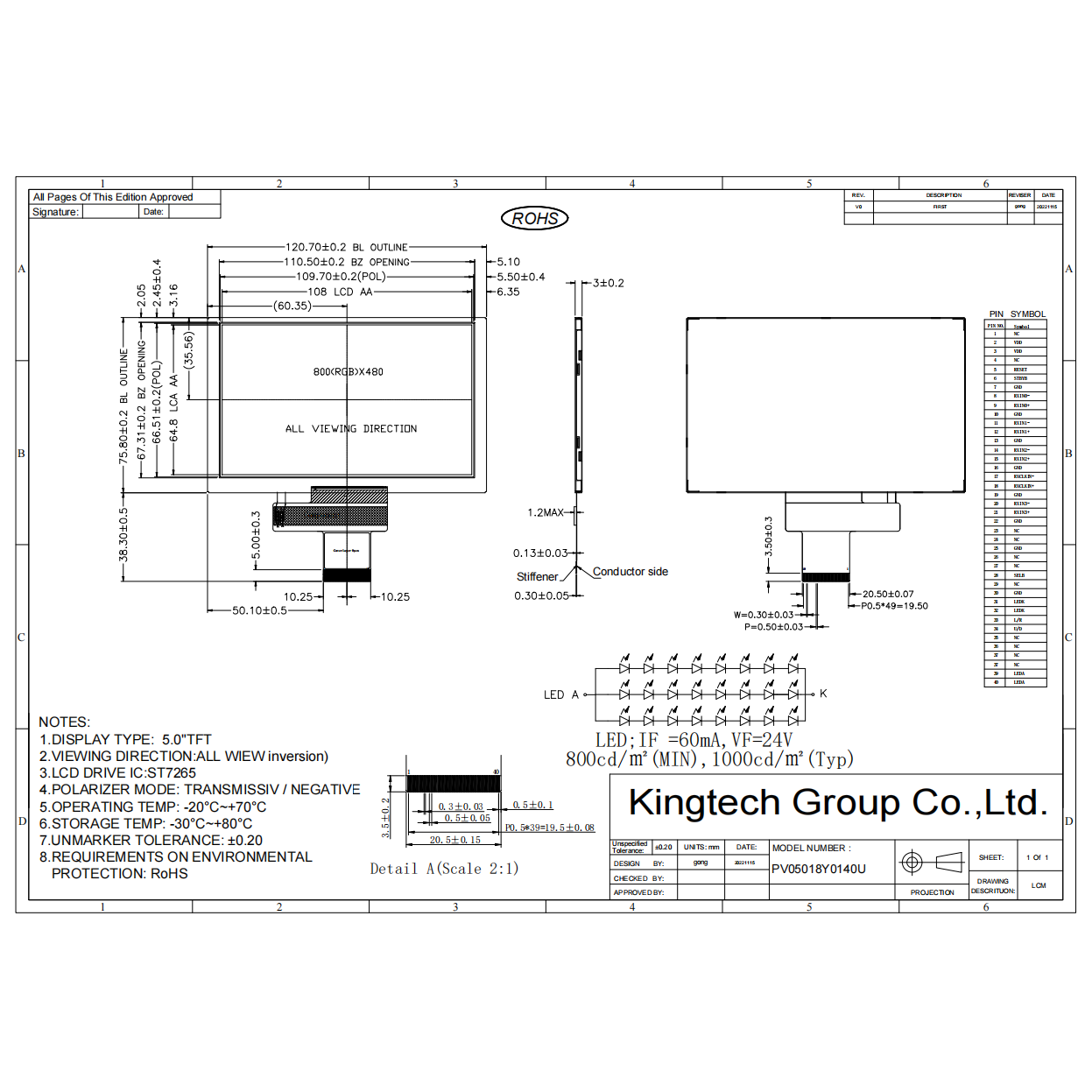

| Item | High brightness 5.0inch 800×480 IPS LCD with LVDS |
| Model No. | PV05018Y0140U |
| Resolution | 800*480 |
| Outline Dimension (mm) | 120.9*76.05*2.95 |
| Active Area (mm) | 108*64.8 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 18 LEDs |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -30~85C |
| Touch screen | Resistive Touch and Capacitive Touch |
| Application | Outdoor application, handheld device, E-bike, industrial, Medical, EV-Chargers. |
For product pricing,customization,or other inquiries:
Share to:
- 5.0inch IPS LCD
- High brightness / 1000nits/ Outdoor /Sunlight readable
- All/Wide/Free viewing angle
- LVDS interface 40pins
- Capacitive Touch or resistive touch optional
- Wide operating temperature /-30~+85C
Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.
To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.
As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
