Kingtech 5.0inch WVGA TFT colorful LCD module

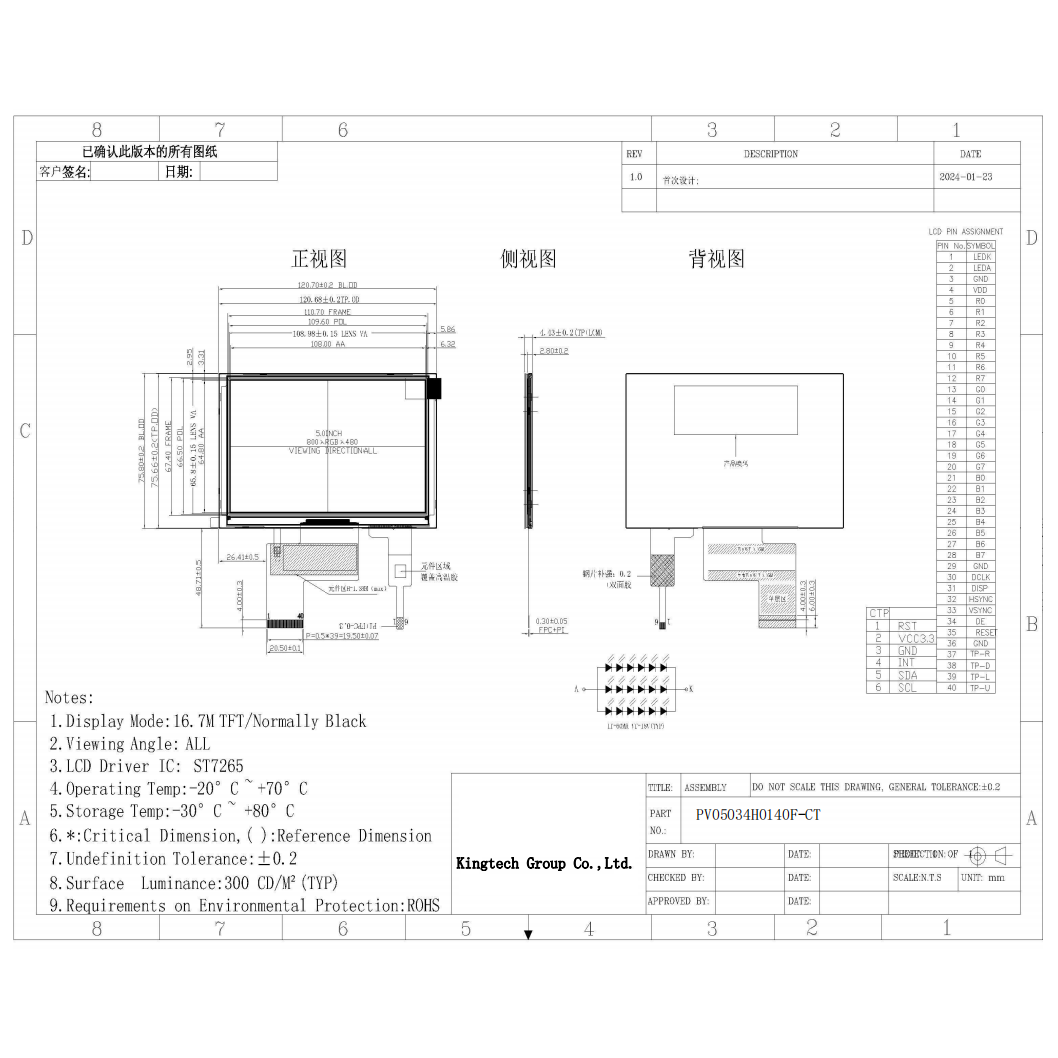

| Item | 5.0inch IPS 800×480 RGB LCD with capacitive touch |
| Model No. | PV05034H0140F-CT |
| Resolution | 800*480 |

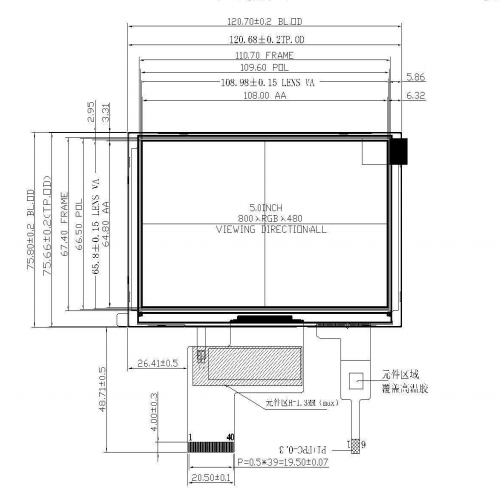

| Outline Dimension (mm) | 120.70*75.80*4.43 |
| Active Area (mm) | 108.00*64.80 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | RGB Interface |
| Backlight | 6*3LEDs |
| Driving IC | ST7265 |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Capacitive touch with GT911, I2C for optional |
| Application | Industrial, Medical, POS, Portable device, PLC control, Smart Home |
For product pricing,customization,or other inquiries:
Share to:
- 5.0inch IPS LCD
- WVGA resolution
- RGB interface 40pins
- Can make 1000nits high brightness for outdoor device
- Capacitive Touch or resistive touch optional
