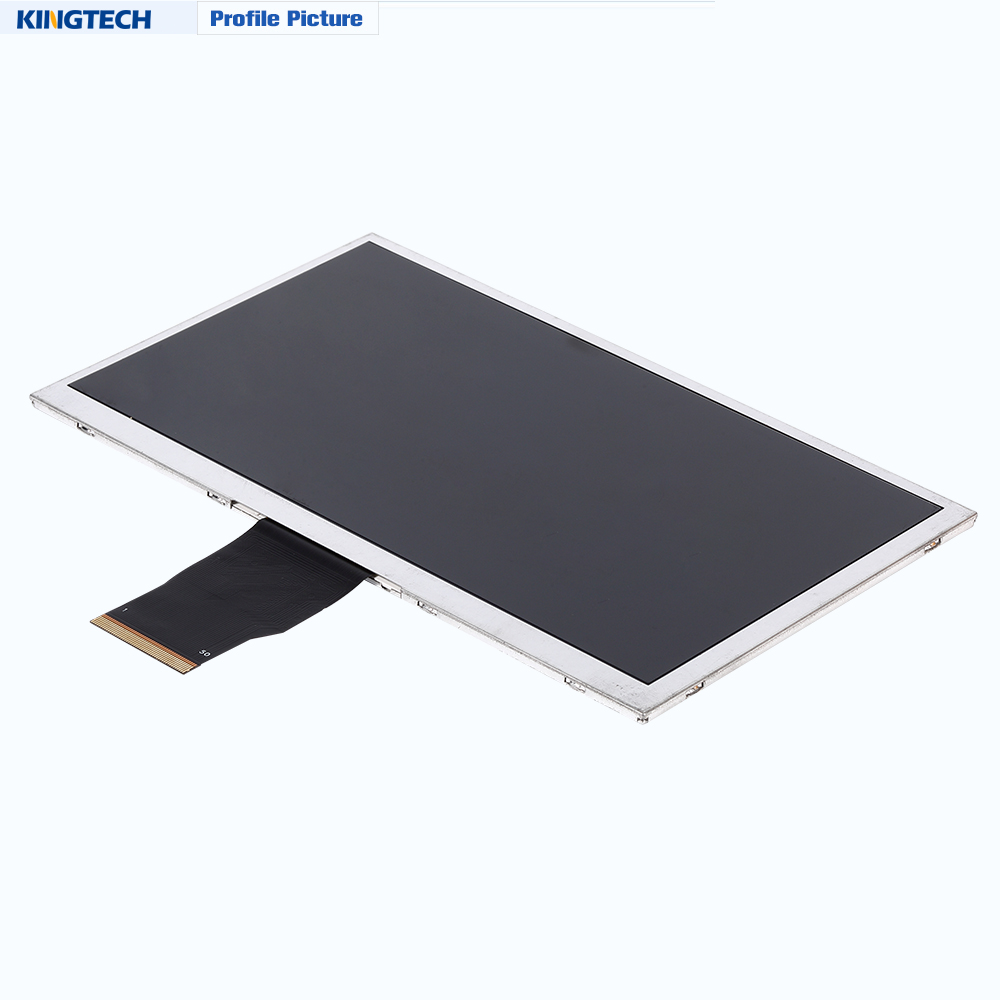

Kingtech 7.0” color TFT liquid crystal display (LCD) with a module size of 164.8*100*2.8mm
| Item | 7.0 inch TFT 1024×600 module display |
| Model No. | PV07056Y0130H |
| Resolution | 1024*600 |

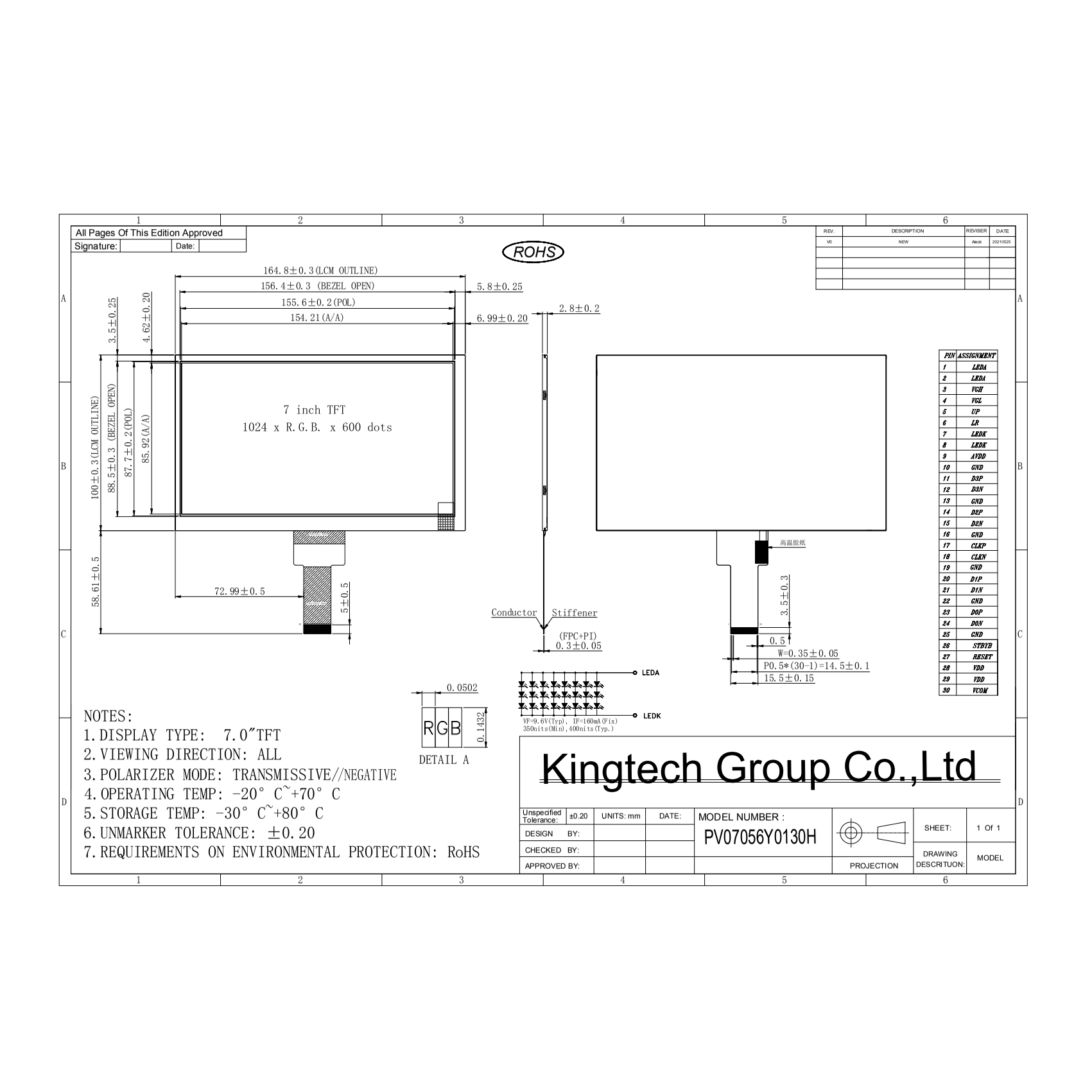

| Outline Dimension (mm) | 164.8*100*2.8 |
| Active Area (mm) | 154.21*85.92 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | MIPI Interface |
| Backlight | 3*8LED |
| Pin nums | 30 |
| Driving IC | / |
| PIN No. | 30 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Advertising display, medical, automotive, IoT, home application, Gas equipment, Medical, Industrial control, Elevator, Car automation, Surveillance video. |
For product pricing,customization,or other inquiries:
Share to:
- 7.0 inch TFTLCD display
- 1024×600
- Stable supply
- Full/All/IPS/Wide Viewing angle
- MIPI Interface
- 400nits brightness
- Without/with touch
- Advertising display, medical, automotive, IoT, home application,Gas equipment, Medical, Industrial control, Elevator, Car automation, Surveillance video
Kingtech is one of the leading TFT LCD display OEM/ODM manufacturers in China since 2003. Customization is allowed for projects such as industrial devices, medical, POS, logistics devices, smart home applications and etc.
To provide a one-stop LCD display solution. During the last 17 years, based on LCD manufacturing as our center, we gradually expand to the TFT capacitive touchscreen, driving board, software hardware design, and complete industrial computer solution.
As a professional LCD screen supplier/ LCD display supplier/ LCD panel company/ LCD module manufacturer, Kingtech LCD aims to provide a one-stop service and solve your problems. With a strong LCD Display module R & D team and strict quality management of IS09001, IS01400ATF16949 certificates.
