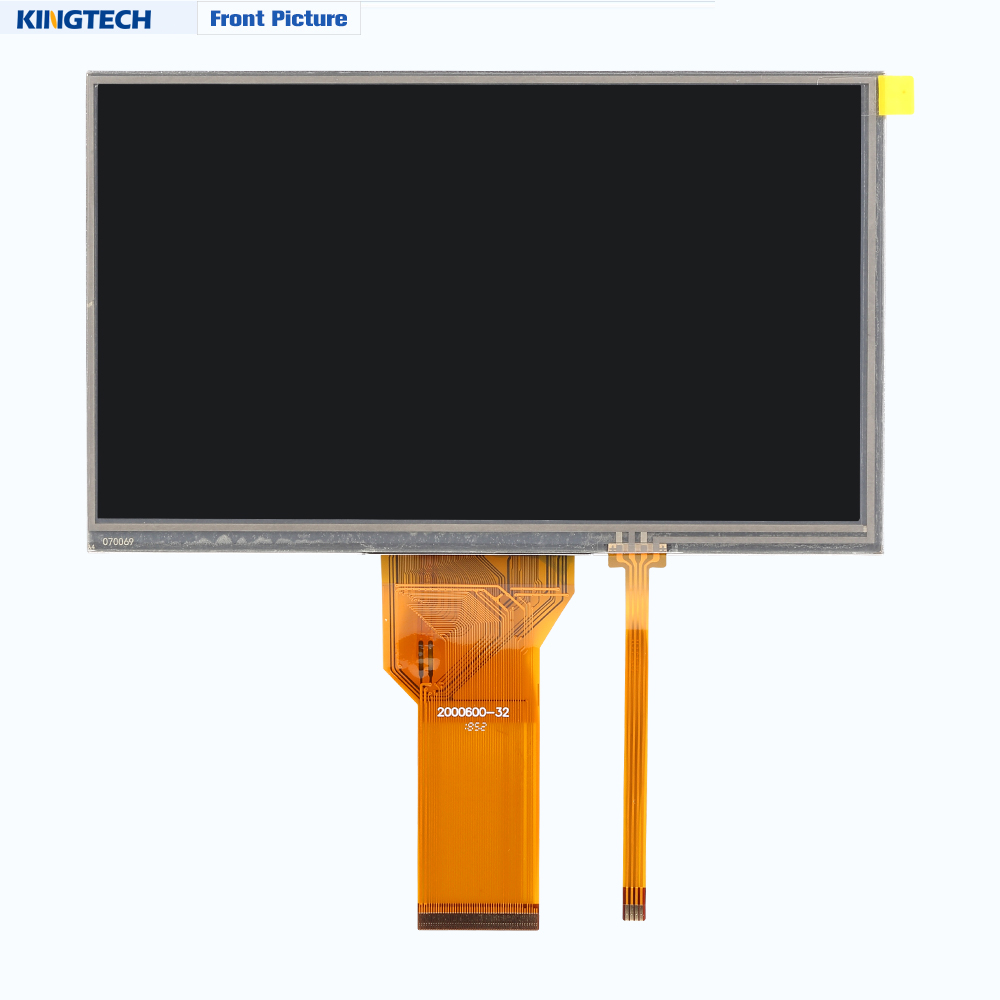

Kingtech 7.0 inch LCD module TN LCD panel

• Model: PV07019LZR40U-R1

• Display Type: 7.0-inch TN LCD Module

• Resolution: 800×480

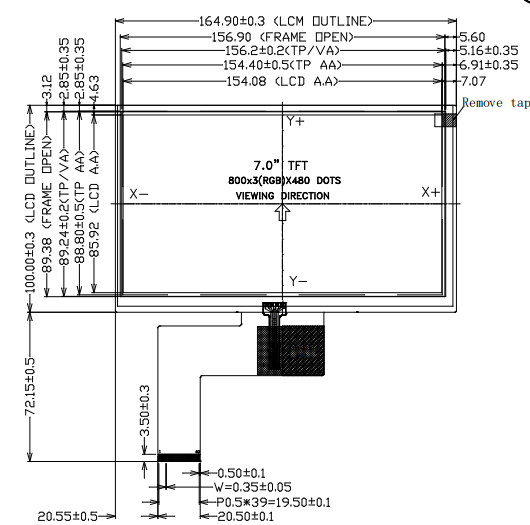

• Active Area: 154.08mm x 85.92mm

• Outline Dimensions: 164.90mm x 100mm x 7.00mm

• Interface: 24-bit RGB (TTL)

• Backlight: 3*9 LEDs

• Brightness: 1000nits (High brightness for outdoor visibility)

• PIN Number: 40

• Driving IC: N/A

• Viewing Angle: 12 o’clock

• Operating Temperature: -20°C ~ 70°C

• Storage Temperature: -30°C ~ 80°C

• Touch Screen Options: Supports resistive touch or capacitive touch

Key Features:

• High Brightness: With 1000nits brightness, this display is perfect for outdoor environments where visibility under direct sunlight is critical.

• Wide Temperature Range: Designed for use in harsh conditions, the display operates from -20°C to 70°C and can be stored between -30°C and 80°C.

• Flexible Touch Options: Supports both resistive touch (ideal for heavy-duty environments) and capacitive touch (for responsive, smooth user interaction), offering versatility depending on your application.

• Outdoor Readability: Optimized for various outdoor applications, ensuring high visibility even in bright sunlight.

• RGB Interface: The 24-bit RGB (TTL) interface provides excellent color reproduction, ideal for video surveillance, automotive, and industrial use.
