Kingtech 7 inch 800×480 dots LCD module IPS TFT LCD
| Item | 7.0 inch IPS 800×480 WVGA LCD module |
| Model No. | PV07041P0120S |
| Resolution | 800*480 |

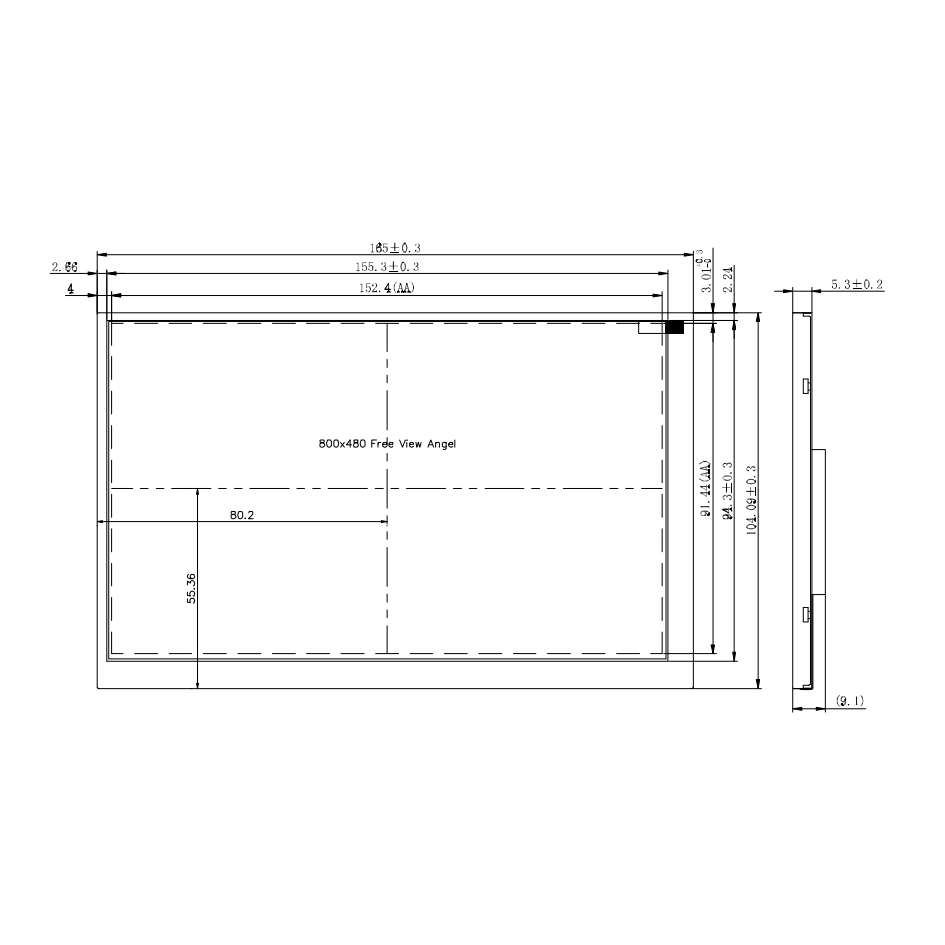

| Outline Dimension (mm) | 165*104.09*5.3 |
| Active Area (mm) | 152.4*91.44 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | 6/8bit LVDS |
| Backlight | / |
| Pin nums | 20 |
| Driving IC | / |
| PIN No. | 20 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~95C |
| Touch screen | Optional |
| Application | Automative, outdoor device,Motorcycle,Transportation |
For product pricing,customization,or other inquiries:
Share to:
Special Ultra-wide temperature LCD crystal
Brightness can be customized/Sunlight readable/High brightness/Outdoor
LVDS interface, fast transmission speed.
Free/All/Full/Wide viewing angle
Fast response time
Wide operating temperature
Reversible scan function
6/8 bit convertible
High Color gamut ( NTSC: 72% )
