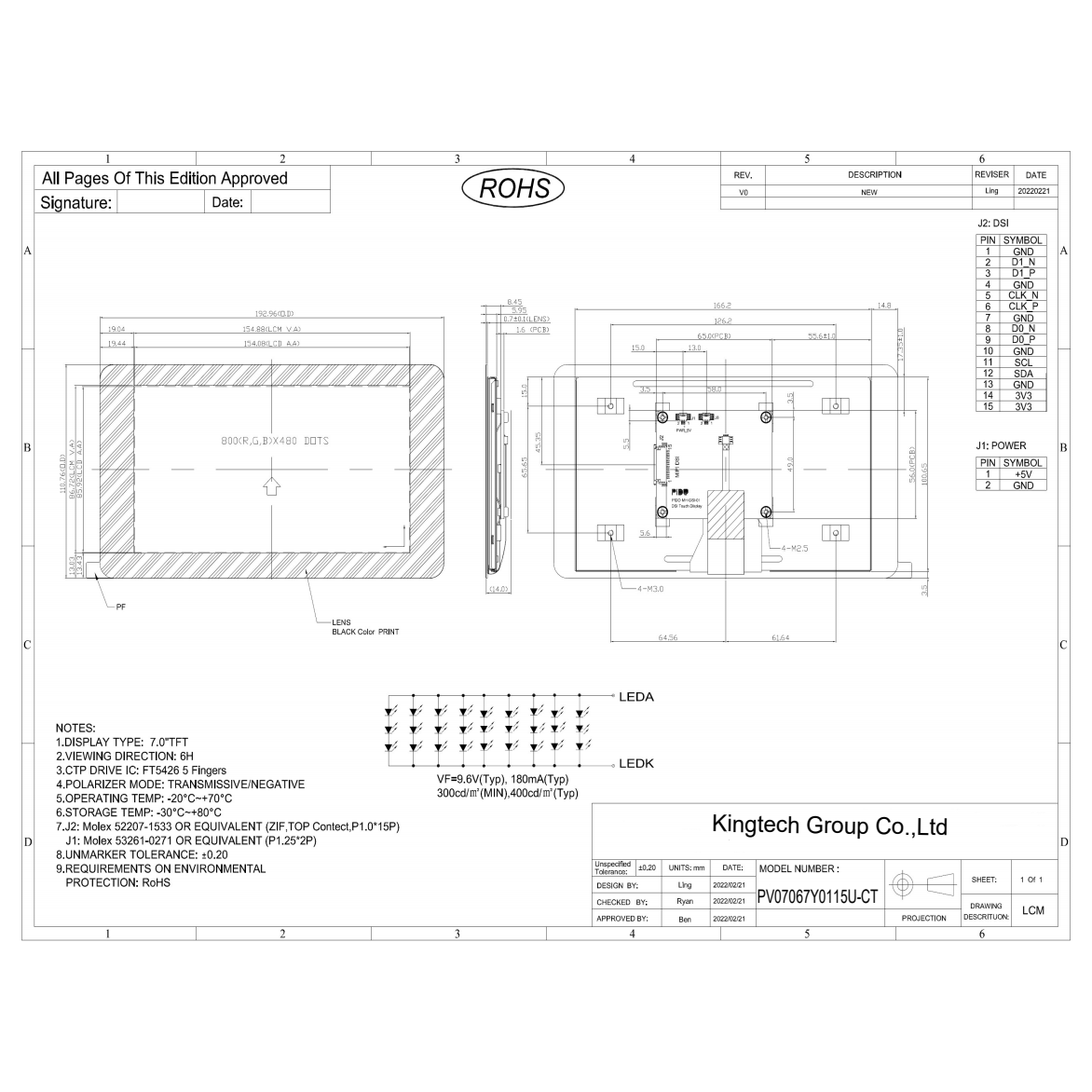

Kingtech 7 inch TFT LCD display with TN technology WVGA 800×480
| Item | 7inch 800*480 landscape LCD with CTP LCD module |
| Model No. | PV07067Y0115U-CT |
| Resolution | 800*480 |
| Outline Dimension (mm) | 192.96*110.76*8.45 |
| Active Area (mm) | 154.08*85.92 |
| Viewing Angle | All |
| Brightness | 400nits |
| Interface | DSI MIPI-2 Lane |
| Backlight | 3*9LED |
| Driving IC | ICN6211 |
| PIN No. | 15 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Resistive touch and capacitive touch optional |
| Application | Medical, hand-held device, industrial, outdoor, advertising, E-bike, meter, vehicle, HMI, POS terminal, thermostat, elevator, video door, automotive and 3D printer. |
For product pricing,customization,or other inquiries:
Share to:
- Classic 7 inch 800×480 LCD
- WVGAresolution
- TN, normally white, Postive display type
- Landscape
- Resistive touch and capacitive touch can be customized.
