Kingtech 8.0inch LCD module TN LCD panel 800x600dots

Key Specifications

Model: PV08011Y0150L-CT

Resolution: 800×600

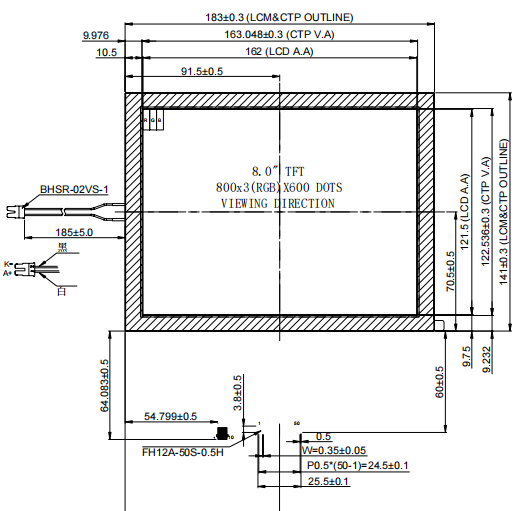

Active Area: 162 x 121.5 mm

Brightness: 850 nits

Interface: 24-bit Parallel RGB

Touch Options: Resistive or Capacitive

Temperature Range: -20°C to +70°C

Backlight: 3×10 LED array (high uniformity)

Connector: 50-pin

Features
Ultra-Bright Display: 850nits for sunlight-readable outdoor applications.
Dual Touch Support: Choose resistive or capacitive for flexibility.
Wide Temperature Tolerance: Stable in extreme environments (-20°C to +70°C).
Industrial-Grade Durability: Shock-resistant design for automotive/transportation use.

For product pricing,customization,or other inquiries:

Share to:

Description

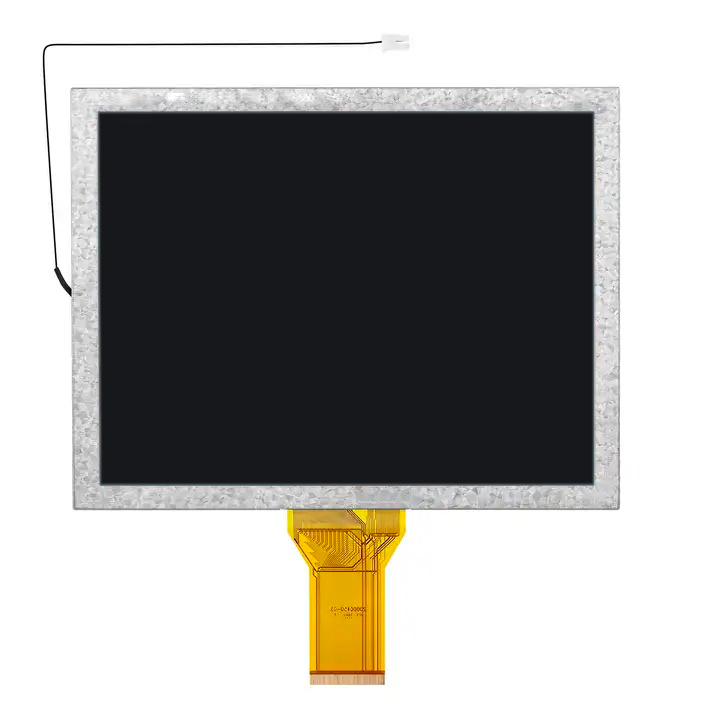

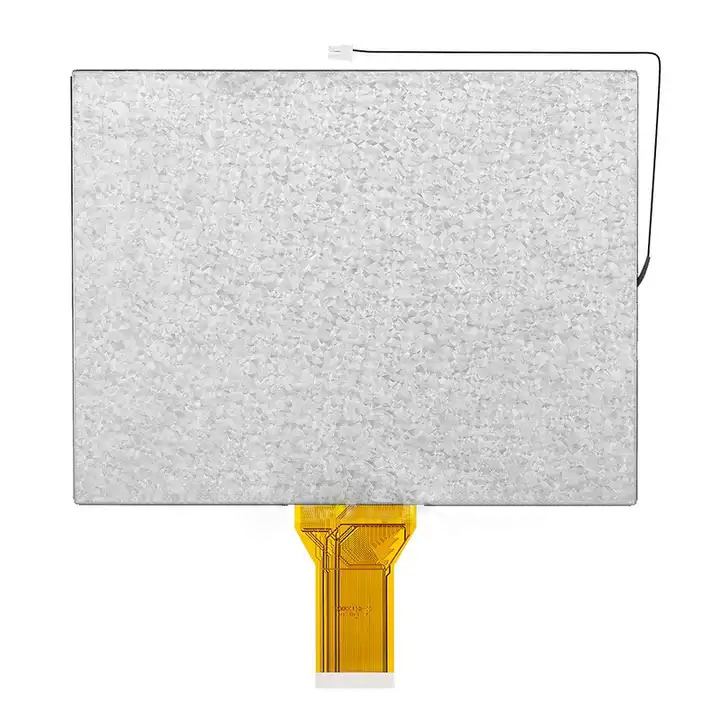

Rugged 8.0-inch TN LCD module (800×600) with 850nits brightness, 24-bit RGB interface, and optional touch. Built for outdoor/automotive use.

Applications

Outdoor surveillance systems

Automotive dashboards/EV displays

Self-service kiosks

Industrial control panels

E-bike dashboards

Why Kingtech?

High Reliability: Tested for 24/7 operation in harsh conditions.

Customizable Touch: Tailor CTP solutions to your project.

Global Compliance: Meets automotive/industrial standards.

Ordering Details

MOQ: Contact for bulk pricing and lead times.

Customization: Optional touchscreen, firmware, and branding.

Ideal for OEMs seeking a high-visibility, rugged display for outdoor and automotive integration.
