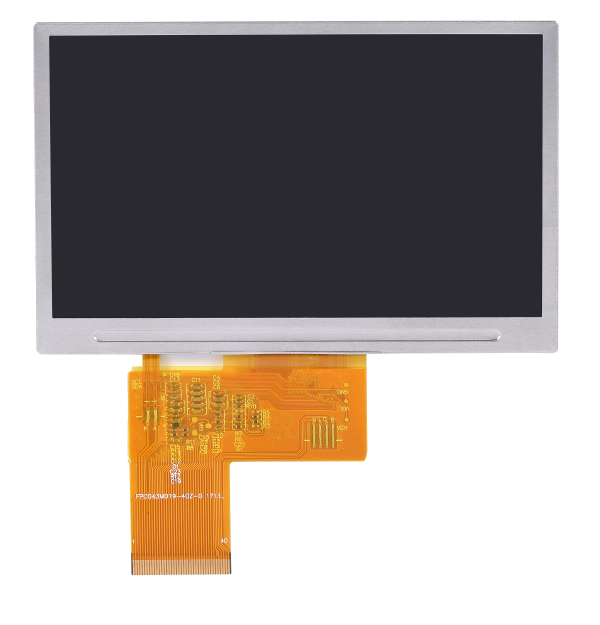

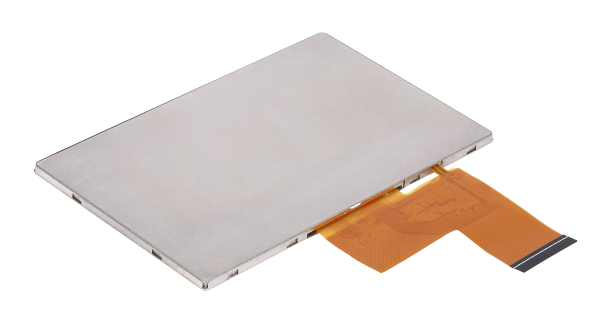

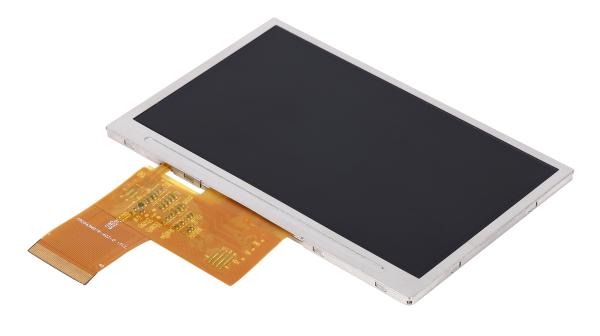

Kingtech PV043021T0140W is a 4.3-inch LCD glass using a-Si TFT-LCD technology

  • Model: PV043021T0140W

  • Display Type: 4.3-inch TFT LCD

  • Resolution: 800×480 (WVGA)

  • Brightness: 500nits to 1000nits

  • Interface: 24-bit RGB

  • Backlight: 5*2 LEDs

  • Driving IC: HX8264D03 + HX8664B

  • PIN Number: 40

  • Viewing Angle: All

  • Operating Temperature: -30°C ~ 85°C

  • Storage Temperature: -40°C ~ 85°C

  • Active Area: 95.04mm x 53.86mm

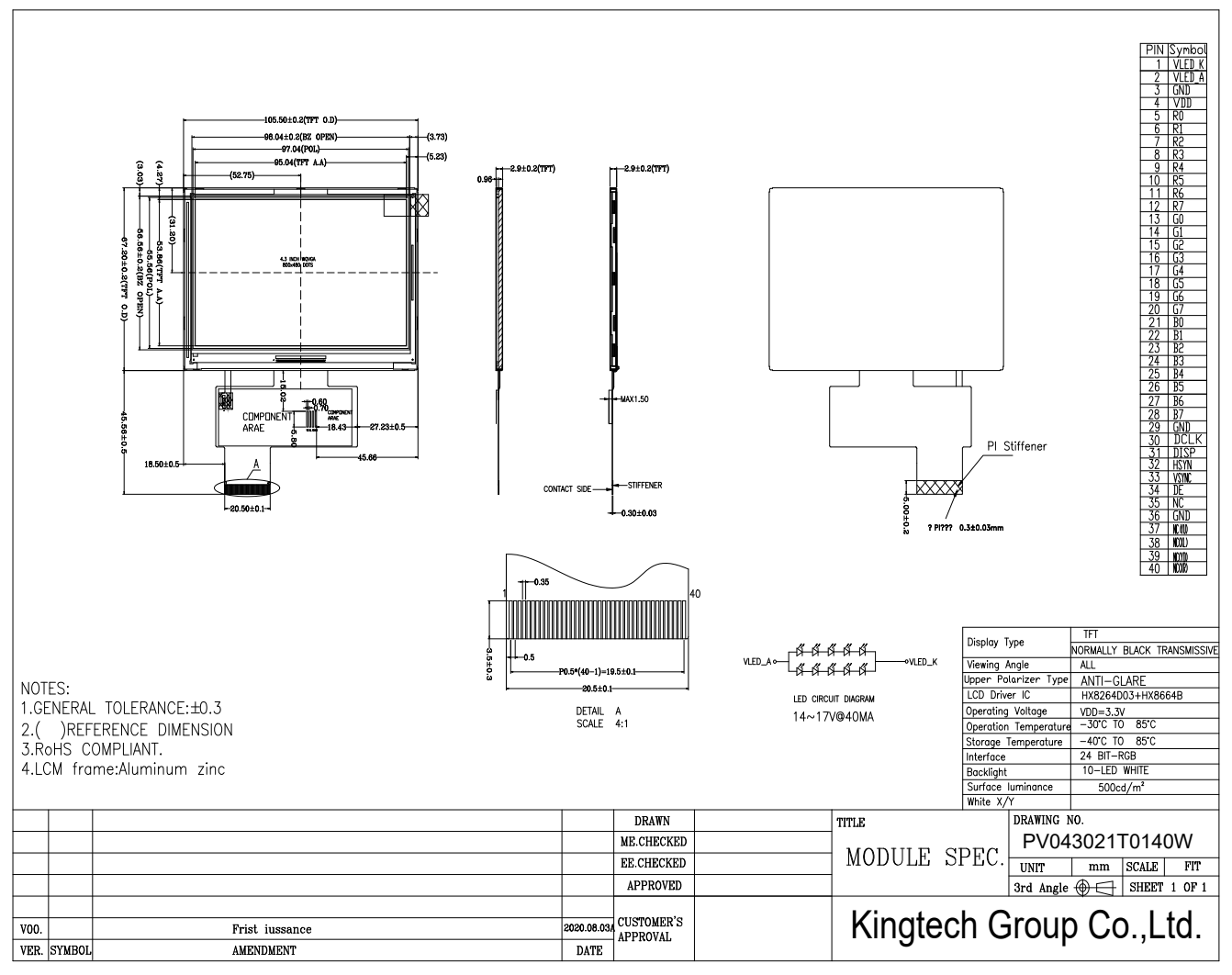

  • Outline Dimensions: 105.5mm x 67.2mm x 2.90mm

  • Touch Screen: Customizable touch screen options available based on customer requirements

For product pricing,customization,or other inquiries:

Share to:

Key Features:

  • High Brightness & Clarity: Offering brightness ranging from 500nits to 1000nits, this display provides clear visibility even in challenging lighting environments.

  • Wide Operating Temperature: Designed to function in extreme temperatures, ranging from -30°C to 85°C, making it ideal for industrial and outdoor applications.

  • Wide Viewing Angle: Ensures consistent color and image clarity from all angles, improving usability in various settings.

  • Durable and Reliable: With an extended storage temperature range of -40°C to 85°C, this display can withstand harsh environmental conditions.

Applications:

  • Household Appliances

  • Portable Navigators

  • Industrial Equipment

  • Automatic Cookers & Coffee Machines

  • Other Custom Applications

Customization Options:

  • Touch Screen Integration: Can be customized based on your specific requirements, offering flexibility for different end-user applications.

  • Contact Us
