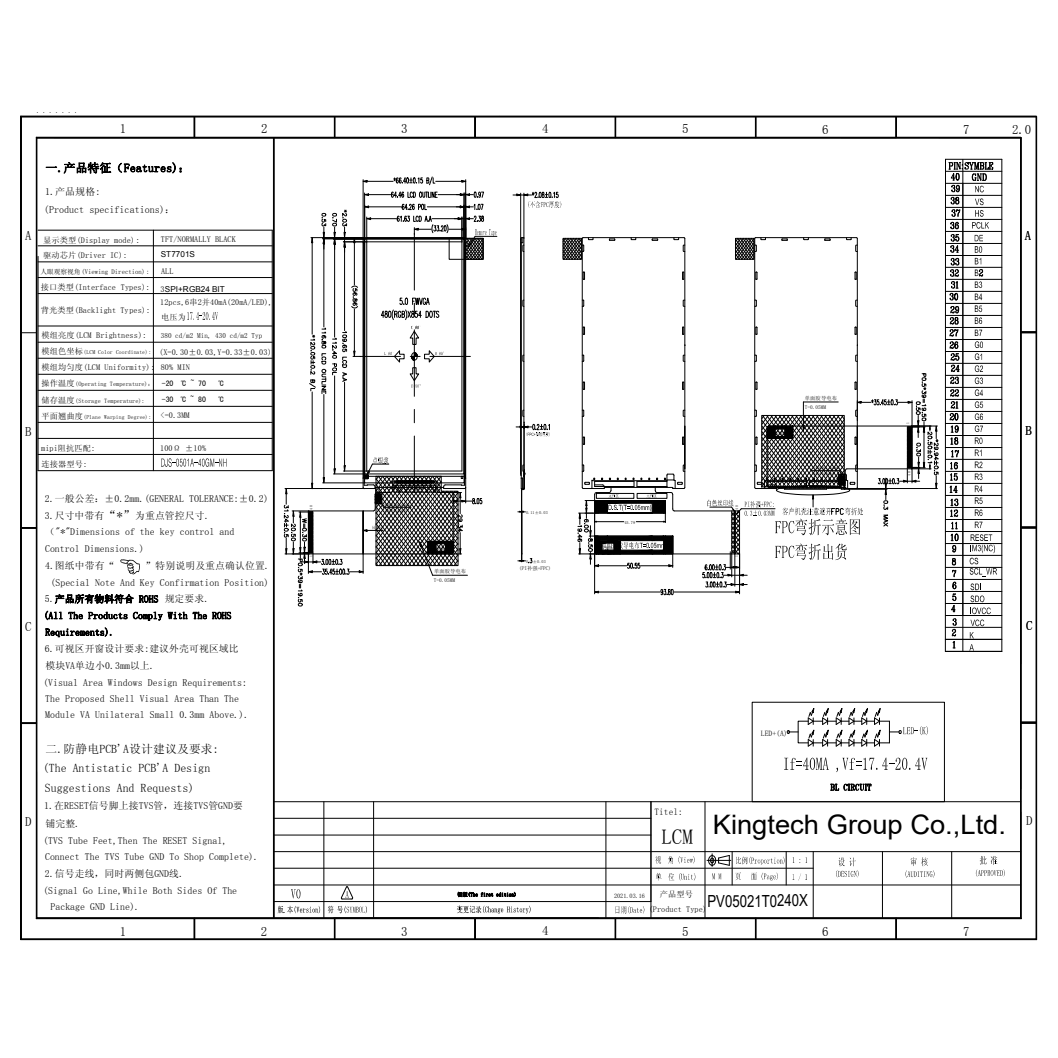

Kingtech PV05021T0240X is a 5.0-inch LCD module product using a-Si TFT-LCD technology.

Outline Dimension (mm) 66.4*120.05*2.08
Active Area (mm) 61.56*109.53
Viewing Angle All
Brightness 430nits
Interface 3SPI+RGB24 BIT
Backlight 6*2LED
Pin nums 40pins
Driving IC ST7701S
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Touch screen without
Application 5.mobile phone,handheld device

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 5.0 inch 480×854 display
  2. 430nits
  3. Stable supply
  4. All/Wide/Full/IPS viewing angle
  5. Applicable for smart home equipment, hand-held device
  6. Touch Optional
