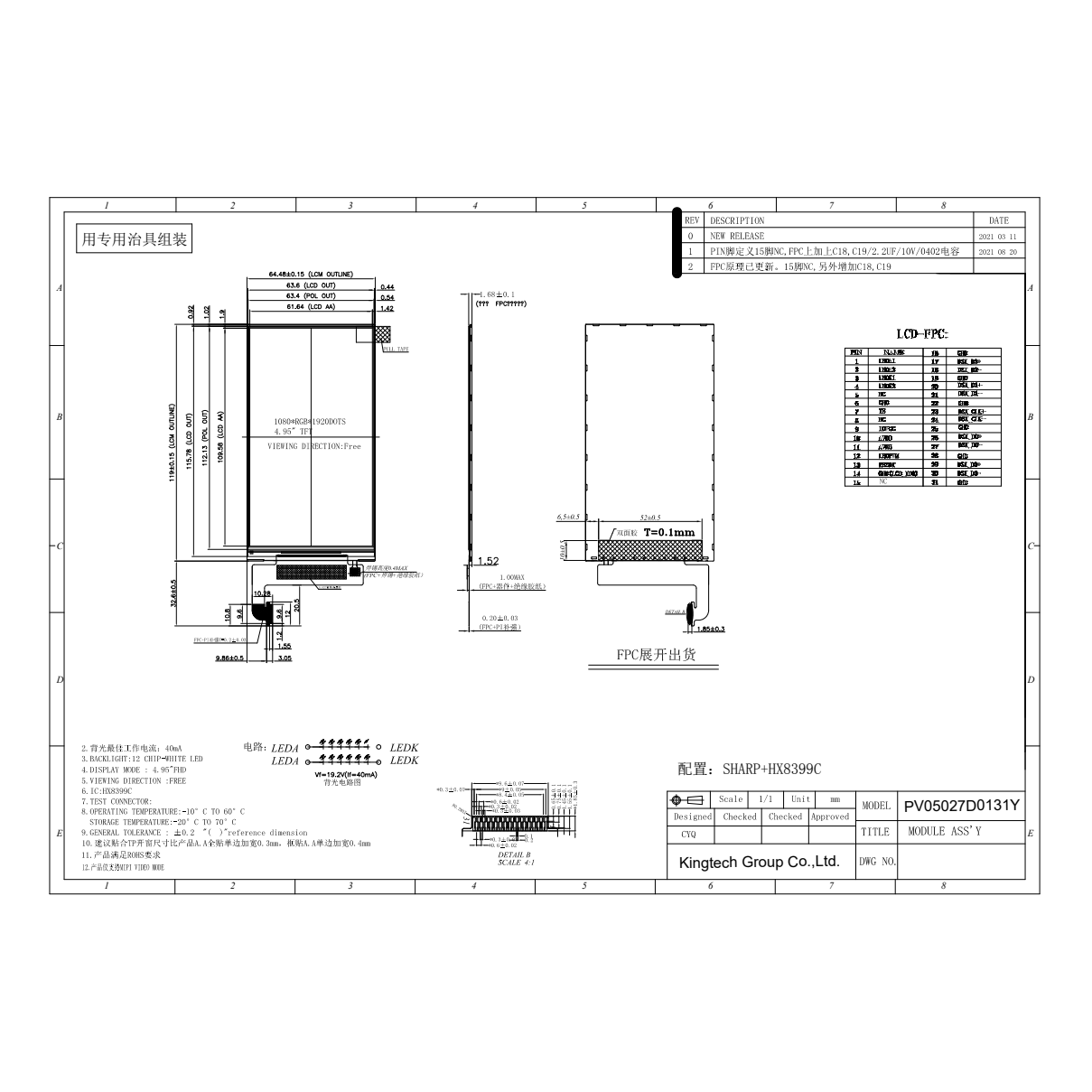

Kingtech PV05027D0131Y is a 4.97 inch 1080*1920 dots LCD module using IPS TFT-LCD technology.
| Item | 4.97inch IPS 1080×1920 module display |
| Model No. | PV05027D0131Y |
| Resolution | 1080*1920 |
| Outline Dimension (mm) | 105.5*67.2*2.90 |
| Active Area (mm) | 61.64*109.58 |
| Viewing Angle | All |
| Brightness | 500nits |
| Interface | MIPI |
| Backlight | 6*2LED |
| Driving IC | HX8399C |
| PIN No. | 31 |
| Operating Temperature | -10~60C |
| Storage Temperature | -20~70C |
| Touch screen | Resistive touch and capacitive touch for optional |
| Application | Mobile phone, telecom device, handheld device, E-bike |
For product pricing,customization,or other inquiries:
Share to:
- 4.97inch 1080*1920 LCD
- Full/Wide/All/IPS viewing angle
- High brightness/Sunlight readable/Outdoor
- Can custom capacitive touch and resistive touch
- Competitive price
