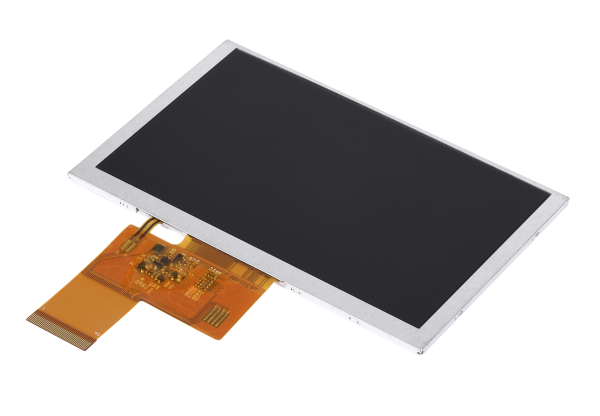

Kingtech PV05029Y0120A-CT is a 5.0 inch LCD module using IPS TFT-LCD technology.
| Item | High brightness 5.0inch 800×480 with capactive touch |
| Model No. | PV05029Y0120A-CT |
| Resolution | 800*480/WVGA |

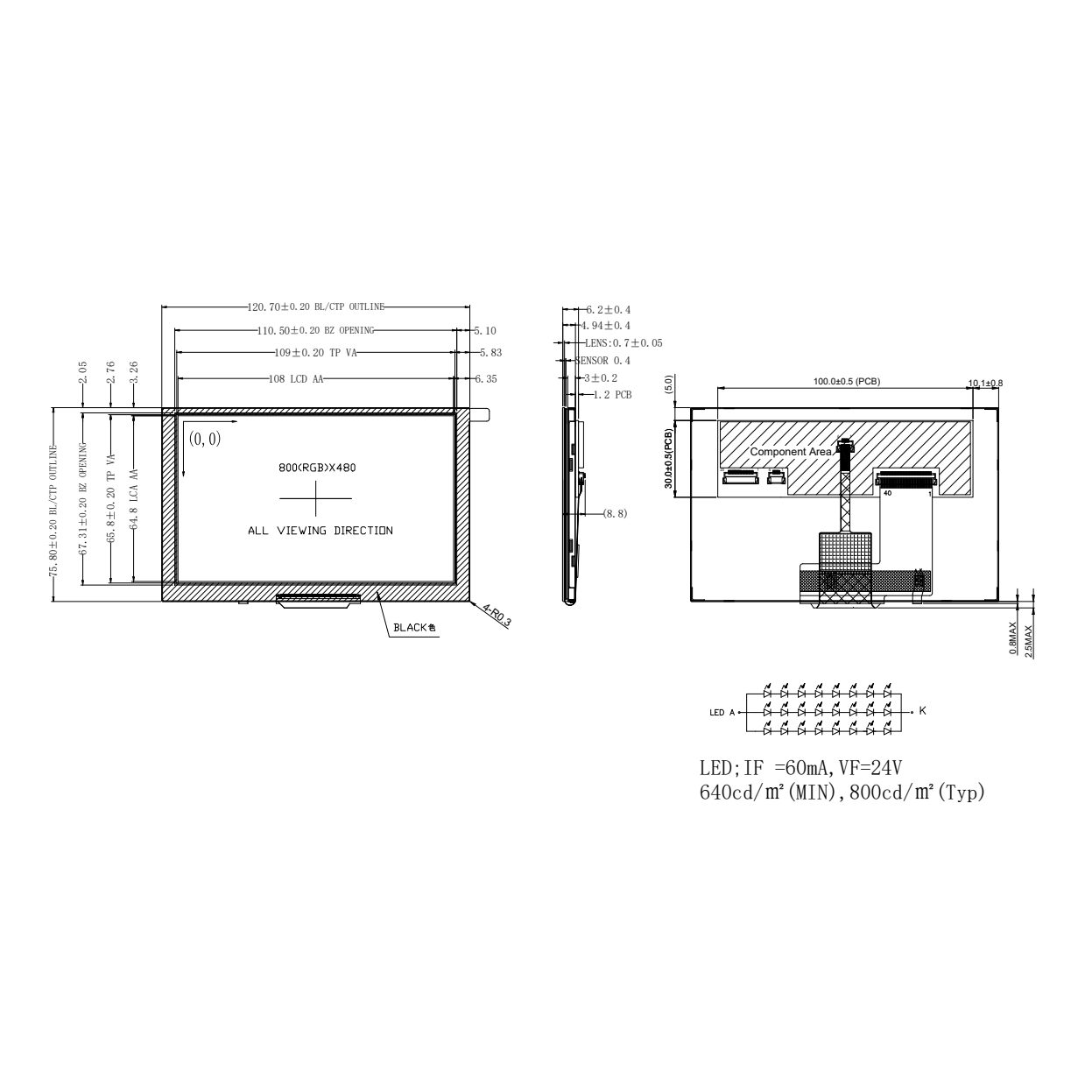

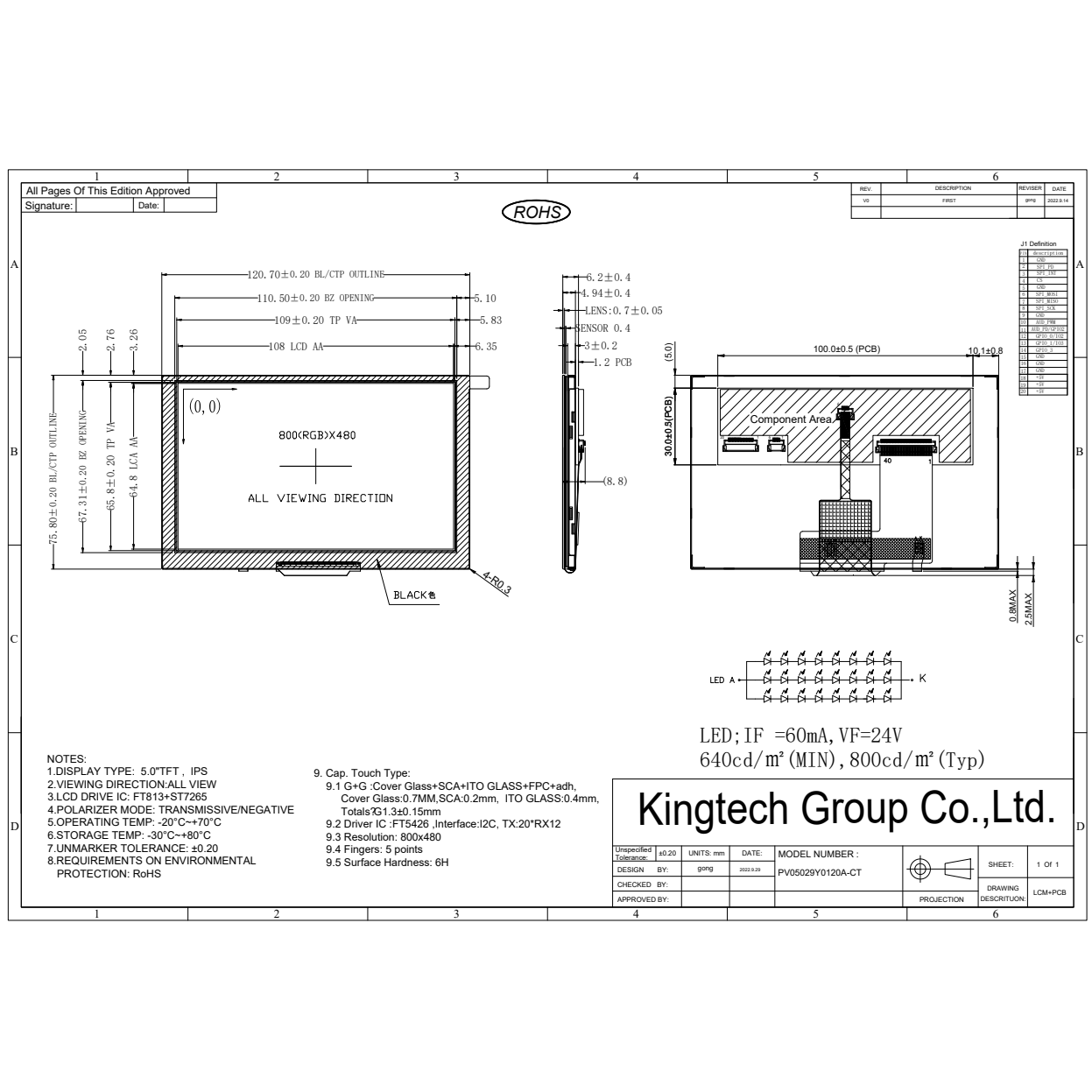

| Outline Dimension (mm) | 120.7*75.8*6.2 |
| Active Area (mm) | 108 *64.8 |
| Viewing Angle | All |
| Brightness | 800nits |
| Interface | 3-wire SPI、4-wire SPI、QSPI interface |
| Backlight | 8*3LED |
| Driving IC | FT813+ST7265/FT5426 |
| PIN No. | 20 |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Touch screen | Support custom capacitive touch and resistive touch |
| Application | Industrial,meter, camera,medical, outdoor device, Security device, Farm machine etc. |
For product pricing,customization,or other inquiries:
Share to:
- 5.0inch 800*480/WVGA display
- High brightness/Sunlight readable/800nits/outdoor
- Stable supply
- All/Wide/Full/IPS viewing angle
- 3-wire SPI、4-wire SPI、QSPI interface
- With capacitive touch
