5.0 inch LCD module using IPS TFT-LCD technology.
5.0 inch LCD module using IPS TFT-LCD technology.
5.0 inch LCD module using IPS TFT-LCD technology.

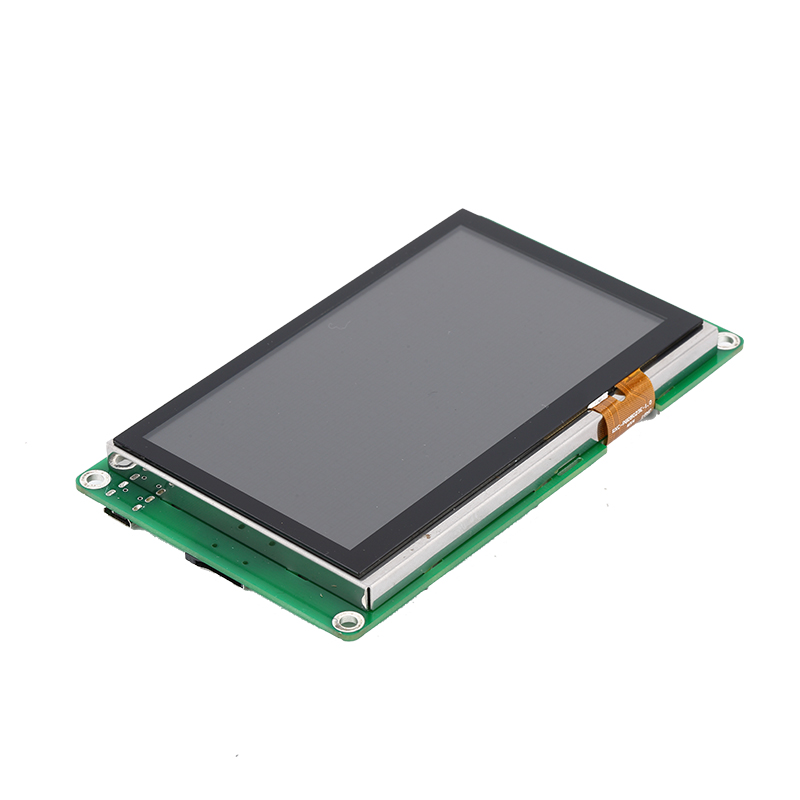

Kingtech PV050800480-HMI Board is a 5.0 inch LCD module using IPS TFT-LCD technology.

Item 5.0inch 800×480 with capactive touch with HMI board
Model No. PV050800480-HMI Board
Resolution  800×480

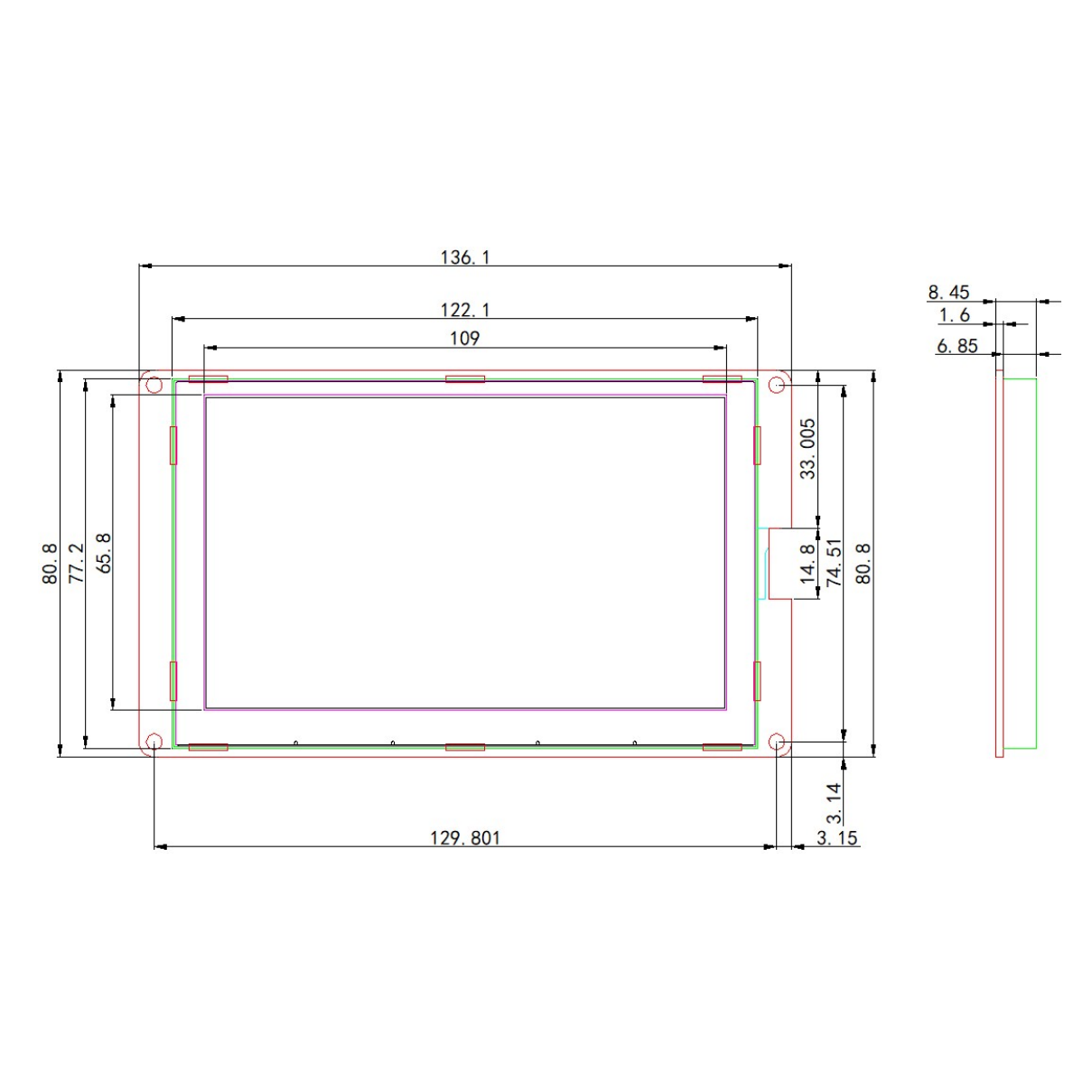

Outline Dimension (mm) 136.1*80.8*8.45
Active Area (mm) 109*65.8
Viewing Angle All
Brightness 300nits
Interface USB/UART
Backlight 8*3LED
Pin nums 20pins
Driving IC FT813+ST7265/FT5426
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Touch screen without
Application  industrial,meter, camera,medical, outdoor device,Security device,Farm machine,etc

For product pricing,customization,or other inquiries:

INQUIRY

Share to:

  1. 5.0inch 800*480/WVGA display
  2. High brightness/Sunlight readable/Outdoor/300~1000nits
  3. Stable supply
  4. All/Wide/Full/IPS viewing angle
  5. UART/USB interfaces
  6. HMI board/Single convert board
  7. With capacitive touch
