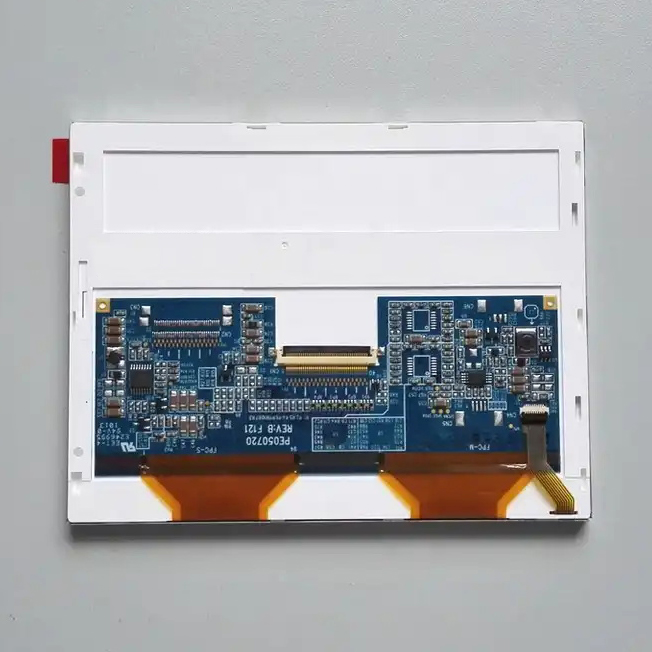

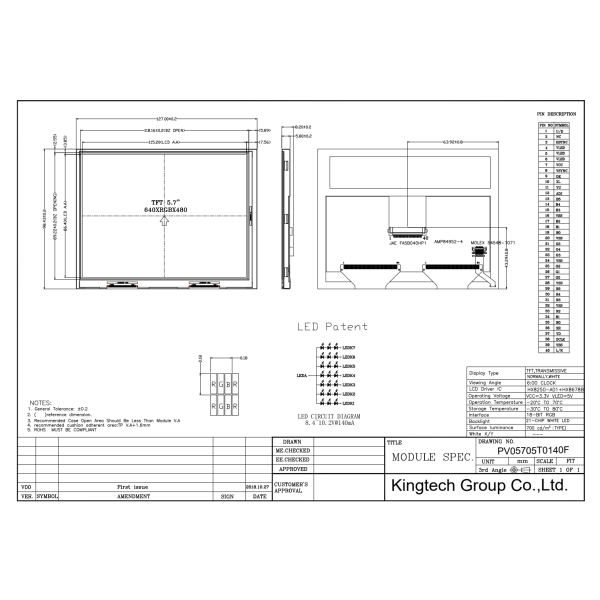

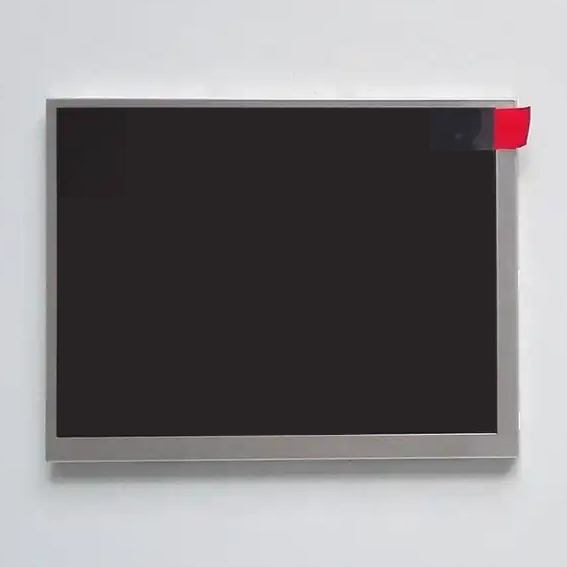

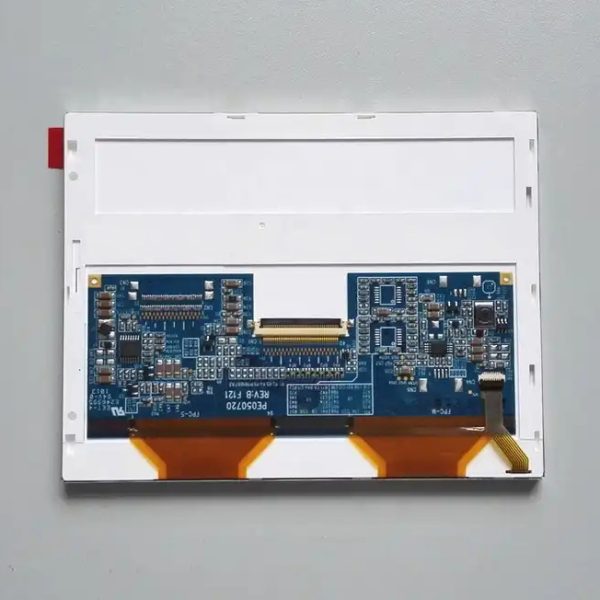

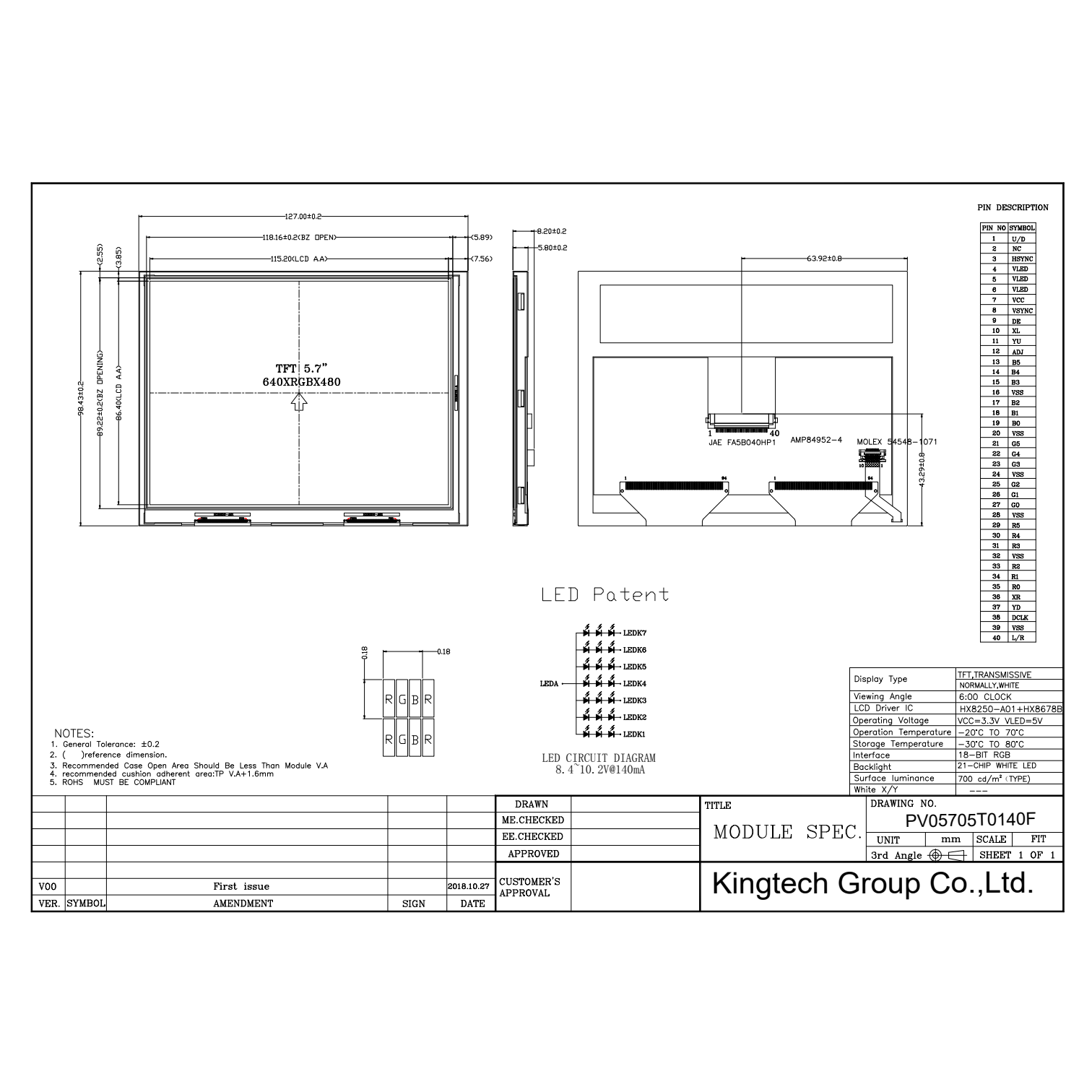

Kingtech PV05705T0140F is a 5.7 inch 640×480 dots LCD module
| Item | 5.7inch 640*480 LCD with resistive touch LCD module |
| Model No. | PV05705T0140F |
| Resolution | 640*480 |
| Outline Dimension (mm) | 127.0*98.43*5.80 |
| Active Area (mm) | 115.20*86.40 |
| Viewing Angle | 6 O’clock |
| Brightness | 700nits |
| Interface | 18bit RGB |
| Backlight | 3*7LED |
| Driving IC | HX8250-A01*2+HX8678A |
| PIN No. | 40 |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
| Touch screen | Resisitive touch and capacitive touch optional |
| Application | Industrial, Medical, Smart Home, Home appliance, Meter, Outdoor |
For product pricing,customization,or other inquiries:
Share to:
- 5.7 inch 640×480 LCD with resistive touch
- 6 o’clock
- High brightness/Sunlight readable/Outdoor
- Support RGB interface.
- Resistive and capacitive touch can be customized
