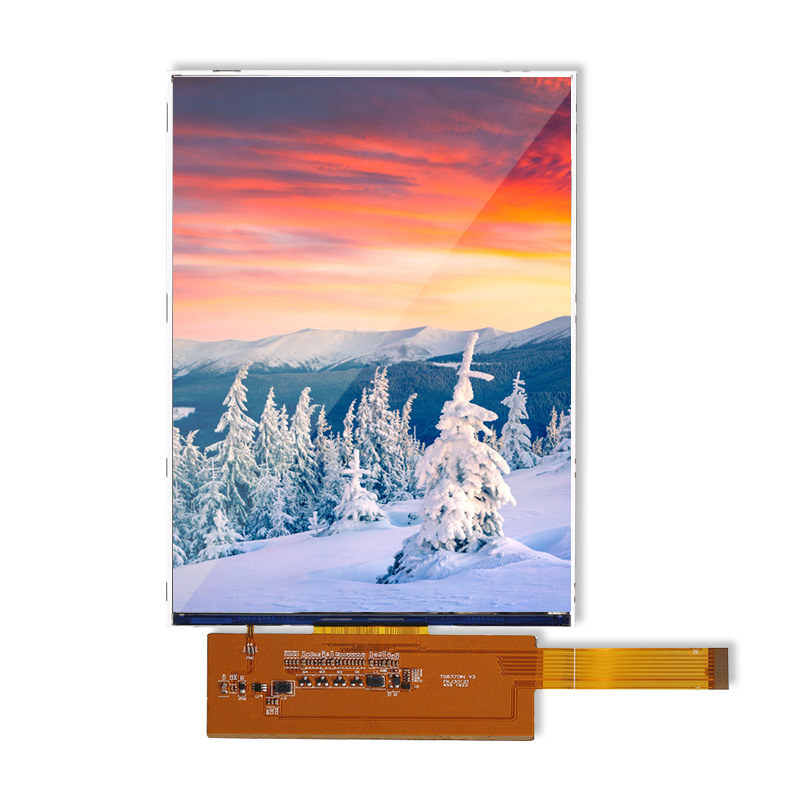

Kingtech PV07039T0240Q-CO is a 7 inch LCD module 1200×1920 resolution FHD
| Item | 7.0 inch IPS FHD LCD module with CTP |
| Model No. | PV07039T0240Q-CO |
| Resolution | 1200*1920 |

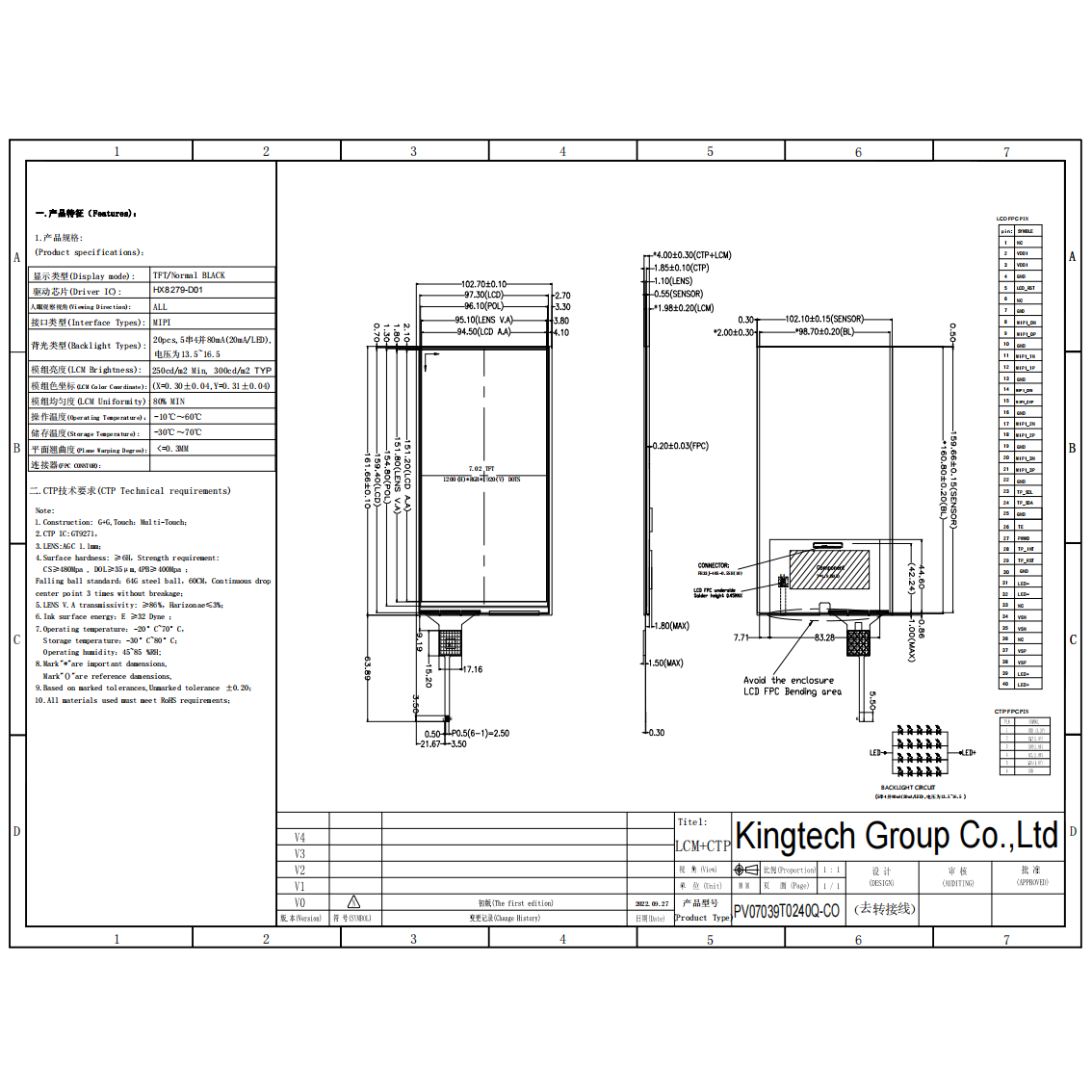

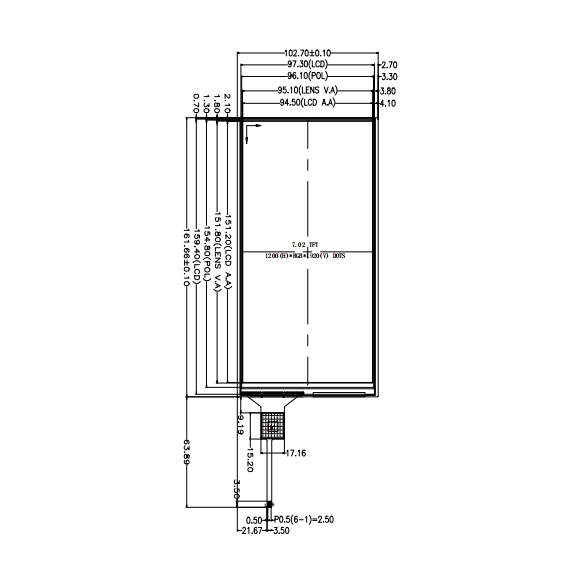

| Outline Dimension (mm) | 102.70*161.66*4.01 |
| Active Area (mm) | 94.50*151.20 |
| Viewing Angle | IPS |
| Brightness | 300nits |
| Interface | MIPI |
| Backlight | 5*4LED |
| Driving IC | HX8279 |
| PIN No. | 40 |
| Operating Temperature | -10~60C |
| Storage Temperature | -30~70C |
| Touch screen | Optional |
| Application | Tablet PC, consumer Electronics, 5G device,Digital photo frame |
For product pricing,customization,or other inquiries:
Share to:
- FHD resolution 1200×1920
- Portrait, vertical shaped
- Full/Wide/All viewing angle
- With CTP available
