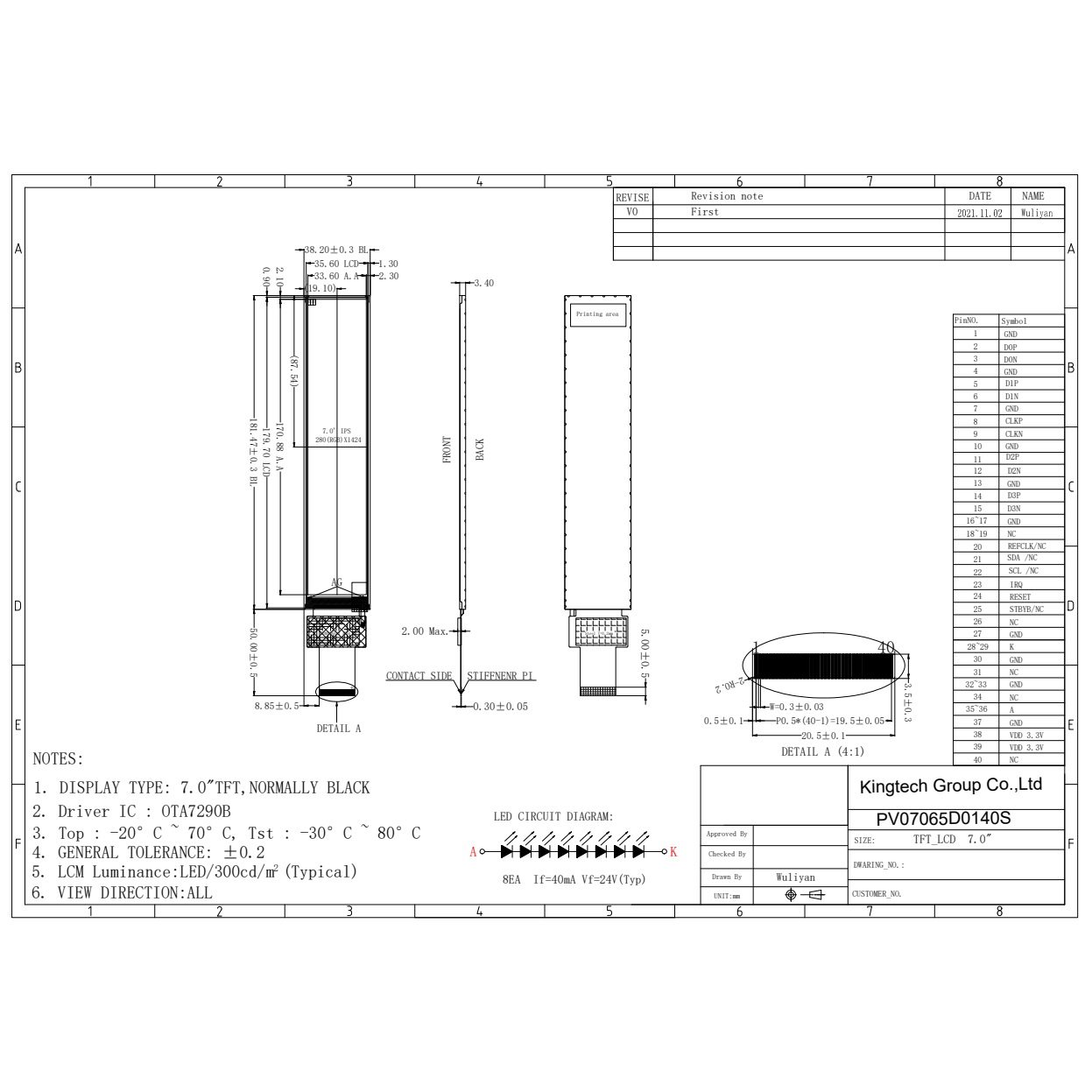

Kingtech PV07065D0140S is a unique portrait 7 inch bar type TFT LCD display with 280*1424
| Item | 7.0 inch TFT 280*1424 bar type module display |
| Model No. | PV07065D0140S |
| Resolution | 280*1424 |
| Outline Dimension (mm) | 38.20*181.47*3.40 |
| Active Area (mm) | 33.60*170.88 |
| Viewing Angle | All |
| Brightness | 300nits |
| Interface | MIPI |
| Backlight | 8*1LED |
| Driving IC | OTA7290B |
| PIN No. | 40 |
| Operating Temperature | -20~70 |
| Storage Temperature | -30~80 |
| Touch screen | Support capacitive touch and resistive touch custom |
| Application | Advertising display, medical, automotive, industrial application, IOT, home application. |
For product pricing,customization,or other inquiries:
Share to:
- 7.0 inch TFTLCD display
- 280*1424 bar type LCD
- Stable supply
- Full/IPS/Wide/All Viewing angle
- MIPI Interface
- 300nits brightness
- Touch Optional
- Advertising display, industrial application, and IOT, medical, automotive, home application.
