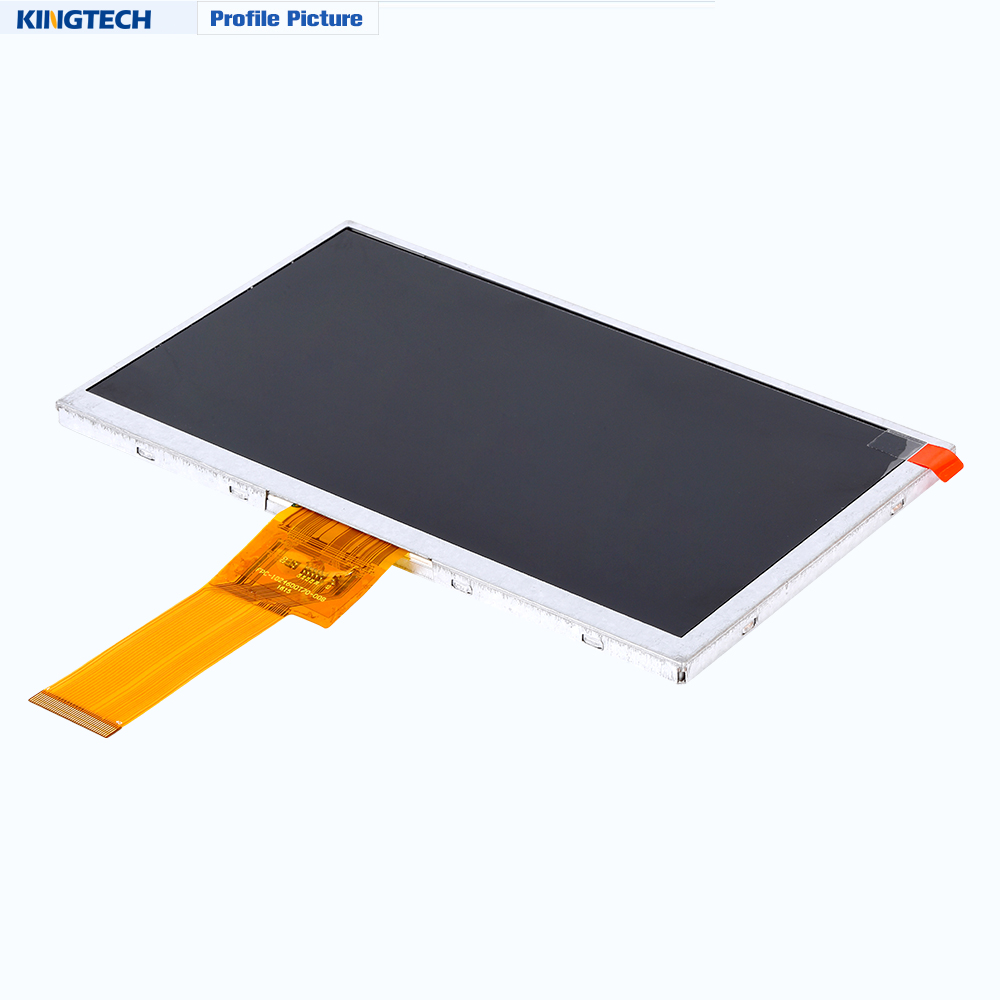

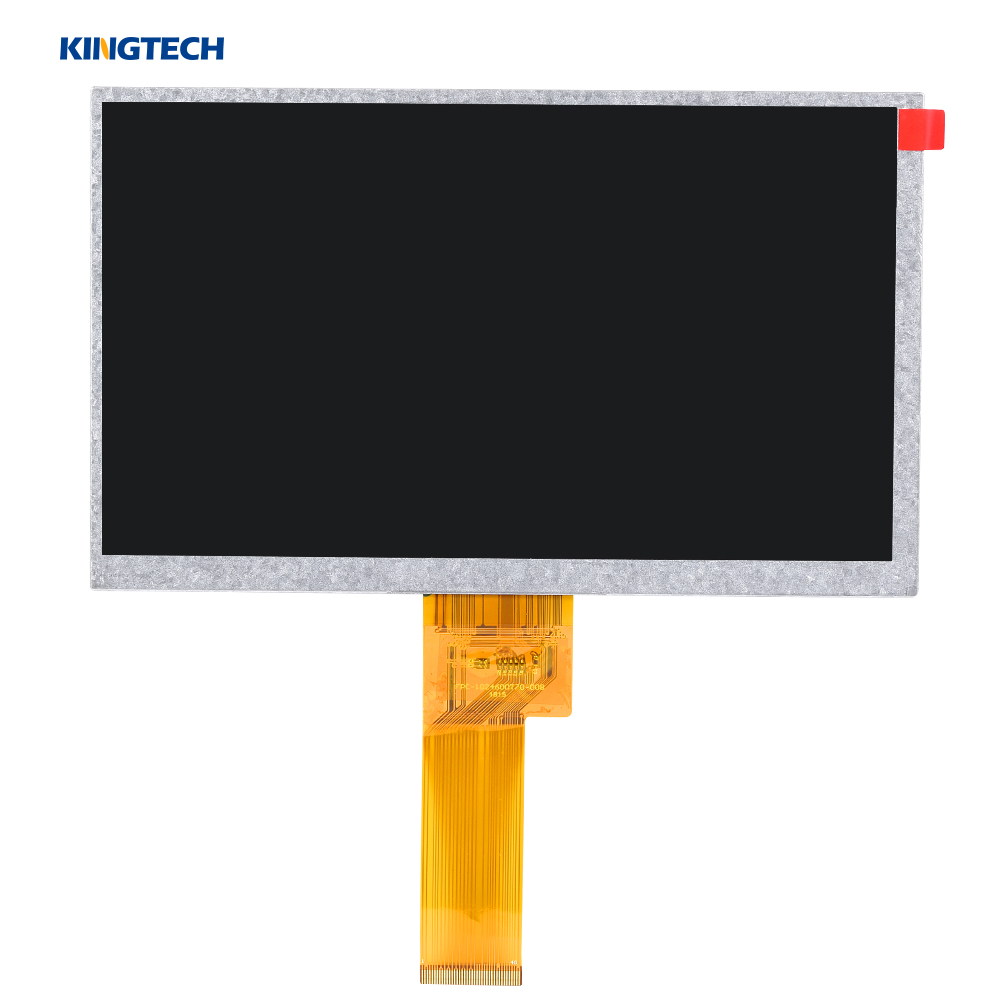

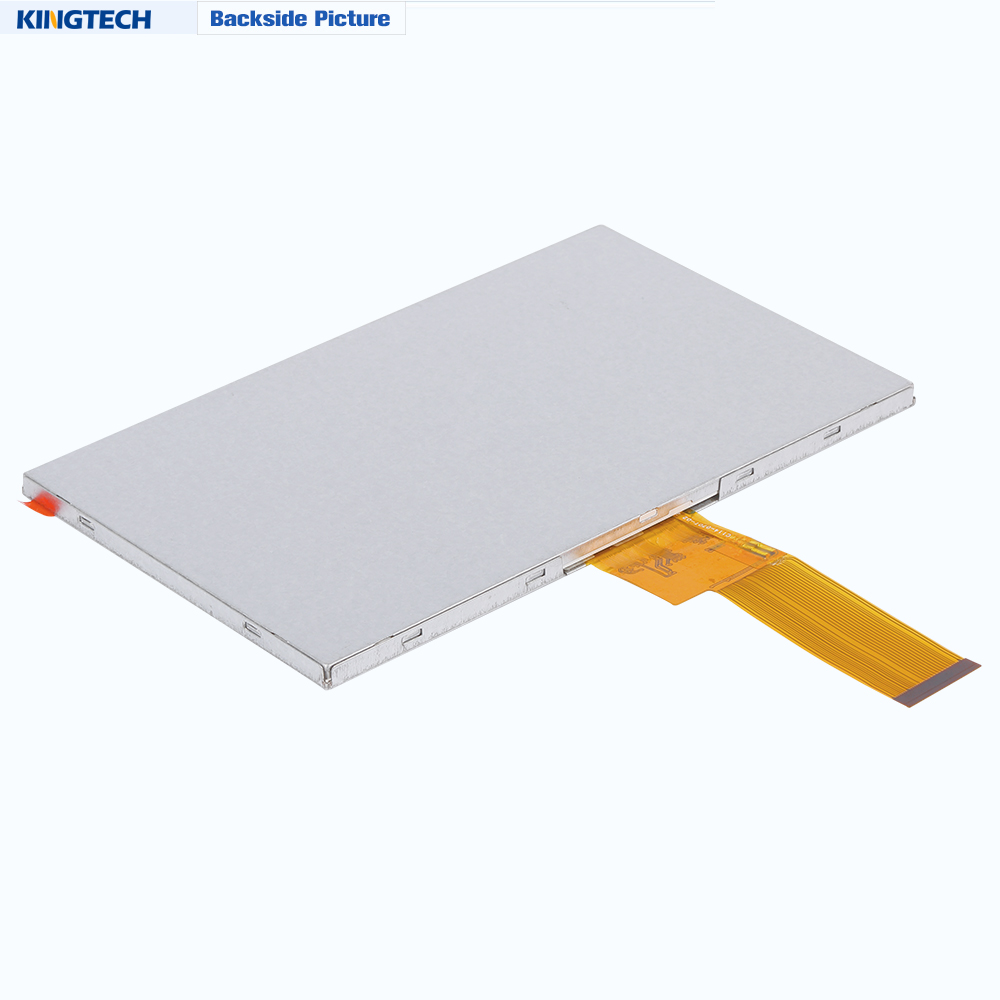

Kingtech wide temperature 7.0 inch LCD module IPS TFT LCD
| Item | Ultra Wide temp7.0 inch IPS LCD module |
| Model No. | PV07064Y0140R |
| Resolution | 1280*768 |

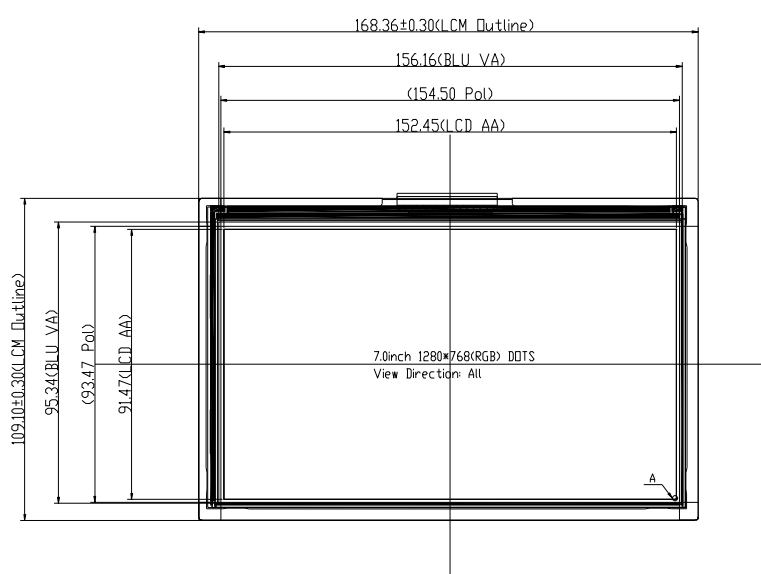

| Outline Dimension (mm) | 168.36*109.10*6.03 |
| Active Area (mm) | 152.448*91.4688 |
| Viewing Angle | All |
| Brightness | 1000nits |
| Interface | LVDS |
| Backlight | 8*3LED |
| Driving IC | HX8664-B+HX8264-E |
| PIN No. | 40 |
| Operating Temperature | -30~85C |
| Storage Temperature | -40~90C |
| Touch screen | Optional |
| Application | Outdoor application, Surveillance video,Transportation Camera,Truck, Automotive, Advertising, Ship |
For product pricing,customization,or other inquiries:
Share to:
- Wide temperature-30-85C, Storage temperature -40-90C.
- High brightness/Outdoor/Sunlight readable
- 7inch 1280*768 high definition
- LVDS interface
- Full/All/Free/Wide/IPS Viewing angle
- Designed for outdoor application, Automotive
- Life-time 50000h
