7.0-inch IPS TFT LCD Display Module – 1024×600 Resolution

Model No.: PV07040T0240R
Resolution: 800×1280
Interface: MIPI VIDEO MODE
Pin No.: 40

Technical Specifications:

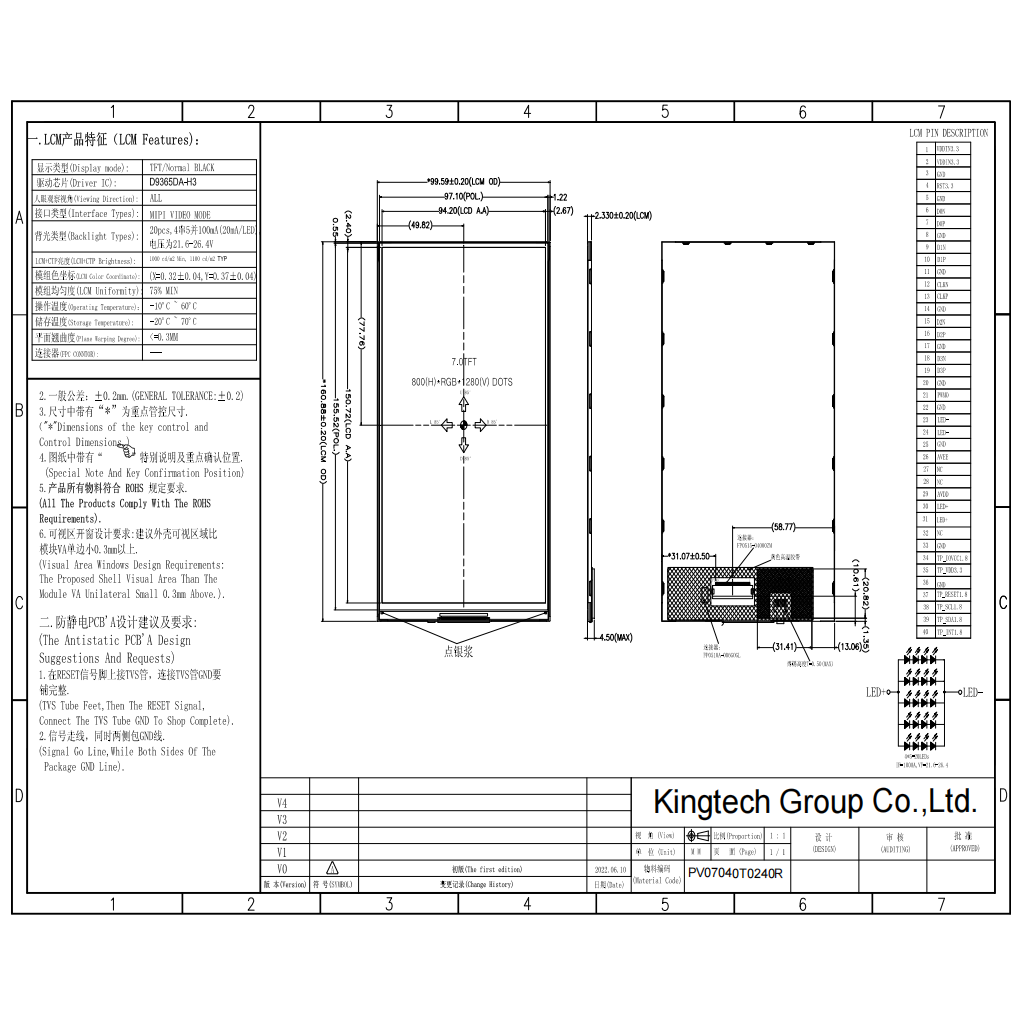

  • Outline Dimension: 99.59mm (L) x 160.88mm (W) x 2.33mm (H)

  • Active Area: 94.2mm x 150.72mm

  • Brightness: 1000 nits

  • Viewing Angle: All directions (IPS)

  • Interface: MIPI VIDEO MODE

  • Backlight: 4×5 LEDs

  • Driving IC: JD9365DA-H3

  • Pin Number: 40

  • Operating Temperature: -10°C to 60°C

  • Storage Temperature: -20°C to 70°C

  • Touch Screen: No capacitive touch screen

For product pricing,customization,or other inquiries:

Share to:

Product Features:

  • High-Resolution Display: This 7.0-inch IPS TFT LCD module features a 800×1280 resolution, offering clear and vibrant visuals. With its compact size and impressive resolution, it’s ideal for consumer electronics and various digital signage applications.

  • Excellent Brightness: With a 1000nits brightness, the display ensures excellent visibility even in bright lighting conditions, making it perfect for outdoor and high-traffic environments such as advertising displays and elevators.

  • Wide Viewing Angle: The IPS technology guarantees wide viewing angles with consistent color and clarity from all directions. Whether for public-facing signage or tablet devices, this display ensures an optimal viewing experience.

  • Durable and Reliable: Built to withstand a wide temperature range, this module operates effectively in environments with temperatures from -10°C to 60°C, making it suitable for both indoor and outdoor use.

  • Energy-Efficient: The module’s backlight consists of 4×5 LEDs, ensuring both high brightness and energy efficiency, ideal for applications where power consumption is important.

  • Versatile Applications: This module is suitable for a wide range of industries and use cases, including:

    • Consumer Electronics: For use in portable devices and tablets.

    • Advertising Displays: High brightness and wide viewing angles make it ideal for dynamic content display in public areas.

    • Elevators: For clear, visible messaging in busy elevator environments.

    • Security Devices: Used in security systems where visual clarity is critical.

    • Cash Registers: Can be integrated into POS systems for enhanced user interaction.

    • The 7.0-inch IPS TFT LCD Display Module is an ideal solution for businesses in need of a high-quality, versatile display for a range of applications. With exceptional brightness, wide viewing angles, and reliable performance across various temperatures, this module is perfect for digital signage, consumer electronics, and more.

      Contact us for bulk orders and custom options tailored to your specific needs.
