IPS 4.3 inch 480×272 RGB interface ST7283 IC 640 nits LCD display with resistive touch
| Item | 4.3 inch IPS touch screen TFT LCD |
| Model No | PV043014HZ40P-R |
| Resolution | 480×272 |
| Outline Dimension | 105.5*67.2*4.1 |
| Active Area(mm) | 95.04*53.86 |
| Interface | RGB Interface |
| Viewing Angle | All |
| Driver IC | ST7283 |
| Display Mode | Transmissive / Normally Black |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Brightness | 640nits |
| Touch screen | resistive touch screen |
For product pricing,customization,or other inquiries:
Share to:
4.3 inch 480×272 IPS RGB interface 640nits high brightness touch lcd display
1. PV043014HZ40P-R mainly application for Industrial ，medical equipment .
2.It with 480×272 resolution , 640nit brightness ,RGB interface , ST7283 driver IC , existing resistive touch panel .
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

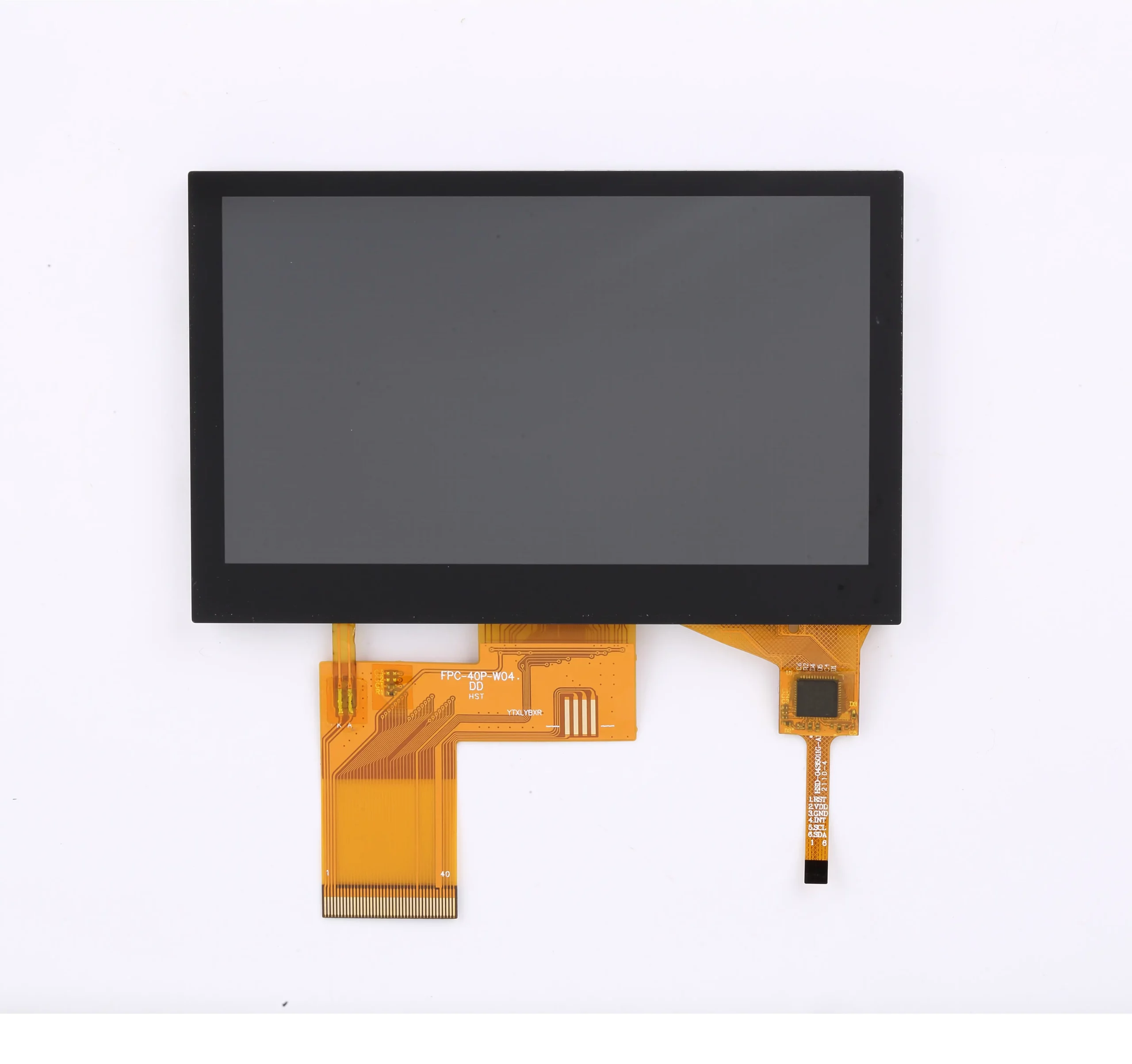

4.3 inch IPS resistive touch front view

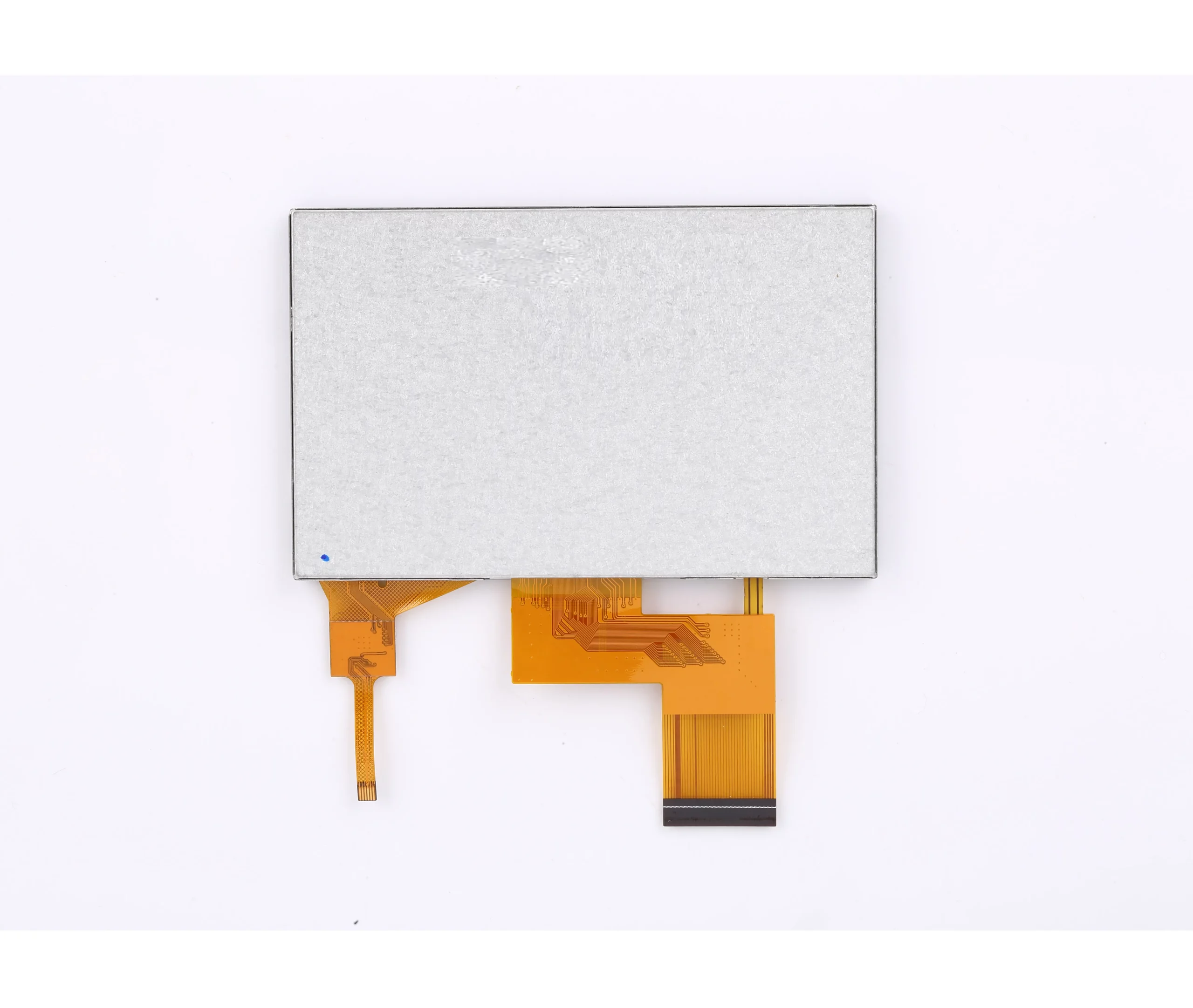

4.3 inch high brightness resistive touch back view
