Sunlight readable5.7 inch 640×480 RGB interface 1100nist TFT LCD module
| Item | 5.7” 640×480 TFT LCD Display |
| Model No | PV05702YP40C |
| Resolution | 640×480 |
| Outline Dimension | 127.00*98.43*8.20 mm |
| Active Area(mm) | 115.20(W)x86.40(H) |
| Interface | 18-BIT RGB |
| Viewing Angle | 6 O’clock |
| Driving IC | HX8250-A+HX8678-B |
| Operating Temperature | -20 to +70℃ |
| Storage Temperature | -30 to +80℃ |
| Brightness | 1100nits |
| Touch screen | Can custom capacitive touchscreen |
| Display Mode | TN / Transmissive / Normally white |
For product pricing,customization,or other inquiries:
Share to:
High brightness 5.7 inch 640×480 VGA resolution RGB 1100nits lcd display
1.PV05701YP40B mainly application for Industrial ，medical equipment .
2.It with 640×480 resolution/ VGA , 1100nits sunlight readable , 18bit RGB interface, TN/ 6 o’clock.
3.It also can custom touch panel as customer ‘s requirement .
4.It is A grade product , the good quality well use for Industrial ，medical application .

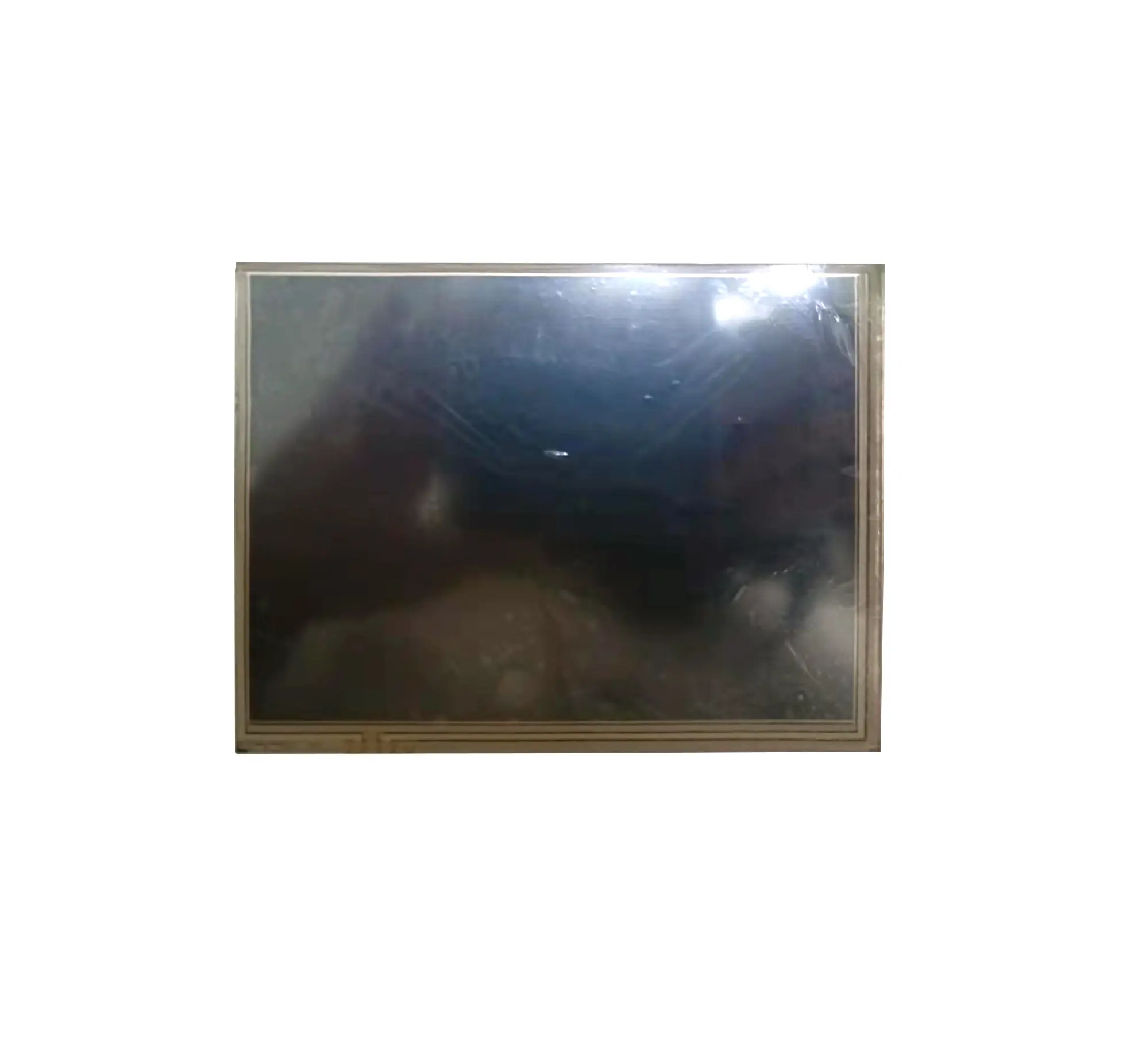

5.7” 640×480 TFT LCD Display Front view

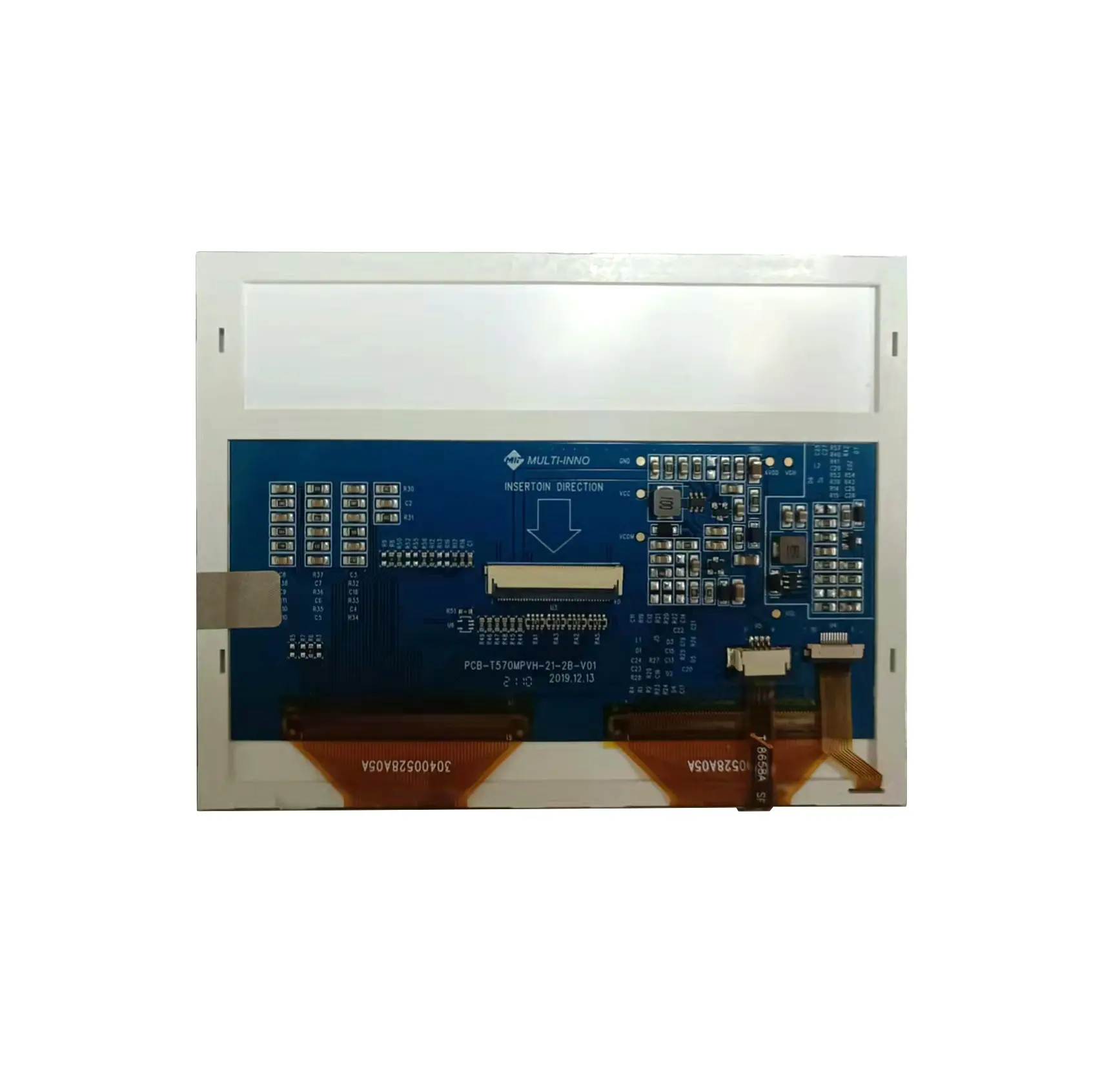

5.7” 640×480 TFT LCD Display back view
