Wide temperature screen 7 inch 800×480 LVDS IPS 800nits brightness LCD module
| Item | 7inch 800×480 IPS wide termperature display |
| Model No | PV07032LSB30H |
| Resolution | 800×480 |
| Outline Dimension | 166.37*105.39*6.60 mm |
| Active Area(mm) | 152.40*91.44 mm |
| Interface | LVDS Interface |
| Viewing Angle | All |
| LED life | 30000h |
| Display Mode | TN / Transmissive / Normally Black |
| Operating Temperature | -30℃~85℃ |
| Storage Temperature | -30℃~85℃ |
| Brightness | 800nits |
| Touch screen | Can custom capacitive touchscreen |
For product pricing,customization,or other inquiries:
Share to:
7 inch 800×480 high brightness wide temperature LVDS interface IPS TFT LCD display
1. PV07032LSB30H mainly application for Industrial ，medical equipment .
2. It with 800×480 resolution , High brightness/Sunlight readable/outdoor/800nits, LVDS interface, Wide temperature/-30℃~+85℃, IPS / Free / Full / All / Wide viewing angle, existing capacitive touch panel .
3. It also can custom touch panel as customer ‘s requirement .
4. It is A grade product , the good quality well use for Industrial ，medical application.

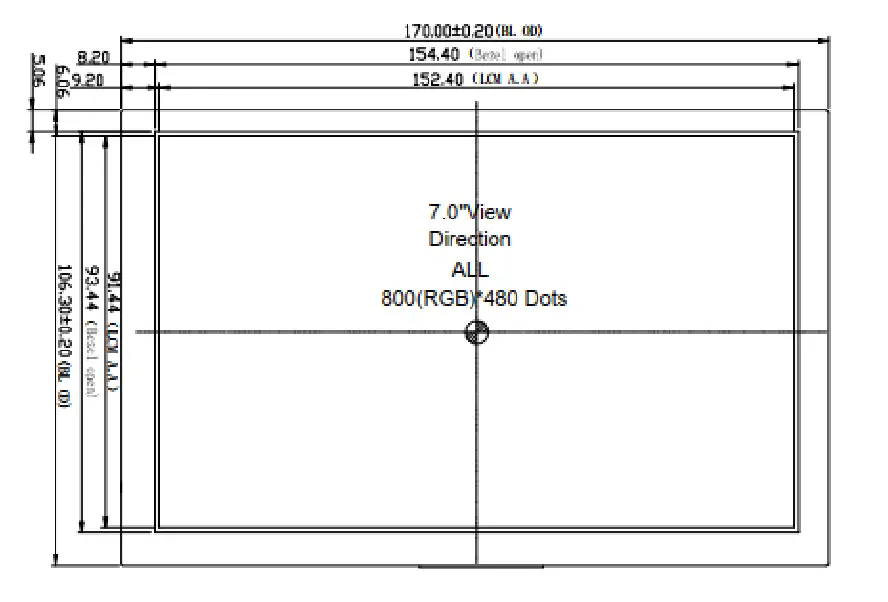

7” wide temperature screen front view

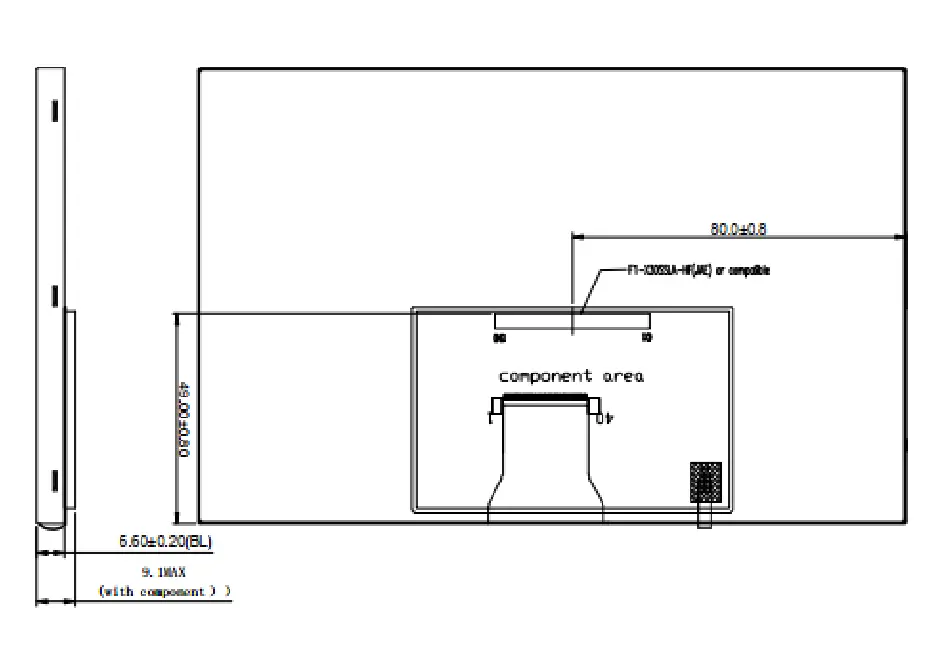

7” hight brightness screen back view
